R&S®ESME 宽带监测接收机

R&S®ESME 宽带监测接收机

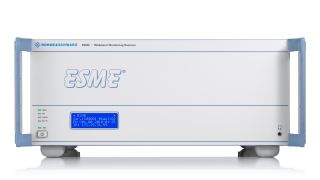

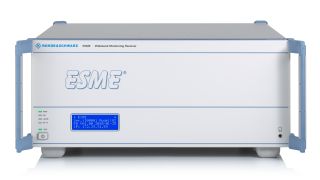

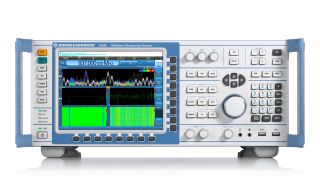

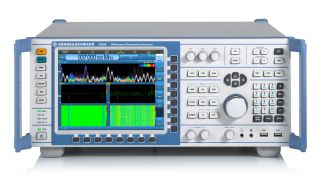

R&S®ESME 宽带监测接收机，前视图
R&S®ESME 宽带监测接收机，前视图
显示更多详细信息
R&S®ESME 宽带监测接收机
R&S®ESME 宽带监测接收机，前视图
R&S®ESME 宽带监测接收机，前视图
显示更多详细信息
R&S®ESME 宽带监测接收机

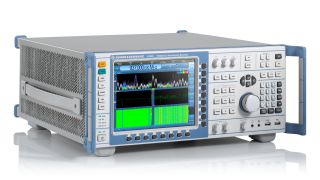

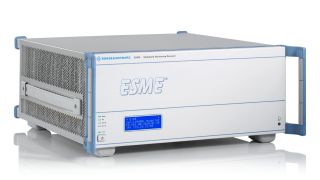

R&S®ESME 宽带监测接收机，侧视图
R&S®ESME 宽带监测接收机，侧视图
显示更多详细信息
R&S®ESME 宽带监测接收机

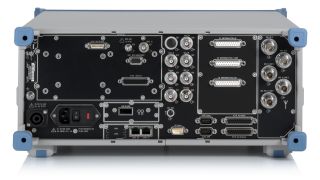

R&S®ESME 宽带监测接收机，后视图
R&S®ESME 宽带监测接收机，后视图
显示更多详细信息
R&S®ESME 宽带监测接收机
R&S®ESME 宽带监测接收机，前视图
R&S®ESME 宽带监测接收机，前视图
显示更多详细信息
R&S®ESME 宽带监测接收机
R&S®ESME 宽带监测接收机，前视图
R&S®ESME 宽带监测接收机，前视图
显示更多详细信息
R&S®ESME 宽带监测接收机
R&S®ESME 宽带监测接收机，侧视图
R&S®ESME 宽带监测接收机，侧视图
显示更多详细信息
R&S®ESME 宽带监测接收机

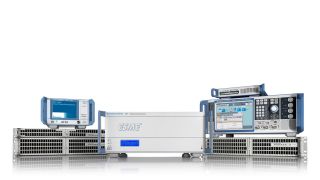

R&S®ESME 宽带监测接收机，主视图
R&S®ESME 宽带监测接收机，主视图
显示更多详细信息

主要特点

  • 8 kHz 至 18 GHz 范围内实现高性能频谱监测（使用选件）
  • 300 kHz 至 8.5 GHz 范围内支持准确的到达角 (AOA) 测向（使用选件）
  • 经过优化以测量密集频谱环境中的微弱信号
  • 先进的频域和时域信号测量（选件）
  • 性能和设备测试符合 ITU 建议书
获取报价

即使在高度密集的信号环境中也具有出色的射频性能

无论是用于符合 ITU 标准的频谱监测与无线电定位，还是生成多个高精度数字数据流以进行进一步分析和内容制作，R&S®ESME 宽带监测接收机都能提供可靠性能，即使在高密度信号环境中也是如此。

快速链接

特性和优点

在密集的频谱环境中提供卓越的射频性能

R&S®ESME 出色地平衡线性度和灵敏度，以便可靠检测密集频谱中强干扰信号中的微弱信号。接收机在整个频率范围内应用滤波器组和可调谐带通滤波器进行预选滤波，有助于防止强带外信号引起互调。

符合 ITU 标准的测量

R&S®ESME 的性能符合所有相关的 ITU-R 建议书。R&S®ESME-IM 选件可用于符合 ITU 标准的信号参数测量，例如带宽、中心频率和调制深度。


先进的信号测量

R&S®ESME 具备完整全面的工具套件，可用于任何信号测量任务：

  • 在零跨度模式下同步进行时域和频域分析
  • 彩色频谱可检测叠加的脉冲信号
  • 迹线记录和回放
  • 在各种触发条件下自动记录和回放 I/Q 数据
  • 使用 R&S®CA120 的并行多通道信号分析和检测；

测向和无线电定位

R&S®ESME 适用于准确测向或无线电定位：

  • 使用 R&S®ADDx 单通道测向天线进行准确的到达角 (AOA) 测向
  • 地图测绘功能支持自动化三角测量
  • AOA 测向误差校正
  • 内部 GNSS 模块支持 TDOA
