R&S®CA100 基于电脑的信号分析和信号处理软件

检测、分类、解调和解码

R&S®CA100 基于电脑的信号分析和信号处理软件
打开灯箱

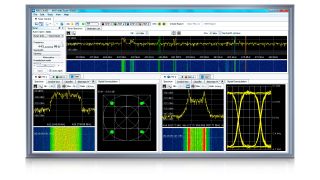

R&S®CA100 基于电脑的信号分析和处理软件,前视图

主要特点

  • 自动和手动截取整个信号场景
  • 可靠的分类器和广泛的信号处理库
  • 宽带信号处理
  • 机器学习高速频谱形状搜索
  • 集成第三方模块

基于电脑的信号分析和信号处理软件

R&S®CA100 独立式软件解决方案适用于检测、分类和处理无线电通信信号。R&S®CA100 支持各种各样的应用,从手动处理和分析单一信号,到自动识别和处理宽带信号场景中的信号。

特性和优点

自动分类

支持操作人员的日常工作

检测到未知信号时,R&S®CA100 可提供一个功能强大的分类器,以支持用户自动检测和识别调制类型与发射系统。在监测应用中,分类器能够识别已知信号类型,或者将信号报告为“未知”。

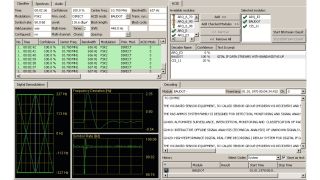

系统分类和可视化
打开灯箱

系统分类和可视化

功能强大的 R&S®CA100 分类器适用于高频和甚高频/特高频频率范围,能够识别调制类型和发射系统。

机器学习

高速频谱形状搜索

频谱形状检测器设计用于通过频谱形态匹配来搜索已知和未知信号。它的搜索速度非常快,并且可以定制以按照用户规定搜索感兴趣的信号。匹配算法的决策基于综合性决策矩阵中的许多准则,该决策矩阵能够可靠评估输入信号和形状描述集合间的相似性。

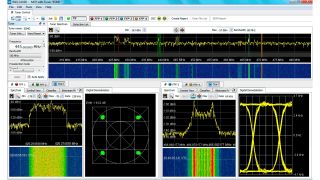

包含 4 个并行通道的图形用户界面截图
打开灯箱

包含 4 个并行通道的图形用户界面截图

在 R&S®ESMD 宽带监测接收机提供的 80 MHz 信号场景中,并行检测、分类、解调和解码 4 路信号。

基于规则的信号处理

自动化信号处理,减少操作人员的工作量

R&S®CA100 将信号检测与可配置、基于规则、无损的自动化通信信号处理(分类、解调、解码、内容恢复、记录)相结合。

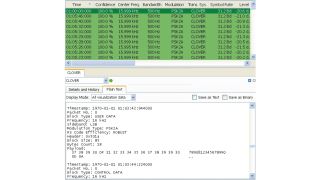

分类、解调和解码
打开灯箱

分类、解调和解码

R&S®CA100 包含丰富的解调器和解码器库。

开放接口

特定用户扩展

R&S®CA100 能够集成用户自编程的信号处理模块,例如接收机驱动程序、解调器和解码器。用户可以在解决方案中独立运用已有的专业技能。

可用选项

单通道
产品
描述
R&S®CA100-U

订单号码 4102.0062.02

描述

带 USB 加密狗的 R&S®CA100 许可

R&S®CA100-S

订单号码 4102.0079.02

描述

带 SD 卡加密狗的 R&S®CA100 许可

R&S®CA100-M

订单号码 4102.0085.02

描述

带迷你 USB 加密狗的 R&S®CA100 许可

R&S®CA100DM

订单号码 4102.0091.02

描述

数字信号处理

R&S®CA100CL

订单号码 4102.0104.02

描述

分类

需要 R&S®CA100DM 选件

R&S®CA100DEC

订单号码 4102.0110.02

描述

解码器包专业版

需要 R&S®CA100DM 选件

R&S®CA100PIII

订单号码 4102.0133.02

描述

PACTOR II 和 PACTOR III 解码 

需要 R&S®CA100DM 选件

R&S®CA100CV

订单号码 4102.0140.02

描述

CLOVER 解码

需要 R&S®CA100DM 选件

R&S®CA100CO

订单号码 4102.0156.02

描述

CODAN 3012 解码

需要 R&S®CA100DM 选件

R&S®CA100CDT

订单号码 4102.0256.02

描述

相关检测器

需要 R&S®CA100DM 选件

R&S®CA100WSN

订单号码 4102.0240.02

描述

宽带信号在线分类

需要 R&S®CA100CL、R&S®ESME/ESMD 或 R&S®DDF260/DDF255,配备相应的 R&S®xx-RR 选件

多通道
产品
描述
R&S®CA100MCP

订单号码 4102.0179.02

描述

多通道处理

R&S®CA100DSC

订单号码 4102.0185.02

描述

检测、搜索和分类

固定频率信号

R&S®CA100SDT

订单号码 4102.0204.02

描述

频谱形状检测器

需要 R&S®CA100DSC 选件

R&S®CA100AP

订单号码 4102.0191.02

描述

自动处理检测到的信号

需要 R&S®CA100DSC 选件

分析符合 ITU-R SM.1600
产品
描述
R&S®CA100IS

订单号码 4102.0210.02

描述

信号场景分析

符合 ITU-R SM.1600

培训
产品
描述
R&S®CA100-TI

订单号码 3637.2518.02

描述

R&S®CA100 简介

1 天(5 小时)

R&S®CA100-TO

订单号码 3637.2682.02

描述

R&S®CA100 操作人员培训

5 天

R&S®CA100-TS

订单号码 3637.3895.02

描述

R&S®CA100 操作人员培训 ITU-R SM.1600

3 天

R&S®CA1X0-TTU

订单号码 3637.2482.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方调谐器。5 天

R&S®CA1X0-TDM

订单号码 3637.2499.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方解调器。4 天

R&S®CA1X0-TDC

订单号码 3637.2501.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方解码器。5 天

R&S®CA1X0-SAF

订单号码 3637.4685.02

描述

信号分析基本原理培训

5 天
