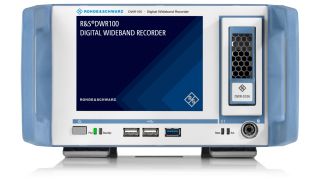

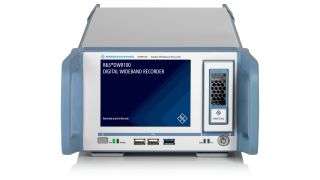

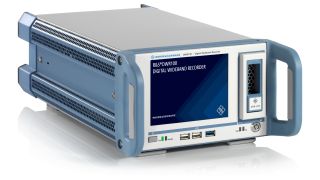

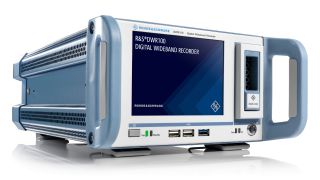

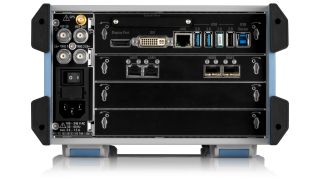

R&S®DWR100 Digital wideband recorder, Front view R&S®DWR100 Digital wideband recorder, Front view R&S®DWR100 Digital wideband recorder, Side view R&S®DWR100 Digital wideband recorder, Hero view R&S®DWR100 Digital wideband recorder, Back view R&S®DWR100 Digital wideband recorder, Back view R&S®DWR100 Digital wideband recorder, Side view

主要特点

  • 并行记录多达 256 种不同的数据类型
  • 通过 1 Gbit 接口,记录和回放带宽最高可达 10 MHz I/Q
  • 通过 10 Gbit 接口,记录和回放带宽最高可达 40 MHz I/Q
  • 仪器体积紧凑:高度仅为 3 HU,尺寸仅为 ½ 19"
  • 可移动的服务器级 SSD 存储容量:3.2 TB、6.4 TB 和 15 TB

记录和回放 I/Q 数据,最高 40 MHz 带宽

在战术和战略侦察期间没有足够的时间或资源来分析或处理实时射频场景时,R&S®DWR100 数字宽带记录器是理想的数据存储解决方案。

这款仪器紧凑轻巧,可用于固定和移动解决方案。记录数据存储在易于更换的服务器级固态驱动器 (SSD) 中。
多通道多客户端记录器可用于并行记录多种数据格式。
记录器提供循环缓冲区功能,可用于分析记录的信号。

特性和优点

记录:多客户端和多通道

并行执行不同的记录任务

多客户端功能支持许多操作人员使用单个记录器。记录器可以并行执行多个记录和回放任务。可以使用多个传感器、传感器中集成的数字下变频器或来自 R&S®CA120 多通道信号分析软件的结果数据并行处理多项记录。

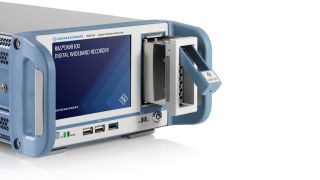

紧凑轻巧的记录器,带可移动 SSD

最高 15 TB SSD 内存包

R&S®DWR100 数字宽带记录器重量轻(不足 6.5 kg),功耗低(小于 150 W)。它的高度仅为 3 HU,尺寸仅为 ½ 19",便于和紧凑的罗德与施瓦茨接收机一起安装在机架中。数据存储在可出于运输或安全原因而轻松移动的 SSD 中。
R&S®DWR100 具备不同的存储容量,最高可达服务器级 15 TB,可在高温、冲击、振动和潮湿等恶劣的操作条件下使用。

打开灯箱

对记录文件进行后处理

支持多种功能以作进一步信号分析和后处理

  • R&S®CA100 基于电脑的信号分析和信号处理软件可用于在线处理
  • R&S®CA120 多通道信号分析软件可用于在线处理
  • R&S®CA210 信号分析软件可用于技术性离线分析
  • R&S®RAMON 无线电监测软件
  • 选定的罗德与施瓦茨接收机和测向机

可用选项

存储媒体
产品
描述
R&S®DWR-S103

订单号码 1525.8293.50

描述

固态驱动器,3.2 TB 存储容量

R&S®DWR-S106

订单号码 1525.8293.60

描述

固态驱动器,6.4 TB 存储容量

R&S®DWR-S115

订单号码 1525.8293.65

描述

固态驱动器,15 TB 存储容量

接口
产品
描述
R&S®DWR-10G

订单号码 1525.8264.50

描述

记录和回放带宽高达 40 MHz

通用附件
产品
描述
R&S®GX460-CCG

订单号码 4094.8635.02

描述

光缆

用于 10 Gbit 接口,包括两个光收发信机,长度:5 m

R&S®GX460-OCG

订单号码 4094.8641.02

描述

光缆

用于 10 Gbit 接口,包括两个光收发信机,长度:20 m
