R&S®CA120 多通道信号分析软件

自动检测、分类、解调和解码

R&S®CA120 多通道信号分析软件
打开灯箱

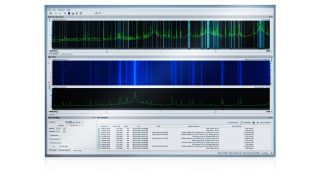

R&S®CA120 多通道信号分析软件,前视图

主要特点

  • 自动和手动截取整个信号场景
  • 可靠的分类器和广泛的信号处理库
  • 处理宽带信号和频率捷变信号场景
  • 机器学习高速频谱形状搜索
  • 集成第三方系统/集成第三方模块

在线分析通信信号

R&S®CA120 是一款灵活的自动化多通道解决方案,可用于检测、分类和处理无线电通信信号。R&S®CA120 支持各种各样的应用,从手动处理和分析单一信号,到全自动化识别和处理宽带信号场景中的信号。

特性和优点

自动分类

支持操作人员的日常工作

检测到未知信号时,R&S®CA120 为用户提供一个功能强大的分类器,以便自动检测和识别调制类型与发射系统。在监测应用中,分类器能够检测已知信号类型,并将未识别出的任何信号报告为“未知”。

图形用户界面截图
打开灯箱

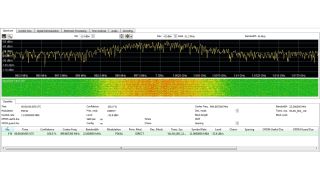

图形用户界面截图

22 MHz 带宽的宽带信号分类。

频率捷变短时信号

在线分析跳频信号场景

R&S®CA120 具有一个功能强大的检测器,能够检测高频和甚高频/特高频频率范围内的短时信号。检测到的短时信号自动进行分析和分类,并与发射系统配置文件进行匹配,还可重组成连续信号。

图形用户界面截图
打开灯箱

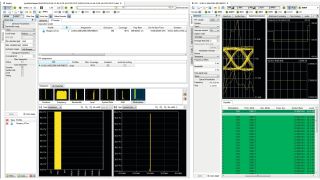

图形用户界面截图

在线检测、分析、重组和解调频率捷变信号。

机器学习

高速频谱形状搜索

频谱形状检测器设计用于通过频谱形态匹配来搜索已知和未知信号。它的搜索速度非常快,并且可以定制以搜索用户规定的感兴趣信号。匹配算法根据综合性决策矩阵中的若干准则作出决策,能够可靠评估输入信号和形状描述集合间的相似性。

图形用户界面截图
打开灯箱

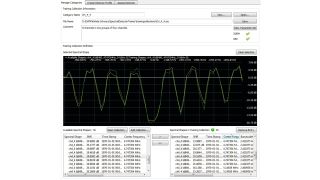

图形用户界面截图

频谱形状检测器训练器。

基于规则的信号处理

自动化信号处理,减少用户工作量

R&S®CA120 将信号检测与可配置、基于规则、无损的自动化通信信号处理(分类、解调、解码、内容恢复、记录)相结合。

开放接口

特定用户扩展

R&S®CA120 能够集成用户自编程的信号处理模块,例如接收机驱动程序、解调器和解码器。因此,用户可以在解决方案中独立运用已有的专业技能。R&S®CA120 能够用作可编程传感器子系统以支持系统集成商使用所有功能,包括检测固定频率和短时信号以及频谱形状检测、分类、解调、解码和记录。

可用选项

处理单元
产品
描述
R&S®CA120PU-S

订单号码 4102.1317.04

描述

信号处理和存储单元

R&S®CA120PU

订单号码 4102.1298.04

描述

信号处理单元

R&S®CA120SPU-S

订单号码 4102.1652.02

描述

服务器机房信号处理和存储单元

R&S®CA120SPU

订单号码 4102.1646.02

描述

服务器机房信号处理单元

单通道
产品
描述
R&S®CA120-U

订单号码 4102.1846.02

描述

带 USB 加密狗的 R&S®CA120 许可

R&S®CA120-M

订单号码 4102.1852.02

描述

带迷你 USB 加密狗的 R&S®CA120 许可

R&S®CA120FFP

订单号码 4102.1069.02

描述

固定频率处理

拦截处理通道;接收机或数字下变频器的 I/Q 数据输入

R&S®CA120DM

订单号码 4102.1075.02

描述

数字信号处理

包含带通用解调器的库

R&S®CA120CL

订单号码 4102.1081.02

描述

分类

自动分类调制类型和传输系统。需要 R&S®CA120DM

R&S®CA120DEC

订单号码 4102.1098.02

描述

解码器包专业版

高频和甚高频/特高频传输系统解码。需要 R&S®CA120DM

R&S®CA120PIII

订单号码 4102.1117.02

描述

PACTOR II 和 PACTOR III 解码 

PACTOR II 和 PACTOR III 信号解码。需要 R&S®CA120DM

R&S®CA120CV

订单号码 4102.1123.02

描述

CLOVER 解码

CLOVER 2 和 CLOVER 2000 信号解码。需要 R&S®CA120DM

R&S®CA120CO

订单号码 4102.1130.02

描述

CODAN 3012 解码

CODAN 3012 信号解码。需要 R&S®CA120DM

R&S®CA120CDT

订单号码 4102.1223.02

描述

相关检测器

高性能 FSK2 信号检测。需要 R&S®CA120DM

R&S®CA120WSN

订单号码 4102.1217.02

描述

宽带信号在线分类

在线宽带信号分类。需要 R&S®CA120CL

多通道
产品
描述
R&S®CA120MCP

订单号码 4102.1152.02

描述

多通道处理

接收机的 I/Q 数据输入

R&S®CA120DSC

订单号码 4102.1169.02

描述

检测、搜索和分类固定频率

自动检测固定频率信号

R&S®CA120SDT

订单号码 4102.1181.02

描述

频谱形状检测器

高速频谱形状搜索。需要 R&S®CA120DSC

R&S®CA120AP

订单号码 4102.1175.02

描述

自动处理检测到的信号

需要 R&S®CA120DSC;

R&S®CA120ST

订单号码 4102.1198.02

描述

短时信号检测

检测频率捷变短时信号。需要 R&S®CA120MCP

R&S®CA120PS

订单号码 4098.5224.02

描述

配置文件分离

分离多个短时发射机并匹配预定义的配置文件。需要 R&S®CA120ST

R&S®CA120OR

订单号码 4098.5218.02

描述

在线重组

在线重组频率捷变短时信号。需要 R&S®CA120PS

R&S®CA120REC

订单号码 4102.1200.02

描述

记录和回放

记录和回放频率范围,最大带宽 10 MHz

培训
产品
描述
R&S®CA120-TI

订单号码 3637.2524.02

描述

R&S®CA120 简介

选件描述。1 天(5 小时)

R&S®CA120-TO

订单号码 3637.3914.02

描述

R&S®CA120 操作人员培训

5 天

R&S®CA120-TA

订单号码 3637.4604.02

描述

R&S®CA120 操作人员培训 API

应用程序编程接口。5 天

R&S®CA1X0-TTU

订单号码 3637.2482.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方调谐器。5 天

R&S®CA1X0-TDM

订单号码 3637.2499.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方解调器。4 天

R&S®CA1X0-TDC

订单号码 3637.2501.02

描述

R&S®CA100/R&S®CA120 开发人员培训

集成第三方解码器。5 天

R&S®CA1X0-SAF

订单号码 3637.4685.02

描述

信号分析基本原理培训

5 天
