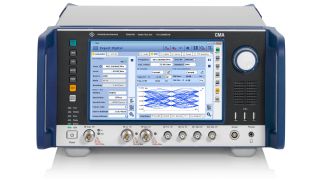

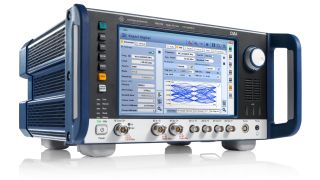

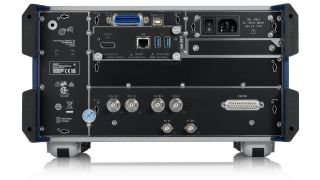

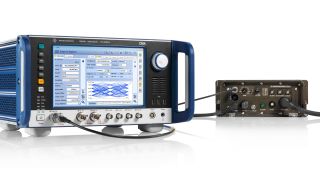

R&S®CMA180 radio test set, Front Low R&S®CMA180 无线电测试装置,高前视图 R&S®CMA180 无线电测试装置,侧视图 R&S®CMA180 无线电测试装置,后视图 R&S®CMA180 无线电测试装置,应用图像

主要特点

  • 频率范围:0.1 MHz 至 3 GHz
  • 数字标准:DMR、P25、NXDN、TETRA、POCSAG、Zigbee
  • 模拟测试:AM、FM、PM、SSB、CW
  • 航空电子:ILS、VOR、MB 发生器,提供 VOIP ED-137B/C 支持
  • I/Q 记录和回放

测试功能通用全面

R&S®CMA180 的频率范围介于 100 kHz 至 3 GHz,非常适合测试所有常见的模拟和数字无线电系统。R&S®CMA180 提供最高 150 W 输入电平。R&S®CMA180 内置多种功能,能够灵活地切换音频和射频路径,可以满足各种测试要求。用户可以根据应用情况配置内部发生器、外部音频源、滤波器和测量。对于预定义的接收机、发射机和双工测试,射频和音频路径已预先配置。这可以节省时间,避免执行标准测试用例时出现配置错误。

特性和优点

通用全面的射频测量

扫描频谱分析仪和跟踪源

R&S®CMA180 内置扫描频谱分析仪。此通用分析仪具备丰富的配置选件,可以测试各类被测设备。频谱分析仪具备两种操作模式:全跨度和用户自定义跨度。零跨度模式支持时域分析。与触发机制相结合,可显示瞬态变化。内置跟踪源便于轻松确定射频组件的频率响应。

公共安全和 LTE 测试

数字接收机和发射机测量

R&S®CMA180 可以针对数字无线电标准生成测试信号。信号成分可经配置以满足测试要求。例如,信号可以携带音频测试音或伪随机位序列 (PRBS)。仪器具备简洁直观的图形用户界面,可用于配置 DMR 颜色代码等信令参数,便于轻松执行 DMR、NXDN、APCO P25 和 dPMR 等数字标准的接收机测试。
集成式矢量信号分析仪可解调数字信号并提供相应结果,包括眼图、符号分布以及频率偏差和误差矢量幅度等标量值。因此,R&S®CMA180 可以分析多种数字信号。用户只需选择待测标准,测试装置将自动设置所需的分析仪参数。R&S®CMA180 支持 DMR、dPMR、NXDN、APCO P25、TETRA 和 LTE。只需按下按钮,即可执行数字和模拟测量。测试装置显示结果概览,并在图表中展示详细结果。

测试自动化和调谐

R&S®CMArun 可用于控制测试序列。此软件的图形用户界面可用于编写测试序列程序。用户可以按特定序列配置和安排各项设置和测量任务。序列、循环和条件查询有助于用户轻松创建和执行复杂的测试序列。所有设置和测量值将被记录、汇总并存储在报告中。对于涉及限值的测量任务,可以显示合格或不合格指示。 用户无需进行配置,只需按下按钮,R&S®CMA180 即可全面调谐 L3Harris 电台(XL-200P/M、XL-185P/M、XG-100M)的 FM、APCO P25 和 LTE 功能

便携式

R&S®CMA180 可配备 110 V 至 250 V 交流电源或 10 V 至 30 V 直流电源以进行操作。配备直流电源时,R&S®CMA180 也可通过车载电源进行供电。直流电源可连接至外部交直流转换器以使用 110 V 至 250 V 交流电运作。借助可选电池盒,配备直流电源的 R&S®CMA180 可提供一流的移动性,并可用作便携式测试仪以直接连接到被测设备。

航空电子测试

ILS、VOR 信标台和 VoIP

R&S®CMA180 提供出色的信号质量,是一款适用于机载应用的多功能无线电测试仪。R&S®CMA180 可以分析飞机着陆系统的 ILS、VOR 和信标台信号以及机载电台信号。配备电池和天线的 R&S®CMA180 可作为单机式仪器,非常适合飞机维护任务。R&S®CMA180 集成符合 EUROCAE ED-137B/C 标准的 VoIP 发生器和分析仪。VoIP 接口全面集成到 R&S®CMA180。

可用选项

航空电子
产品
描述
R&S®CMA-K610

订单号码 1209.7058.02

描述

VoIP 支持功能符合 EUROCAE-ED137B/C 标准

R&S®CMA-KT420

订单号码 1209.6422.02

描述

R&S-S4200 电台测试

R&S®CMA-K130

订单号码 1209.5703.02

描述

ILS/VOR 发生器

数字调制
产品
描述
R&S®CMA-K300

订单号码 1209.8990.02

描述

信号分析基本软件

R&S®CMA-K305

订单号码 1209.9009.02

描述

数字信号分析仪(DMR、APCO、NXDN、dPMR)

R&S®CMA-KTHAR

订单号码 1209.8731.02

描述

Harris 电台(XL-200P/M、XL-185P/M、XG-100M)控制库,搭配 CMArun 执行自动化测试程序

4G/LTE 测量
产品
描述
R&S®CMA-K320

订单号码 1209.8877.02

描述

信号分析软件 LTE FDD
