射频分析仪

确保在整个产品生命周期顺利进行生产测试

罗德与施瓦茨射频分析仪产品

使用先进的罗德与施瓦茨非信令解决方案,满足严苛的任务要求

罗德与施瓦茨的一体化测试仪产品可针对所有现代蜂窝和非蜂窝标准提供高效的通用测试仪器。我们提供面向未来的非信令测试解决方案,可用于研发、验证和生产中的无线设备测试。无论您需要无线电通信测试仪以用于 5G FR1 设备还是 FR2(毫米波)产品的研发和生产应用,我们都能提供合适的产品并支持所有无线技术。

R&S®CMW100 通信制造测试装置,前视图

R&S®CMW100 通信制造测试装置

  • 连续频率范围最高达 6 GHz,射频带宽最高达 160 MHz
  • 可在最多八个双向射频端口上并行测试
  • 提供多种方法以缩短测试时间,尽量提高设备的使用率
  • 出色的测量性能和准确性
  • 无风扇设计确保静音操作 – 外壳可防尘,实现一流的可靠性
R&S®CMP180 radio communication tester, Front Low

R&S®CMP180 无线电通信测试仪

  • 频率高达 8 GHz,带宽高达 320 MHz
  • 两个独立的射频通道 (2 x VSA/2 x VSG)
  • 射频端口的数量增加 (2 x 8)
  • 自校准功能,支持现场校准
  • 2 HU 紧凑设计,尺寸仅为 19″
R&S®CMP200 无线电通信测试仪,前视图

R&S®CMP200 无线电通信测试仪

  • 中频范围介于 6 GHz 至 20 GHz
  • 并行测试多台被测设备
  • 测量速度超快
  • 全自动化路径校正概念
R&S®CMPHEAD50 Remote radio head 50 GHz, Hero view

R&S®CMPHEAD50 Remote radio head 50 GHz

  • Full frequency range from 21.84 GHz to 50.2 GHz
  • Wide dynamic range with extra sensitive RX port
  • Dual LO for best RF quality in TX and RX
  • External local oscillator input ports to boost EVM
  • Integrated mmWave RF switch matrix
R&S®CMA180 radio test set, Front Low

R&S®CMA180 无线电测试装置

  • 频率范围:0.1 MHz 至 3 GHz
  • 数字标准:DMR、P25、NXDN、TETRA、POCSAG、Zigbee
  • 模拟测试:AM、FM、PM、SSB、CW
  • 航空电子:ILS、VOR、MB 发生器,提供 VOIP ED-137B/C 支持
  • I/Q 记录和回放
Promo: What's next? Taking industry leadership or watching from the sidelines?

What's next? Taking industry leadership or watching from the sidelines?

Take the lead with up to 60% off our instruments

R&S®CMPQ – The compact solution for 5G mmWave RF test

R&S®CMPQ – The compact solution for 5G mmWave RF test

  • The compact solution for 5G mmWave RF test
  • The system concept of the R&S®CMPQ is completely flexible
  • Ideal for use in all phases of the product life cycle
  • Rohde & Schwarz offers the R&S®CMPQ, a fully integrated solution from a single supplier.

相关主题

5G NR 测试

5G NR 测试

测试与测量解决方案适用于多种蜂窝通信技术,包括 5G NR 和未来新技术

更多信息

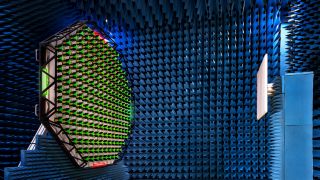

5G OTA/大规模 MIMO 测试

5G OTA/大规模 MIMO 测试

适用于毫米波和大规模 MIMO 天线的全系列空口 (OTA) 测试解决方案

更多信息

IoT 测试

IoT 测试

使用可靠的高性能解决方案在产品生命周期的所有阶段进行 IoT 设备和网络测试。

更多信息
