R&S®Field-to-Lab

在实验室创建真实的移动网络环境


R&S®Field-to-Lab
打开灯箱
R&S®Field-to-Lab
打开灯箱
R&S®Field-to-Lab
打开灯箱
R&S®Field-to-Lab
打开灯箱

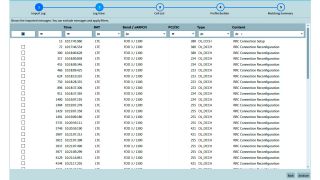

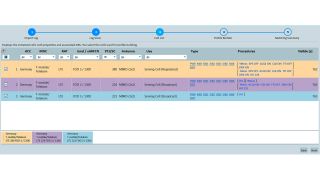

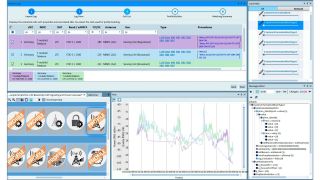

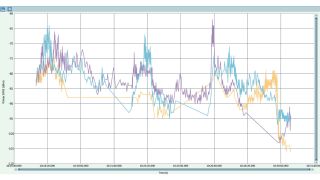

R&S®Field-to-Lab,屏幕截图 R&S®Field-to-Lab,屏幕截图 R&S®Field-to-Lab,屏幕截图 R&S®Field-to-Lab,屏幕截图

主要特点

  • 在实验室轻松模拟真实的移动环境
  • 从海量现场日志中仅提取需要的信息
  • 针对 LTE、eMTC 和 NB-IoT 回放小区与广播信息
  • 针对 LTE、eMTC 和 NB-IoT 导入重要的 L3 信令和/或射频数据
  • 使用自动化测试脚本创建功能重现现场问题


设计用于在实验室轻松创建真实的移动网络环境

更加简单、快速地完成在实验室重现现场配置/问题的艰巨任务


R&S®Field-to-Lab 使用户能够将在现场试验或路测中记录的移动网络配置导入实验室测试。
R&S®Field-to-Lab 能够在实验室自动重现现场环境,从而缩减路测时间和成本,并且可以几乎不受限制地重现问题。R&S®Field-to-Lab 能够导入网络小区信息、接收功率电平和/或信令消息内容,从而满足用户的配置和灵活性要求。

特性和优点

避免频繁、多次进行路测

借助真实的网络配置快速轻松地测试设备


  • Field-to-Lab 采用简单的向导设计,能够轻松学会并使用
  • 可以在实验室重现小区、广播和专用信令数据,从而避免在同一地点进行多次路测
  • 借助 Field-to-Lab,之前难以手动重现的射频数据现在也可以在模拟器上重现

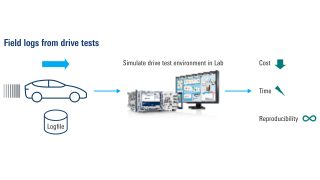

出众的优势
打开灯箱

出众的优势

缩短时间,节省成本,并且能够不受限制地重现问题

现场日志可采用不同的文件格式

Field-to-lab 并不局限于一种芯片组或扫频仪日志格式


  • Field-to-Lab 支持罗德与施瓦茨网络扫频仪以及其他供应商的扫频仪生成的日志
  • 标配支持广泛使用的芯片组日志格式
  • Field-to-Lab 提供开放日志格式,能够将专有日志转换成开放日志
  • Field-to-Lab 不受限制地支持多种日志格式,不仅功能多样,还能满足用户的灵活性要求

日志格式
打开灯箱

日志格式

支持多种芯片组、扫频仪和开放日志格式

广泛的用例

不止根据现场日志创建测试脚本,还能提供更多优势……


  • 根据现场日志创建测试脚本,进而重现现场问题
  • 根据现场日志应用真实的现场配置,增强 R&S®CMWcards 或 R&S®PQA 中当前编写的测试集
  • 高度灵活的配置选件,协助用户准确指定需从现场日志中提取的信息
  • 应用支持广泛的用例和配置,准确满足用户的测试要求

R&S®CMWcards 信令测试仪
打开灯箱

R&S®CMWcards 信令测试仪

R&S®CMWcards 应用中根据现场日志创建的测试脚本

可用选项

一般分析
产品
描述
R&S®CMW-KT030

订单号码 1211.2850.02

描述

Field-to-Lab 信令扩展

R&S®CMW-KT041

订单号码 1532.5015.02

描述

Field-to-Lab 功率回放扩展

Introducing R&S®Field-to-Lab

R&S®Field-to-Lab 简介

本视频介绍了 R&S®Field-to-Lab 应用、相关缘由以及操作原理。
