R&S®ESW-B1000 宽带扩展

宽带扩展提高测试速度和可靠性

R&S®ESW-B1000 宽带扩展
打开灯箱
R&S®ESW-B1000 宽带扩展
打开灯箱

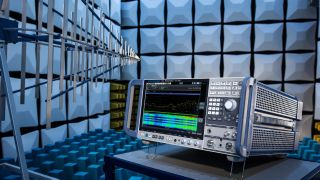

R&S®ESW-B1000 宽带扩展,应用图像 R&S®ESW-B1000 宽带扩展

主要特点

  • 最高 970 MHz FFT 带宽,实现一流的测试速度
  • 在一个频段中测量 CISPR 频段 C 和 D(30 MHz 至 1 GHz)
  • 测量时间更长,间歇性干扰结果更加可靠
  • 不间断的实时测量
  • 适用于 R&S®ESW EMI 测试接收机的可升级硬件选件

优越的 EMI 测试速度和可靠结果

R&S®ESW-B1000 和 R&S®ESW-B350 宽带选件将 R&S®ESW EMI 测试接收机的 FFT 带宽扩展至 970 MHz。R&S®ESW 可以在接收机瀑布图中连续不间断地进行实时测量。CISPR 频段 C 和 D 可在一个频率段中进行测量,1 GHz 以上频率范围可执行最高 450 MHz 实时测量,提供了出众的测试速度和可靠的干扰结果。

特性和优点

最高 970 MHz FFT 带宽

带宽扩展选件将 FFT 带宽扩展至最高 970 MHz,可以加快测量。一个频率段覆盖 CISPR 频段 C 和 D,即使启用 CISPR 检波器也能提高测量速度。R&S®ESW 无需跨频段进行扫描,可以不间断地进行连续测量,是一款实时接收机。这有助于在瀑布图视图中分析间歇性干扰。

在一个频率段中测量 30 MHz 至 1 GHz
打开灯箱

在一个频率段中测量 30 MHz 至 1 GHz

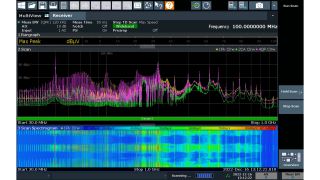

启用 CISPR 检波器和瀑布图视图,在一个 FFT 分段中测量 CISPR 频段 C 和 D。

更可靠的偶发性干扰结果

接收机扫描次数减少,便于用户节省时间观察结果,同时快速进行测试。这可以提高偶发性干扰的截获概率和检测率,保证商业和 MIL-STD 测试具有出色的可靠性和可重复性。

更可靠的干扰结果
打开灯箱

更可靠的干扰结果

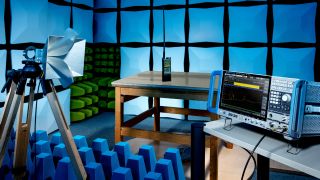

宽带宽提供长测量时间和可靠的间歇性干扰结果。

实时分析

宽带选件可以连续不间断地进行实时测量。它可以检测偶发性或快速变化的干扰以作详尽分析。接收机在固定频率段上不间断采集信号,测量时间几乎不受限制。

微波炉实时测量
打开灯箱

微波炉实时测量

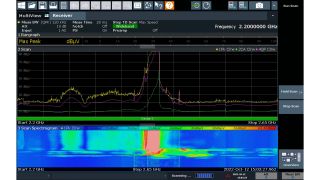

1 GHz 以上频率范围的实时 FFT 带宽高达 450 MHz,支持分析微波带外干扰。

高动态范围宽带测试

宽带扩展为输入级增加了八个并行通路。每个通路覆盖一个频率段,结合后可将 FFT 带宽扩展至最高 970 MHz。每个通路均配备预选滤波器,以确保频率选择性和出色的动态范围。具有高计算能力的 FPGA 结合八个模数转换器的数据流,并计算频谱分量。

宽带扩展信号通路
打开灯箱

宽带扩展信号通路

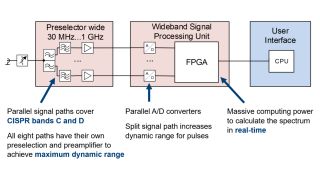

八个并行信号通路和计算单元采集并处理较宽的实时 FFT 带宽。

宽带选件概念

宽带扩展选件可将 FFT 带宽扩展至 970 MHz (R&S®ESW‑B1000) 和 350 MHz (R&S®ESW‑B350)。R&S®ESW‑B350 可以通过软件许可升级至 R&S®ESW‑B1000。这两种选件均提供两个版本:R&S®ESW‑B350/B350R 或 R&S®ESW‑B1000/B1000R。“无 R”版无需出口许可证,但只能将实时带宽扩展至 170 MHz。“R”版受到出口限制,可实时扩展整个可用带宽。

现有仪器可升级
打开灯箱

现有仪器可升级

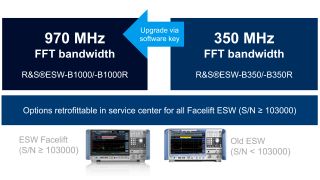

对于序列号 ≥ 103000 的 ESW,罗德与施瓦茨服务中心可以为现有仪器升级宽带选件。

可用型號

可用型號
型号
最大 FFT 带宽 (30 MHz ≤ f < 1000 MHz)
最大 FFT 带宽 (1 GHz ≤ f < 8 MHz)
最大实时带宽
无需出口许可证

R&S®ESW-B350

订单号码 1345.0438.02

最大 FFT 带宽 (30 MHz ≤ f < 1000 MHz)
350 MHz
最大 FFT 带宽 (1 GHz ≤ f < 8 MHz)
350 MHz
最大实时带宽
170 MHz
无需出口许可证

R&S®ESW-B350R

订单号码 1351.1184.02

最大 FFT 带宽 (30 MHz ≤ f < 1000 MHz)
350 MHz
最大 FFT 带宽 (1 GHz ≤ f < 8 MHz)
350 MHz
最大实时带宽
350 MHz
无需出口许可证

R&S®ESW-B1000

订单号码 1345.0421.02

最大 FFT 带宽 (30 MHz ≤ f < 1000 MHz)
970 MHz
最大 FFT 带宽 (1 GHz ≤ f < 8 MHz)
450 MHz
最大实时带宽
170 MHz
无需出口许可证

R&S®ESW-B1000R

订单号码 1351.1178.02

最大 FFT 带宽 (30 MHz ≤ f < 1000 MHz)
970 MHz
最大 FFT 带宽 (1 GHz ≤ f < 8 MHz)
450 MHz
最大实时带宽
970 MHz
无需出口许可证
规格
FFT 带宽
TDS 优化:最大速度,任意检波器,配备 R&S®ESW-B350/B350R 选件 30 MHz ≤ f < 8 GHz
RBW = 9 kHz 90 MHz
RBW = 120 kHz、1 MHz 350 MHz
TDS 优化:最大速度,任意检波器,
配备 R&S®ESW-B1000/B1000R 选件
30 MHz ≤ f < 1000 MHz
RBW = 9 kHz 90 MHz
RBW = 120 kHz 970 MHz
RBW = 1 MHz 880 MHz
1 GHz ≤ f < 8 GHz
RBW = 9 kHz 90 MHz
RBW = 120 kHz、1 MHz 450 MHz
接收机模式总测量时间
30 MHz 至 1 GHz(CISPR 频段 C/D) R&S®ESW-B1000/B1000R,9 kHz RBW,1 s MT,准峰值和 CAV 22.5 s
R&S®ESW-B1000/B1000R,120 kHz,1 s MT,准峰值和 CAV 1.8 s
1 GHz 至 6 GHz(CISPR 频段 E) R&S®ESW-B1000/B1000R,1 MHz RBW,1 s MT,峰值和 CAV 26 s
