MIPI low-speed

Trigger & decode oscilloscope software package

MIPI low-speed
打开灯箱
MIPI low-speed, Software

主要特点

  • Support of MIPI RFFE version 1.X, 2.0, 2.1 and 3.0
  • Fully integrated in the GUI for fast setup
  • Hardware implementation for reliable triggering on events as start, stop, label, data and various error conditions
  • Label list support
  • Display of all decoded telegrams in a table
  • Multi-domain icon

Oscilloscope software

The R&S®RTO and R&S®RTP oscilloscopes support triggering and decoding of the MIPI-RFFE protocol. You can set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and/or in a table. Errors are identified reliably and efficently using the hardware-accelerated trigger. You can trigger on start, stop, label and data and various error conditions.

特性和优点

Fast bus setup

Bus setup in seconds from the app cockpit

Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.

打开灯箱

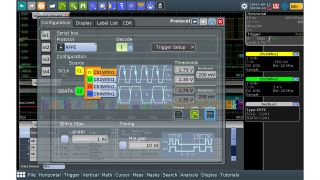

Fast and easy configuration of MIPI-RFFE decoding.

Color-coded protocol details

Protocol display as color-coded bus signals and in decode table

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The protocol details can also be displayed in a concise table. Select the data format and decode layer that best fits your analysis needs.

打开灯箱

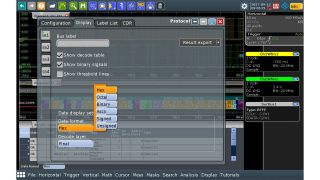

Decoding details of the MIPI RFFE protocol displayed in the waveform and result table – select the data format and decoding layer.

Powerful trigger capabilities

Trigger on start, stop, label and data and various error conditions.

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

打开灯箱

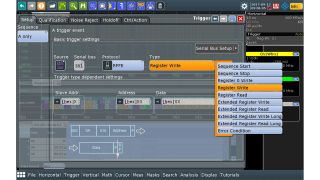

Focus the triggering on the protocol detail of interest – select from a comprehensive list of MIPI RFFE protocol elements and configure the parameters.

Powerful search and navigate capability

Search and navigate in recorded acquisitions

Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.

打开灯箱

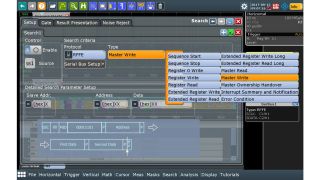

Benefit from the powerful search capabilities to analyze long recordings.

可用型號

可用型號
型号
Serial standard
Label support
Search

R&S®RTO6-K550

订单号码 1801.7054.02

Serial standard
MIPI RFFE
Label support
Search

R&S®RTP-K550

订单号码 1803.6678.02

Serial standard
MIPI RFFE
Label support
Search

请求信息

如果您有任何疑问或需要了解更多信息,请填写此表格,我们会尽快回复您。

推广许可

你的申请已提交,我们稍后会联系您。
An error is occurred, please try it again later.
