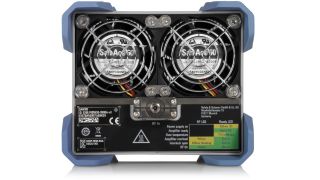

R&S®SAM100 系统放大器,前视图 R&S®SAM100 系统放大器,主视图 R&S®SAM100 系统放大器,后视图 R&S®SAM100 系统放大器,应用图像

主要特点

  • 超宽带频率范围:2 GHz 至 20 GHz
  • 输出功率:20 W(饱和功率)和更高
  • 具有高增益、低噪声 (< 8 dB) 和出色的线性度
  • 非常适用于调幅、调频、调相、PhiM 和 OFDM
  • 紧凑、坚固的模块化设计,适用于 DVT/PVT 和 EMC 应用
  • 3 年延长保修

兼具杰出的性能、带宽和低噪声

R&S®SAM100 系统放大器是一种超宽带固态微波放大器,频率范围为 2 GHz 至 20 GHz。R&S®SAM100 放大器的功率高达 20 W,并具有出色的线性度和噪声特性,非常适合用作紧凑型系统放大器以用于设计验证测试 (DVT)、产品验证测试 (PVT) 或电磁兼容 (EMC) 等多种测量装置。和罗德与施瓦茨发生器、频率分析仪或网络分析仪结合用于测量应用时,此放大器可用作驱动器或助推器,并能够放大测量信号。R&S®SAM100 还适用于替代电子管放大器和由窄带单级放大器组成的多频段组件。

特性和优点

宽带放大

精湛先进的固态技术,适用于低噪声放大

这款体积小巧的超轻型 20 W 微波放大器具有出色的功率密度和不足 –100 dBm (1 Hz) 的极低噪声功率密度。它利用最新的氮化镓高电子迁移率晶体管技术,实现 2 GHz 至 20 GHz 的带宽范围,并采用使用热管技术的精密热设计,支持用户在设计、测试和验证射频组件和设备的时候放大测试信号。

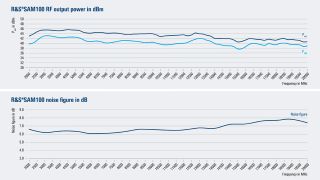

R&S®SAM100 射频输出功率和噪声系数
打开灯箱

R&S®SAM100 射频输出功率和噪声系数

紧凑的模块化设计

使用灵活

R&S®SAM100 放大器采用紧凑的模块化设计,能够安装在 19" 系统机架和 PXI 框架中,并且性能精良。这些放大器也可用作移动桌面设备, 并可通过数字控制接口集成到自动化测试系统(ATE 系统)中。放大器采用插入系统支持使用微波输入和输出插头,便于用户选择使用 2.92 mm 或 3.5 mm 插头。

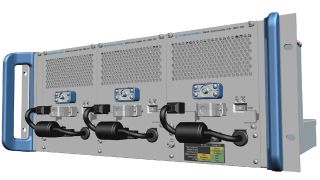

19" 机架至多可以安装 3 台 R&S®SAM100,能够轻松集成到自动化测试系统 (ATE)
打开灯箱

19" 机架至多可以安装 3 台 R&S®SAM100,能够轻松集成到自动化测试系统 (ATE)

可用型号

可用型号
型号
频率范围
输出功率(饱和功率)

R&S®SAM100-0220-20

订单号码 5358.9005K50

频率范围
2 GHz - 20 GHz
输出功率(饱和功率)
20 W

可用选项

通用
产品
描述
R&S®ZR-SAM-D

订单号码 5358.2930.02

描述

桌面安装套件

R&S®ZR-SAM-R

订单号码 5358.2923.02

描述

框架安装套件

R&S®ZR-SAM-F

订单号码 5358.2917.02

描述

19" 机架,至多可安装 3 台 R&S®SAM100

R&S®SAM-B102

订单号码 5358.2900.02

描述

2.92 mm 适配器

R&S®SAM-B103

订单号码 5358.2900.03

描述

3.5 mm 适配器
