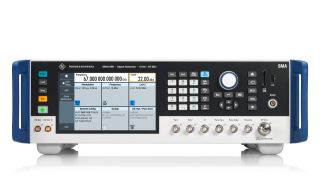

主要特点
- 频率范围:8 kHz 至 3、6、12.75、20、31.8、40、50 和 67 GHz(在过范围模式下最高达 72 GHz)
- 10 GHz、10 kHz 偏移时,SSB 相位噪声为 –132 dBc(典型值)
- 10 GHz、30 MHz 偏移时,宽带噪声为 –162 dBc(测量值)
- 在宽频率范围内最大输出功率超过 30 dBm
- 极低的谐波

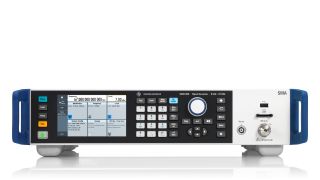

R&S®SMA100B 射频和微波信号发生器提供优越性能。在维持最高输出功率和最低谐波的同时提供纯净的输出信号,优于同类产品。作为全球头等的信号发生器,它可以完成射频半导体、无线通信、航空航天和国防领域苛刻的模块和系统测试与测量任务。

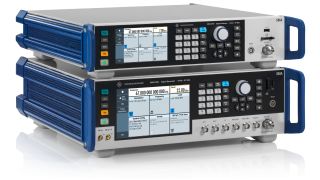

R&S®SMA100B 提供优越独特的性能。
不同频率下的 SSB 相位噪声

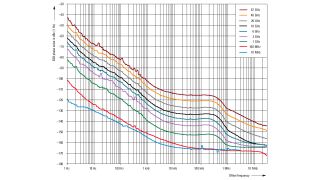

配备 R&S®SMAB-B711(N) 选件时测量的 R&S®SMA100B SSB 相位噪声性能
大动态范围,出色的电平准确性,优异的电平可重复性
微波频率范围通常需要高额输出功率,因为频率越高,衰减越大。R&S®SMA100B 提供不同的输出功率级以补偿此类损耗。因此,无需使用下行外部放大器。 输出功率非常高(测量值)
测量的最大输出功率

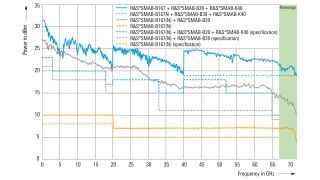

为 50 GHz 和 67 GHz 仪器测量的最大可用输出功率(标配、高输出功率选件、超高输出功率选件)
轻松集成到测试系统,具备创新的操作特性
创新的操作特性

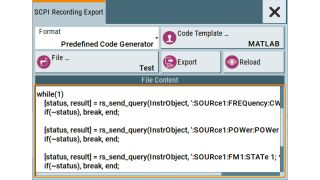

内置 SCPI 宏记录器和代码生成器支持快速、轻松地生成 SCPI 程序序列
翻新老旧的信号发生器
R&S®LegacyPro 使 R&S®SMA100B 能够可靠模拟是德科技、安捷伦、惠普、安立和罗德与施瓦茨等供应商的多种传统发生器。因此,R&S®SMA100B 可部署在传统系统中,无需大量更改软件,有效延长正常运行时间,降低拥有成本,延长测试系统的服务寿命。
测量设备的真正性能
每次推出新一代模数转换器,模拟输入带宽和所需的时钟频率会随之增加。有效位数增加,也会导致信噪比上升。这意味着要测试模数转换器和数模转换器,需要超过被测设备性能的超纯净高频信号。R&S®SMA100B 性能优异,可以优化被测设备,并率先使技术改进变得可行。

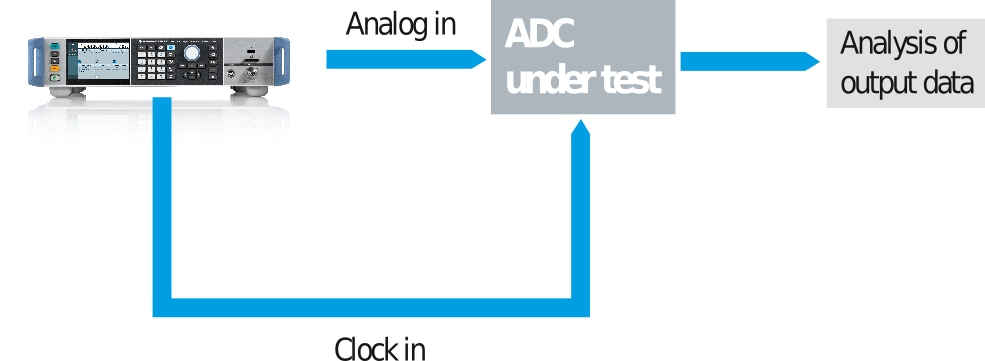

模数转换器/数模转换器应用中的 R&S®SMA100B
使用带集成式附加信号源的单个 R&S®SMA100B 创建紧凑型模数转换器测试装置,可用于最高 6 GHz 时钟信号
R&S®NRP 功率探头可连接到 R&S®SMA100B;
被测设备鲜少直接连接到发生器。发生器和被测设备通常通过电缆和其他组件相互连接。因此,参考面从发生器的射频输出端转为被测设备。R&S®NRP 功率探头可连接至 R&S®SMB100B,以便在新参考面上进行准确校准(精度可达 0.1 dB)。

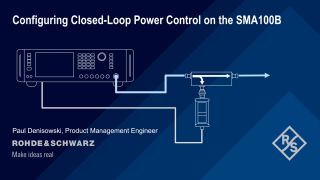

R&S®NRP 功率探头连接性

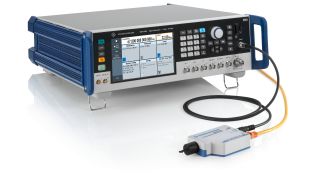

R&S®SMA100B 连接罗德与施瓦茨功率探头
补偿外部频率响应
被测设备通常通过长电缆或其他频率相关组件连接至信号发生器,需要补偿频率响应。为此,R&S®SMA100B 提供了用户校正 (UCOR) 功能。与 R&S®NRP 功率探头结合使用,便可一键自动测定 UCOR 值。全新参考面提供获得频率响应补偿的射频信号,以用于实施 UCOR 功能。

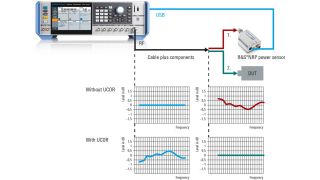

装置和 UCOR 功能
使用电缆和其他组件(具有频率响应)连接 R&S®SMA100B 和被测设备时,会显示相对输出功率。
Trade in your legacy signal generators
R&S®SMA100B 提供多种方式输出(或输入)参考信号。采用 R&S®SMAB-K704 选件时,R&S®SMA100B 可具备 1 MHz 至 100 MHz 的可变外部参考频率输入,能够轻松集成到现有测试环境中。接收的参考频率也可分配给完全不同的参考输出。

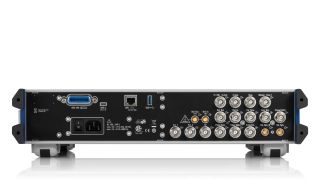

可变参考频率输入/输出

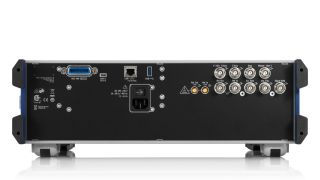

R&S®SMA100B 后面板参考频率输入和输出
Easy integration into test systems and innovative operating features
利用集成式自动电平控制 (ALC) 功能测量放大器的增益转移函数或输出饱和点时,信号发生器必须提供较宽的不间断电平扫描范围。配备 R&S®SMAB-K724 选件的 R&S®SMA100B 具备以下特性:
Innovative operating features

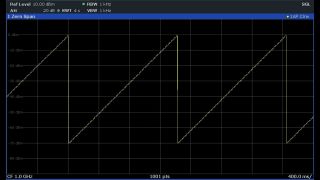

使用 R&S®SMA100B 进行高动态范围不间断电平扫描;
订单号码 1420.8488.02
8 kHz 至 3 GHz
订单号码 1420.8588.02
8 kHz 至 6 GHz
订单号码 1420.8688.02
8 kHz 至 12.75 GHz
订单号码 1420.8788.02
8 kHz 至 20 GHz
订单号码 1420.8888.02
8 kHz 至 31.8 GHz
订单号码 1420.8988.02
8 kHz 至 40 GHz
订单号码 1420.8965.02
8 kHz 至 40 GHz,最小脉冲宽度限制
订单号码 1420.9049.02
8 kHz 至 50 GHz
订单号码 1420.9026.02
8 kHz 至 50 GHz,最小脉冲宽度限制
订单号码 1420.9149.02
8 kHz 至 67 GHz
订单号码 1420.9126.02
8 kHz 至 67 GHz,最小脉冲宽度限制
订单号码 1420.8088.02
差分时钟合成器,3 GHz
订单号码 1420.9810.02
时钟合成器频率可扩展至 6 GHz
订单号码 1420.9849.02
低相位噪声,适用于 R&S®SMAB-B106/-B112/-B120/-B131/-B140(N)/-B150(N)/-B167(N)
订单号码 1420.8007.02
改善的迫近相位噪声,适用于 R&S®SMAB-B106/-B112/-B120/-B131/-B140/-B150/-B167
订单号码 1420.8107.02
改善的迫近相位噪声,适用于 R&S®SMAB-B103
订单号码 1420.8020.02
超低相位噪声,适用于 R&S®SMAB-B106/-B112/-B120/-B131/-B140/-B150/-B167
订单号码 1420.8120.02
超低相位噪声,适用于 R&S®SMAB-B103
订单号码 1420.8188.02
高性能 OCXO 参考振荡器
订单号码 1420.9761.02
100 MHz,1 GHz 参考输入和输出
订单号码 1420.9778.02
灵活参考输入,1 MHz 至 100 MHz
订单号码 1420.7100.02
高输出功率,3 GHz/6 GHz
订单号码 1420.7200.02
超高输出功率,3 GHz/6 GHz
订单号码 1420.7300.02
高输出功率,12.75 GHz/20 GHz
订单号码 1420.7400.02
超高输出功率,12.75 GHz/20 GHz
订单号码 1420.7500.02
高输出功率,31.8 GHz/40 GHz
订单号码 1420.9178.02
超高输出功率,31.8 GHz/40 GHz
订单号码 1420.9190.02
超高输出功率,31.8 GHz/40 GHz
订单号码 1420.7700.02
高输出功率,50 GHz
订单号码 1420.9255.02
超高输出功率,50 GHz
订单号码 1420.7900.02
高输出功率,67 GHz
订单号码 1420.9278.02
超高输出功率,67 GHz
订单号码 1420.9710.02
高性能脉冲调制器
订单号码 1420.9726.02
脉冲发生器
订单号码 1420.9732.02
多功能发生器
订单号码 1420.9855.02
VOR/ILS
订单号码 1420.9749.02
脉冲串
订单号码 1420.9790.02
调幅/调频/调相
订单号码 1420.9784.02
调幅扫描
订单号码 1420.9832.02
高动态不间断电平扫描
订单号码 1420.9861.02
Chirp signal generation
订单号码 1420.6579.02
斜坡扫描
订单号码 1420.6504.02
后面板连接器 (3 GHz/6 GHz)
订单号码 1420.6510.02
后面板连接器 (12.75 GHz/20 GHz/31.8 GHz/40 GHz)
订单号码 1420.6527.02
后面板连接器 (50 GHz/67 GHz),PC 1.85 mm
订单号码 1177.8803.00
19’’ rack adapter for devices with 2 height units
机架安装套件,适用于 R&S®MXO 5C 示波器,2 HU
订单号码 1177.8810.00
适用于 3 HU 型号的 19" 机架适配器
订单号码 6124.2531.00
针对 RS-232 远程控制的 USB 串行适配器
订单号码 1420.6662.02
备用 SD 卡
订单号码 1420.6556.02
可移动大容量存储器
订单号码 1420.6562.02
远程控制 GPIB 和 USB
订单号码 1420.9755.02
电源分析
订单号码 1420.9284.02
Health and utilization monitoring service (HUMS)
订单号码 0240.2193.18
校准值文件
订单号码 3598.3307.03
R&S®DCV-2 0240.2193.18 R&S®SMA100B 认证校准;最高 6 GHz
订单号码 3598.3236.03
R&S®SMA100B 认证校准;12.75 GHz 至 40 GHz
订单号码 3598.3207.03
R&S®SMA100B 认证校准;50 GHz 至 67 GHz
订单号码 1420.8288.04
平台高度选件:2 HU,带 5" 触摸显示屏
订单号码 1420.8388.04
平台高度选件:3 HU,带 7" 触摸显示屏
订单号码 1420.9884.02
倍频控制
