主要特点

  • 显示解码结果的轨迹
  • 测量帧间隔
  • 通过误帧率测量验证总线
  • 测量总线空闲时间
  • 测定串行总线比特率

总线测量

RTE/RTO/RTP-K35 支持针对 I2C、SPI、UART、RS232/485、CAN、CAN-FD、LIN、100BASE-Tx 以太网和 100BASE-T1 车载以太网的总线测量。

特性和优点

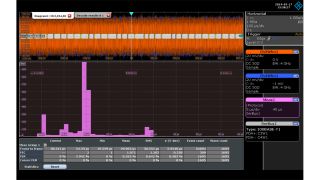

测量帧间隔

用户可以使用合适的解码选件测量帧到帧时间,并将结果显示为轨迹或直方图。

打开灯箱

获取完整全面的总线错误统计数据

总线测量选件可用于测定绝对帧差错、帧差错百分比以及连续误帧率。

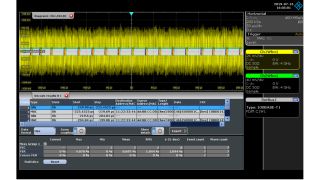

100BASE-T1 误帧率
打开灯箱

100BASE-T1 误帧率

帧差错测量包括误帧率和连续误帧率。

可用型号

可用型号
型号
帧到帧
触发到帧
域值
主比特率
帧数
误帧率

R&S®RTP-K35

订单号码 1800.6648.02

帧到帧
触发到帧
域值
主比特率
帧数
误帧率

R&S®RTP-K500

订单号码 1803.6626.02

帧到帧
触发到帧
域值
主比特率
帧数
误帧率

R&S®RTO6-K500

订单号码 1801.6864.02

帧到帧
触发到帧
域值
主比特率
帧数
误帧率
