R&S®FE170ST 前端

超乎预期的亚太赫兹解决方案

R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱
R&S®FE170ST 前端
打开灯箱

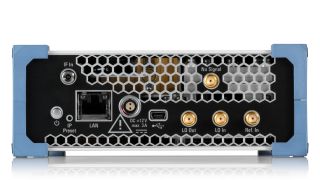

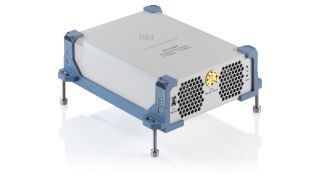

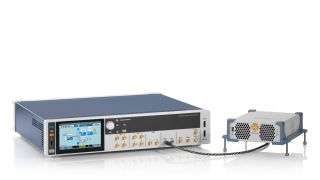

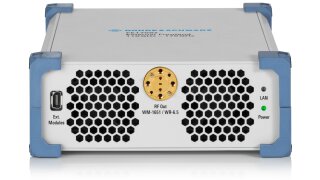

R&S®FE170ST 前端,主视图 R&S®FE170ST 前端,应用图像 R&S®FE170ST 前端,低后视图 R&S®FE170ST 前端,高前视图 R&S®FE170ST 前端,侧视图 R&S®FE170ST 前端,应用图像 R&S®FE170ST 前端,侧视图

主要特点

  • 解决方案经过充分校准
  • 易于操作
  • 全自动化
  • 智能附件
  • 体积小巧

频率扩展至 D 频段(110 GHz 至 175 GHz)

R&S®FE170ST 非常适合早期的亚太赫兹和 6G 研究活动。解决方案将 R&S®SMW200A 和 R&S®SMM100A 的频率范围扩展到 D 频段(110 GHz 至 175 GHz),为工程师提供所需频率范围以开发新一代移动通信。这款经过充分校准的易用解决方案兼容罗德与施瓦茨的信号发生器、分析仪和示波器。这款产品即插即用,便于设计新一代移动通信。

特性和优点

解决方案经过充分校准

R&S®FE170ST 外部前端适用于 R&S®SMW200A 和 R&S®SMM100A 矢量信号发生器。R&S®FE170ST 在生产过程中经过了充分表征。只需通过 LAN 连接 R&S®FE170ST,前端中存储的校正数据会自动传输至基本单元,确保信号生成解决方案经过充分校准,不仅减少了设置和校准所需的时间和设备,还增强了测量保真度。

易于操作

R&S®FE170ST 无缝集成到 R&S®SMW200A 和 R&S®SMM100A 矢量信号发生器的操作环境。通过 LAN、IF 和 REF 连接器连接前端后,R&S®SMW200A 和 R&S®SMM100A 可转换为适用于 D 频段(110 GHz 至 170 GHz)应用的信号发生器。多个仪器无需进行编程设计,因此能够轻松可靠地设置自动测量。

R&S®FE170ST 连接
打开灯箱

R&S®FE170ST 连接

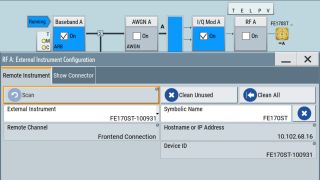

连接 R&S®FE170ST 时的 R&S®SMW200A 用户界面

出色的信号性能

开发新一代移动通信和汽车电子雷达应用时,需要生成具有出色调制质量的宽带调制信号。R&S®FE170ST 具备优异的调制质量。这可以在 144 GHz 频率下分析 2 GHz 信道带宽(960 kHz 子载波间隔)、QPSK 调制的 5G NR 信号,误差矢量幅度 (EVM) 低于 -36 dB。仪器能够在宽动态范围提供出色的调制质量。

EVM 值与 RMS 输出功率
打开灯箱

EVM 值与 RMS 输出功率

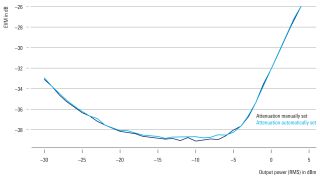

148 GHz 中心频率下 5G NR 信号(2 GHz 带宽、960 kHz 子载波间隔、QPSK)的 EVM 测量值。

智能附件

外部带通滤波器优化杂散性能,是 R&S®FE170ST 和 R&S®FE170SR 的可用选件。R&S®FE170-Z01、R&S®FE170-Z02 和 R&S®FE170-Z03 波导带通滤波器具备低插入损耗和出色的电压驻波比。设备特性数据存储在 EPROM 中。只需连接电缆,即可将数据传输至基本仪器。这些数据会自动保存,确保解决方案经过充分校准。

体积小巧

R&S®FE170ST 采用紧凑设计,可放置在被测设备旁边。这缩短了附加射频馈线的长度,减少了相关损耗。缩短与被测设备间的距离,可以减少频率上的电平纹波和提升信号质量。借助多功能安装点和可调节支脚,能够更加灵活地安装 R&S®FE170ST。R&S®WR6.5 波导连接器支持直接安装被测设备或天线,以进行 OTA 测量。

可用选项

外部附件
产品
描述
R&S®FE170-Z01

订单号码 1347.9532.02

描述

带通滤波器

外部带通滤波器 (110-136 GHz),适用于 R&S®FE170ST 和 R&S®FE170SR

R&S®FE170-Z02

订单号码 1347.9549.02

描述

带通滤波器

外部带通滤波器 (126-153 GHz),适用于 R&S®FE170ST 和 R&S®FE170SR

R&S®FE170-Z03

订单号码 1347.9555.02

描述

带通滤波器

外部带通滤波器 (143-170 GHz),适用于 R&S®FE170ST 和 R&S®FE170SR

R&S®FE170-Z20

订单号码 1347.9655.02

描述

R&S®WR6.5 波导到波导适配器

直波导。长度:40 mm

R&S®ZZA-FE01

订单号码 1348.5330.02

描述

前端高度调节

高度调节和安装套件,适用于外部前端。
支持水平或垂直装配。
