R&S®ESRP EMI 测试接收机

预一致性测量 – 简单快捷

R&S®ESRP EMI 测试接收机
打开灯箱
R&S®ESRP EMI 测试接收机
打开灯箱
R&S®ESRP EMI 测试接收机
打开灯箱
R&S®ESRP EMI 测试接收机
打开灯箱
R&S®ESRP EMI 测试接收机
打开灯箱

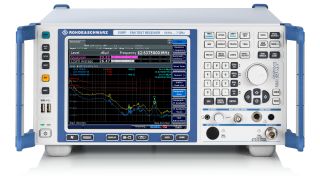

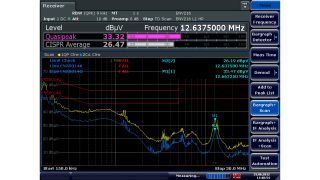

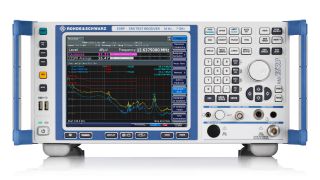

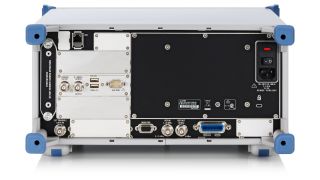

R&S®ESRP EMI 测试接收机,前视图 R&S®ESRP EMI 测试接收机,高前视图 R&S®ESRP EMI 测试接收机,后视图 R&S®ESRP EMI 测试接收机,主视图 R&S®ESRP EMI 测试接收机,屏幕截图

主要特点

  • EMI 测试接收机与信号/频谱分析仪集于一体
  • 加权检波器:PK+、QPK、CISPR 和 RMS 平均值 (CISPR 16-1-1)
  • 分辨率带宽符合 CISPR 16-1-1 和 MIL-STD 标准
  • 预选和前置放大器
  • 基于 FFT 的快速时域扫描

专用于执行可靠、稳健的预一致性和诊断测量

R&S®ESRP EMI 测试接收机专用于开发阶段的诊断测量和预一致性测量,以便产品准备好接受最终的认证测试。在 10 Hz 至 7 GHz 的频率范围内,接收机使用传统的步进式频率扫描或基于 FFT 的时域扫描(可大幅加快测量)测量电磁干扰。R&S®ESRP 也可作为功能全面、强大的信号与频谱分析仪,并适用于实验室应用。R&S®ESRP 配备触摸屏和直观的菜单结构,易于在任何模式下进行操作。

特性和优点

复杂的预一致性测量

符合商业和军事标准的干扰测量

  • 检波器符合 CISPR 16-1-1 标准:准峰值、CISPR 平均值、RMS 平均值
  • 6 dB 带宽符合 CISPR 16-1-1 标准:200 Hz、9 KHz、120 kHz 和 1 MHz
  • 6 dB 带宽符合 MIL-STD-461 和 DO-160 标准:10 Hz、100 Hz、1 kHz、10 kHz、100 kHz 和 1 MHz

针对重复频率为 10 Hz 和更高频率的脉冲提供符合标准的结果。


滤波器形状
打开灯箱

滤波器形状

图中所示为 3 kHz(–3 dB 定义点)、10 kHz(–3 dB 定义点)、9 kHz(–6 dB 定义点)测量带宽对应的形状

基于 FFT 的时域扫描

时域扫描加快测量

  • 相比传统方法,能够显著加快测量
  • 延长测量时间,便于可靠地检测窄带、间歇干扰信号或单独脉冲

具有时域扫描的条形图和扫描显示
打开灯箱

具有时域扫描的条形图和扫描显示

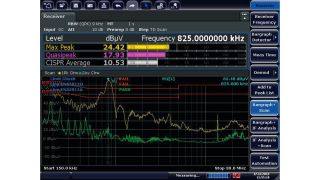

R&S®ESRP 在数秒内通过准峰值和平均值加权执行干扰电压测量。

强大的测量和分析功能

  •  自动测试序列,涵盖预览测量、数据简化以及最终测量
  • 同步显示最多六个迹线和四个条形图
  • 预设天线系数和用户创建的转换因子集
  • 符合商用标准的 EMI 限值线库,具有快捷编辑器
  • 使用 R&S®ELEKTRA 软件的远程控制测量和自动化 EMI 测试程序
  • 中频分析和适合一般实验室应用的广泛分析功能
  • 跟踪源

中频分析显示功能(示例)
打开灯箱

中频分析显示功能(示例)

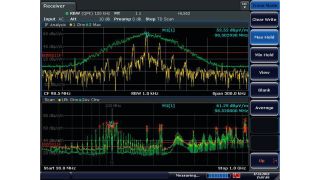

使用中频分析功能在标记位置连续显示频谱(上方)。可以在预览扫描的存储结果(下方)中设置标记。

操作简单

  •  带有撤消/重做功能的触摸屏用户界面
  •  一目了然的扫描设置表格
  •  集成式联机帮助
  •  将结果和仪器设置保存到内部或外部媒介
  •  可移动硬盘驱动器 (HDD) 或固态驱动器 (SSD) 以保护测试数据的机密性
  •  通过 GPIB 或 LAN 远程控制
  •  LabView、LabWindows/CVI、VXI Plug & Play 驱动程序
  •  免费固件更新——始终与最新技术发展保持同步

扫描表格定义
打开灯箱

扫描表格定义

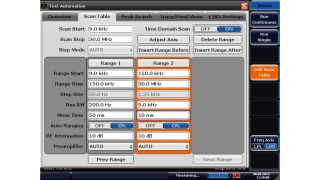

定义范围 1 和 2。使用单独的范围设置自动测量所有范围(最多 10 个)的所有频率分段。

 同样非常适合移动应用

  • 坚固的紧凑型设计,提供可选的加固外壳 (R&S®FSV-B1);
  • 适用于外场应用的直流电源 (R&S®FSV-B30) 和外部电池盒 (R&S®FSV-B32);
  • 耐高振和冲击负荷的可移动固态驱动器 (SSD) (R&S®ESRP-B18);

R&S®ESRP
打开灯箱

R&S®ESRP

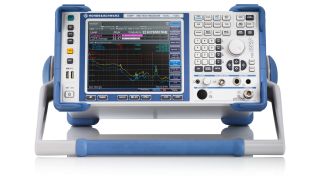

R&S®ESRP 和手柄(前视图)

可用型號

可用型號
型号
频率范围

R&S®ESRP3 EMI 测试接收机

订单号码 1316.4500.03

频率范围
 9 kHz 至 3.6 GHz

R&S®ESRP7 EMI 测试接收机

订单号码 1316.4500.07

频率范围
9 kHz 至 7 GHz

可用选项

通用
产品
描述
R&S®FSV-B1

订单号码 1310.9500.02

描述

加固外壳

R&S®ESRP-B2

订单号码 1316.4700.02

描述

预选和射频前置放大器

R&S®FSV-B4

订单号码 1310.9522.02

描述

OCXO,精密参考频率

R&S®FSV-B4

订单号码 1310.9522.03

描述

OCXO,精密参考频率稳定性

R&S®FSV-B9

订单号码 1310.9545.02

描述

跟踪源,100 kHz 至 4 GHz/7 GHz

R&S®ESR-B10

订单号码 1310.9551.03

描述

外部发生器控件

R&S®ESRP-B18

订单号码 1316.3555.03

描述

固态驱动器(SSD,可移动)

R&S®ESRP-B19

订单号码 1316.3561.03

描述

备用硬盘驱动器(HDD,可移动)

R&S®FSV-B22

订单号码 1310.9600.02

描述

前置放大器,9 kHz 至 4 GHz/7 GHz

R&S®ESRP-B29

订单号码 1316.4880.02

描述

频率扩展,10 Hz,包括按十进位步进的 EMI 带宽

R&S®FSV-B30

订单号码 1310.9897.02

描述

适用于 12 V/24 V 电源电压的直流电源

R&S®FSV-B32

订单号码 1321.3750.02

描述

锂离子电池盒

(需要 R&S®FSV-B30 和 R&S®FSV-B34)

一般分析
产品
描述
R&S®ESRP-K53

订单号码 1316.4639.02

描述

时域扫描

R&S®ESRP-K56

订单号码 1316.4897.02

描述

中频分析

通用附件
产品
描述
R&S®ZZA-478

订单号码 1096.3248.00

描述

19" 机架适配器

用于将一个 7/8 19" 外壳(4 RU 高)安装在标准 19" 机架中
