R&S®AdVISE 视觉检测软件

根据摄像头信号评估自动监控被测设备

R&S®AdVISE 视觉检测软件
打开灯箱

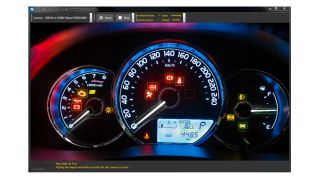

R&S®AdVISE 视觉检测软件,屏幕截图

主要特点

  • 提供多种行之有效的测试方法
  • 连续并行监控被测设备上多达 16 或 32(可选)个区域
  • 节省时间,消除人为疏忽的问题
  • 通过实时图像跟踪补偿抖动(可选)
  • 采用系统软件控制,独立运行

简介

R&S®AdVISE 视觉检测软件可在测试过程中针对被测设备 (EUT) 自动执行视觉监控。这可消除人为疏忽的问题,确保结果可重复并简化测试结果记录。典型应用包括使用 R&S®EMC32 和 R&S®ELEKTRA 测试软件执行 EMS 测试。

特性和优点

系统概念

灵活且经济实惠

  • 可在任何满足最低系统要求的 WindowsTM 7/10 控制器上运行
  • R&S®EMC32 或 R&S®ELEKTRA 等控制软件可在同一控制器上运行
  • 使用现成的便携式帧抓取器抓取视频
  • 支持所有带 DVI、HDMITM 或 HD-SDI 接口的摄像头
  • 支持使用多画面输出同时分析至多四个摄像头的视频

R&S®AdVISE 装置
打开灯箱

R&S®AdVISE 装置

网络系统中采用 R&S®EMC32 或 R&S®ELEKTRA EMC 控制软件的典型 R&S®AdVISE 装置。

一流的分析效率

感兴趣区域

感兴趣区域 (ROI) 是用户用于定义 R&S®AdVISE 系统使用方式的相关机制。广泛的分析方法涵盖多种视觉检测:
照明强度

  • 用于文本和数字的光字符识别 (OCR)
    带 R&S®ADV-K1060 选件;
  • 指示器亮度和颜色
  • 模拟指示器位置
  • 有/无符号和图标
  • 更改数字和字体
  • 闪光指示器特性
  • 动作定格
  • 自动监控——使用 R&S®ADV1062 选件检查有用或干扰噪声;

使用 ROI OCR 数字检查数字读数
打开灯箱

使用 ROI OCR 数字检查数字读数

图像跟踪

R&S®ADV-K1062 选件

  • 即使因电机移动、转盘摇晃或摄像头悬架不稳定而造成图像抖动,也可自动进行视觉检测。
  • 简单地重新放置摄像头

实时物体跟踪
打开灯箱

实时物体跟踪

即使出现抖动也能进行可靠分析

虚拟摄像头

R&S®ADV-K1050 选件

R&S®AdVISE 还可以使用 R&S®ADV-K1050 虚拟摄像头选件分析已完成测试的视频记录。

  • 支持多种视频文件容器和视频格式
  • 与实时运行时操作相同

虚拟摄像头用户界面
打开灯箱

虚拟摄像头用户界面

使用虚拟摄像头选件查看被测设备在测试期间的视频记录

视频协议和测试报告

集成式协议实用工具

R&S®AdVISE 可生成视频协议与事件列表。集成式视频播放器具备索引功能,为系统提供出类拔萃的可用性。借助此功能,用户只需单击事件信息,即可跳转到视频中该事件的位置。用户也可使用播放器将单帧视频保存为 JPEG 图像或保存视频片段,以便用于报告或存档。事件列表可另存为 PDF 格式的测试报告。

事件控制视频协议
打开灯箱

事件控制视频协议

单击任何事件信息以在视频中显示事件

远程控制

R&S®AdVISE 具备通用和扩展远程控制接口

通用远程控制接口:

  • 适用于任意外部控制软件
  • 将通过/未通过摘要信息传输至控制软件
  • 控制软件可传输测试信息,以将其插入传入视频和记录视频


  扩展远程控制接口:
  • 可用于罗德与施瓦茨 EMC 控制软件 R&S®EMC32 和 R&S®ELEKTRA;
  • 功能与通用接口相同
  • 此外还可提供各个 ROI 的测试结果,以便在 R&S®EMC32 中进行图形处理;

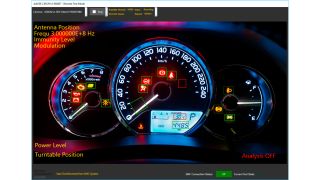

测量视图覆盖 EMS 测试条件
打开灯箱

测量视图覆盖 EMS 测试条件

可用选项

基本单元
产品
描述
R&S®ADVISE-SW

订单号码 1434.6518.02

描述

视觉检测软件

R&S®ADVISE-PC

订单号码 1434.6660.02

描述

许可加密狗

软件选件
产品
描述
R&S®ADV-K1032

订单号码 1434.6524.02

描述

扩展至 32 个 ROI

R&S®ADV-K1050

订单号码 1434.6530.02

描述

虚拟摄像头

R&S®ADV-K1060

订单号码 1434.6601.02

描述

用于文本和数字的 ROI 光字符识别

R&S®ADV-K1062

订单号码 1434.6618.02

描述

ROI 音频

R&S®ADV-K1070

订单号码 1434.6560.02

描述

图像跟踪
