R&S®SFD DOCSIS 信号发生器

实时单通道 DOCSIS 3.1 信号

R&S®SFD DOCSIS 信号发生器
打开灯箱
R&S®SFD DOCSIS 信号发生器
打开灯箱
R&S®SFD DOCSIS 信号发生器
打开灯箱
R&S®SFD DOCSIS 信号发生器
打开灯箱
R&S®SFD DOCSIS 信号发生器
打开灯箱
R&S®SFD DOCSIS 信号发生器
打开灯箱

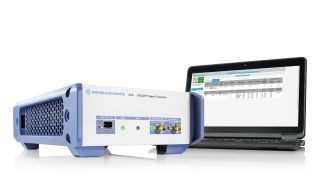

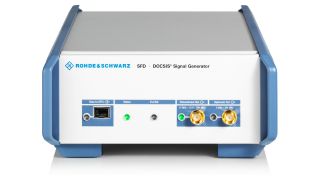

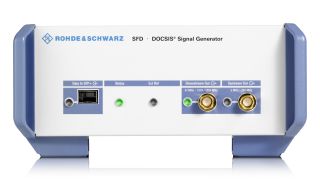

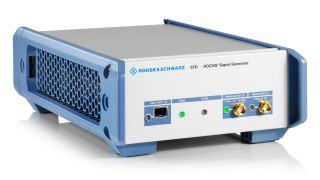

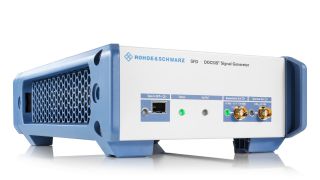

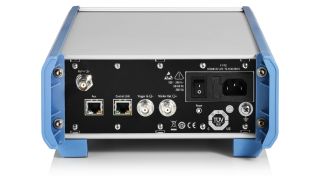

R&S®SFD DOCSIS 信号发生器,前视图 R&S®SFD DOCSIS 信号发生器,高前视图 R&S®SFD DOCSIS 信号发生器,侧视图 R&S®SFD DOCSIS 信号发生器,后视图 R&S®SFD DOCSIS 信号发生器,主视图 R&S®SFD DOCSIS 信号发生器,应用图像

主要特点

  • 下行:47 MHz 至 1218 MHz/1794 MHz;上行:5 MHz 至 204 MHz
  • DOCSIS3.1、DOCSIS3.0、J.83/A/B/C 和模拟电视
  • 信号干扰及失真仿真
  • 在 1002 MHz 至 1794 MHz 范围内同时生成至少 80 个 SC-QAM 通道
  • 最高 200 MHz 的任意波形发生器带宽

DOCSIS 3.1 单通道实时发生器

R&S®SFD 可实时生成 DOCSIS 3.1 信号,并根据 DOCSIS 3.1 标准灵活设置电平、频率、星座图和所有其他参数。R&S®SFD 也可以根据 J.83/A/B/C 规范生成实时调制的数字电视信号。信号内容可以通过 IP 馈入或由 R&S®SFD 内部生成。

特性和优点

下行信号生成

灵活的实时下行信号调制

R&S®SFD 可实时调制 DOCSIS 3.1、DOCSIS 3.0 以及数字有线电视(根据 J.83/A/B/C)信号。下行信号频率范围分别介于 47 MHz 至 1794 MHz (DOCSIS 3.1) 和 47 MHz 至 1218 MHz(DOCSIS 3.0 和数字电视)。所有参数都可以通过图形用户界面或 SCPI 远程命令设置。需要传输的用户数据可以通过 IP 馈入,或由 R&S®SFD 根据 PRBS 或用户文件内部生成。SFD-K202 选件能够在 1002 MHz 至 1794 MHz 扩展操作范围内同时生成至少 80 个 SC-QAM 通道。

R&S®SFD 图形用户界面——下行信号配置
打开灯箱

R&S®SFD 图形用户界面——下行信号配置

图形用户界面易于使用,确保使用所有必需参数设置下行信号。预定义值可加快生成首次结果。

上行信号生成

灵活的实时上行信号调制

上行信号频率范围介于 5 MHz 至 204 MHz。在此范围内,可以实时生成 DOCSIS 3.1 正交频分多址 (OFDMA) 信号。DOCSIS 3.0 TDMA 或 CDMA 信号可以在 5 MHz 至 85 MHz 范围内实时生成。触发功能可以确保精确的脉冲时序控制。R&S®SFD 是测试调谐器、电缆调制解调器和上行 CMTS 接收机的理想解决方案。

R&S®SFD 图形用户界面——上行信号配置
打开灯箱

R&S®SFD 图形用户界面——上行信号配置

图形用户界面易于使用,确保使用所有必需参数设置上行信号。预定义值可加快生成首次结果。

信号干扰及失真仿真

在实际条件下进行仿真

为了实现真实的信号生成,R&S®SFD 可以增加干扰,例如噪声、相位噪声、哼声、倾斜甚至是预定义的误码率 (BER)。信号倾斜可以设置为正或负,以仿真或补偿真实同轴 CATV 电缆的频率响应。

R&S®SFD 图形用户界面——信号损伤配置
打开灯箱

R&S®SFD 图形用户界面——信号损伤配置

可以混合并独立设置信号损伤。在主页图形用户界面设定射频倾斜设置 (dB/GHz)。

功能强大的任意波形发生器

内置的任意波形发生器可以生成高达 200 MHz 带宽的信号,并可用于整个下行或上行信号频率范围。最大采样率为 240 Msamples/s,任意波形文件大小高达 256 MB。

R&S®SFD 图形用户界面——任意波形文件
打开灯箱

R&S®SFD 图形用户界面——任意波形文件

来自全球 CATV 网络的常见信号可以用任意波形文件进行调制。出厂预置文件可以通过用户文件进行扩展。

可用选项

软件选件
产品
描述
R&S®SFD-K200

订单号码 2118.7423.02

描述

下行信号发生器

DOCSIS 3.1/3.0,J.83/A/B/C,下行信号调制,47 MHz 至 1218 MHz

R&S®SFD-K201

订单号码 2118.7830.02

描述

增强型下行信号功能

在下行 PLC 中插入 DOCSIS 时间戳、流速指示器以及针对 PLC 上 B、C、D 配置文件传输其他 DPD 消息(FSW 兼容模式)

R&S®SFD-K202

订单号码 2118.8242.02

描述

R&S®SFD-K300

订单号码 2118.7430.02

描述

上行信号发生器

DOCSIS 3.1 和 3.0,上行信号调制,5 MHz 至 204 MHz

R&S®SFD-K3018

订单号码 2118.7452.02

描述

下行信号频率范围扩展至 1794 MHz

R&S®SFD-K1050

订单号码 2118.7446.02

描述

信号干扰仿真

干扰仿真,加性高斯白噪声,相位噪声,交流哼声,预定义的误码率

R&S®CLGD-K2

订单号码 2118.7469.02

描述

基本波形库

常用波形集

通用附件
产品
描述
R&S®ZZA-KNA22

订单号码 1177.8184.00

描述

19" 适配器 BW2010-ADV,2HU 1/2 + 备用

R&S®ZZA-KNA24

订单号码 1177.8149.00

描述

19" 适配器 BW2010 Advanced,机柜 2 HU 1/2 + ½
