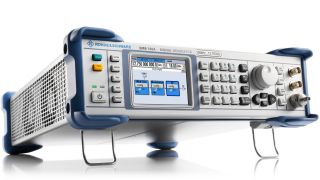

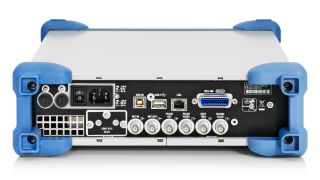

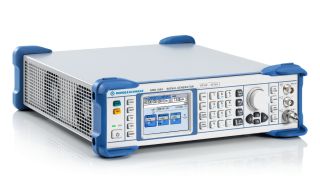

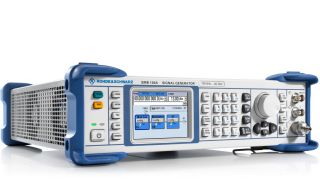

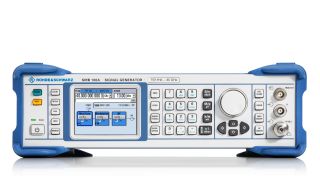

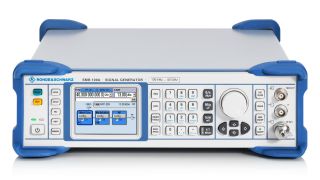

R&S®SMB100A 微波信号发生器,前视图 R&S®SMB100A 微波信号发生器,高前视图 R&S®SMB100A 微波信号发生器,侧视图 R&S®SMB100A 微波信号发生器,后视图 R&S®SMB100A 微波信号发生器,主视图 R&S®SMB100A 微波信号发生器,主视图 R&S®SMB100A 微波信号发生器,应用图像 R&S®SMB100A 微波信号发生器,应用图像

主要特点

  • 频率范围:100 kHz 至 12.75/20/31.8/40 GHz
  • 10 GHz、20 kHz 偏移时,SSB 相位噪声为 –108 dBc(典型值)
  • 10 GHz、30 MHz 偏移时,宽带噪声为 –138 dBc
  • 输出功率高达 +27 dBm(测量值)
  • 支持调幅、调频、调相和脉冲调制等模拟调制

多功能,紧凑,最高 40 GHz;使用上变频器时可达 170 GHz

紧凑型多功能 R&S®SMB100A 微波信号发生器的频率最高为 40 GHz,提供出色的频谱纯度和高输出功率。此外,该发生器还易于操作、功能全面且拥有成本较低。R&S®SMB100A 具有在同类产品中出类拔萃的微波特性,是一款出色的通用仪器。仪器具有非凡特性,而且体积小、重量轻,非常适合广泛的应用。R&S®SMB100A 非常适用于开发、生产和维修,以及需要模拟微波信号的应用。



特性和优点

中端产品中的一流信号质量

极低的 SSB 相位噪声、谐波、非谐波和宽带噪声

  • 极低的 SSB 相位噪声,典型值为 –108 dBc(10 GHz、20 kHz 载波偏移、1 Hz 测量带宽)
  • 针对 20 GHz 以及 40 GHz 型号的可选内部低谐波滤波器,在 150 MHz 以上的频率下能够将谐波降至 -50 dBc 以下
  • 基于 DDS 的创新合成器概念

不同频率下的 SSB 相位噪声
打开灯箱

不同频率下的 SSB 相位噪声

使用 R&S®SMB-B1H OCXO 选件测量的 12.75/20/31.8/40 GHz 型号的 SSB 相位噪声。

高输出功率及高电平范围

输出功率高达 +27 dBm(测量值)

R&S®SMB100A 12.75 GHz 型号标配出色的信号质量和超过 +18 dBm 的高输出功率。测量的最大可用输出功率高达 +27 dBm。
用于 20 GHz 型号的 R&S®SMB-B31 高功率选件可提供高达 +19 dBm 的指定输出功率,用于 40 GHz 型号的 R&S®SMB-B32 高功率选件可在高达 20 GHz 和 40 GHz 的宽频率范围内提供 +16 dBm 功率。

测量的最大输出功率
打开灯箱

测量的最大输出功率

不同频率下的最大可用输出电平(测量值)。

适合生产应用

轻松集成到测试系统,具备创新的操作特性

  • 无磨损电子衰减器(最高 12.75 GHz),确保长使用寿命
  • 出色的电平准确性及可重复性,以确保高产量
  • 无论装置中出现何种无用功率偏移,闭环功率控制均可确保被测设备获得高度准确且稳定的输入功率
  • 很短的频率和电平稳定时间(在列表模式下可进一步缩短)
  • 低功耗

闭环功率控制
打开灯箱

闭环功率控制

无论出现何种无用功率偏移或装置变化,闭环功率控制均可确保被测设备获得高度准确且稳定的输入功率

支持 R&S®NRP-Zxx 功率探头

R&S®SMB100A 支持多种 R&S®NRP-Zxx USB 功率探头。

R&S®NRP-Z55 功率探头能够将发生器的频率和电平范围扩展到最高 40 GHz。配备此功率探头后,R&S®SMB100A 自动执行外部电平校正,并精准测量测试装置的功率。

R&S®NRP 功率探头连接性
打开灯箱

R&S®NRP 功率探头连接性

R&S®SMB100A 连接罗德与施瓦茨功率探头

UCOR(用户校正)

补偿外部频率响应

被测设备通常通过长电缆或其他频率相关组件连接至信号发生器,需要补偿频率响应。为此,R&S®SMB100A 提供了用户校正 (UCOR) 功能。与 R&S®NRP 功率探头结合使用,便可一键自动测定 UCOR 值。UCOR 功能可以在全新参考面提供获得频率响应补偿的射频信号。

装置和 UCOR 功能
打开灯箱

装置和 UCOR 功能

使用电缆和其他组件(具有频率响应)连接 R&S®SMB100A 和被测设备时,会显示相对输出功率。

频率从 50 GHz 扩展至 170 GHz

  • R&S®SMB100A 信号发生器 (≥ 20 GHz) 和通过 USB 控制的 R&S®SMZ 外部倍频器
  • 内部衰减器(机械或电子控制)可以和倍频器集成到同一外壳

R&S®SMB100A 和 R&S®SMZ110
打开灯箱

R&S®SMB100A 和 R&S®SMZ110

R&S®SMB100A 微波信号发生器(20 GHz 或 40 GHz)、R&S®SMZ110 倍频器和内置电子控制衰减器。

闭环功率控制

定向耦合器和连接的 R&S®NRP-Zxx 功率探头可用于测量被测设备输入功率。R&S®NRP-Z28 电平控制探头可以有效代替定向耦合器。R&S®NRP-Zxx 或 R&S®NRP-Z28 测量结果馈送回 R&S®SMB100A,发生器会立即调整输出功率以对有用电平和测量电平的差值进行补偿。

R&S®SMB100A 闭环功率控制
打开灯箱

R&S®SMB100A 闭环功率控制

无论装置中出现何种无用功率偏移或变化,闭环功率控制均可确保被测设备获得高度准确且稳定的输入功率

可用选项

频率选件
产品
描述
R&S®SMB-B112

订单号码 1407.2109.02

描述

100 kHz 至 12.75 GHz,带电子步进衰减器

R&S®SMB-B112L

订单号码 1407.2150.02

描述

100 kHz 至 12.75 GHz,无步进衰减器

R&S®SMB-B120

订单号码 1407.2209.02

描述

100 kHz 至 20 GHz,带机械步进衰减器

R&S®SMB-B120L

订单号码 1407.2250.02

描述

100 kHz 至 20 GHz,无步进衰减器

R&S®SMB-B131

订单号码 1407.2280.02

描述

100 kHz 至 31.8 GHz,带机械步进衰减器

R&S®SMB-B140

订单号码 1407.2309.02

描述

100 kHz 至 40 GHz,带机械步进衰减器

R&S®SMB-B140L

订单号码 1407.2350.02

描述

100 kHz 至 40 GHz,无步进衰减器

R&S®SMB-B140N

订单号码 1407.2380.02

描述

100 kHz 至 40 GHz,带机械步进衰减器,最小脉冲宽度限制

参考振荡器选件
产品
描述
R&S®SMB-B1

订单号码 1407.3005.02

描述

OCXO 参考振荡器

R&S®SMB-B1H

订单号码 1407.3070.02

描述

高性能 OCXO 参考振荡器

模拟调制选件
产品
描述
R&S®SMB-K21

订单号码 1407.3811.02

描述

脉冲调制器

用于 R&S®SMB-B112/-B112L/-B120/-B120L/-B131/-B140/-B140N/-B140L;

R&S®SMB-K23

订单号码 1407.3786.02

描述

脉冲发生器

R&S®SMB-K27

订单号码 1407.3828.02

描述

脉冲串

需要 R&S®SMB-K23 选件,只用于序列号 > 102400 的仪器。

性能增强选件
产品
描述
R&S®SMB-B31

订单号码 1407.1260.02

描述

大功率,50 MHz 至 20 GHz(用于 R&S®SMB-B120/-B120L)

R&S®SMB-B32

订单号码 1407.1360.02

描述

High Power, 50 MHz to 40 GHz (only available with R&S®SMB-B131/-B140/-B140N/-B140L)

R&S®SMB-B25

订单号码 1407.1660.02

描述

谐波滤波器(用于 R&S®SMB-B120/-B120L)

R&S®SMB-B26

订单号码 1407.1760.02

描述

谐波滤波器(用于 R&S®SMB-B131/-B140/-B140L/-B140N)

特性和功能
产品
描述
R&S®SMB-B30

订单号码 1407.1160.02

描述

反向功率保护(用于 R&S®SMB-B112、R&S®SMB-B112L)

附件
产品
描述
R&S®ZZA-S234

订单号码 1109.4493.00

描述

19" 机架适配器

R&S®TS-USB1

订单号码 6124.2531.00

描述

针对 RS-232 远程控制的 USB 串行适配器

文件
产品
描述
R&S®DCV-2

订单号码 0240.2193.09

描述

校准值文件

R&S®ACASMB100A

订单号码 3596.9508.03

描述

认证校准

请求信息
