R&S®TMU9evo 风冷特高频发射机

精益求精,追求卓越

R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱
R&S®TMU9evo 风冷特高频发射机
打开灯箱

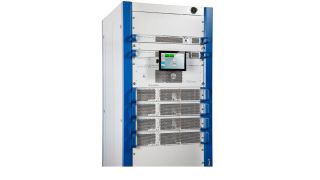

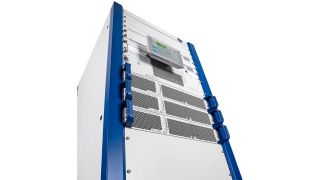

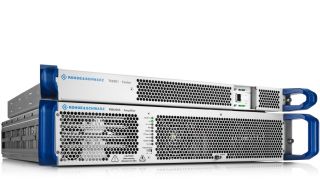

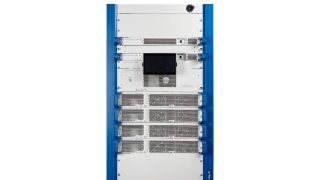

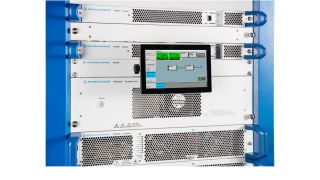

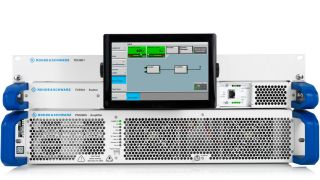

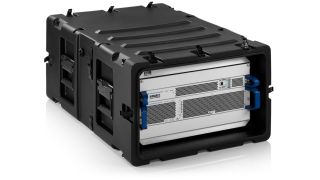

R&S®TMU9evo 风冷特高频发射机,前视图 R&S®TMU9evo 风冷特高频发射机,侧视图 R&S®TMU9evo 风冷特高频发射机,侧视图 R&S®TMU9evo 风冷特高频发射机,主视图 R&S®TMU9evo 风冷特高频发射机,侧视图 R&S®TMU9evo 风冷特高频发射机,前视图 R&S®TMU9evo 风冷特高频发射机,侧视图 R&S®TMU9evo 风冷特高频发射机,前视图

主要特点

  • 操作简单
  • 高达 40% 的一流整机效率
  • 发射机设计确保长使用寿命
  • 保证服务质量
  • 应对未来挑战
  • 五重效益

将运营成本降至最低是我们的追求

R&S®TMU9evo 风冷特高频发射机将中功率发射机系列成功提升到更高的开发水平。
整机效率和可靠性进一步提高,网络运营商能够在整个产品生命周期内节约更多的运营成本。

特性和优点

最大程度节约能源成本

R&S®TMU9evo 特高频发射机的整机效率高达 40%。凭借多年的丰富经验和坚持不懈的开发工作,罗德与施瓦茨已经完全掌握并能充分利用 Doherty 技术。

打开灯箱

最低基础设施需求

R&S®TMU9evo 对冷却和能源要求较低,因此非常适用于缺乏典型发射机站点基础设施的环境。R&S®TMU9evo 发射机设计紧凑,可轻松安装到现有机架中;它具有一流的整机效率,无需采用成本高昂的冷却系统。

打开灯箱

经过现场验证的可靠性

全世界有成千上万台 R&S®TMU9 发射机被投入使用。这些发射机时刻以卓越性能证实一流可靠性。R&S®TMU9evo 同样非常可靠,将停机时间缩至最短。

打开灯箱

自适应效率优化

应对不断变化的操作环境时,罗德与施瓦茨的智能效率优化机制可实现效率最大化,只需一键操作或自适应操作。更改通道或调整发射机功率时,效率优化机制可始终确保将能源成本降至最低。

打开灯箱

可靠的优势

R&S®TMU9evo 具备市场领先的 R&S®TMU9 平台的所有可靠优势。该发射机秉承成功、成熟的 R&S®MultiTX 多机合一理念和 R&S®Tx9 系列的直观图形用户界面 (GUI),非常贴合用户要求和工作习惯。

打开灯箱

内置性能分析功能

R&S®TMU9evo 通过内置分析功能跟踪性能情况,例如效率测量和集成式信号分析功能。这些功能可通过自监测功能即时反馈操作参数。这可以确保始终如一的优质服务,并将运营成本降至最低。

打开灯箱

面向未来的激励器技术

罗德与施瓦茨激励器解决方案依赖于纯软件方法,顺利协助网络运营商为 ATSC 3.0 作好准备。它基于高性能 IT 服务器,使网络运营商能够合理利用标准的全部功能,并灵活响应未来的信号处理要求。

打开灯箱

轻松高效地操作

R&S®TMU9evo 图形用户界面 (GUI) 有助于广播电视网络运营商方便地安装、调试和操作发射机。结合智能效率优化机制,这可以降低网络运营商成本,并最大限度地提高操作便捷性。

打开灯箱

可用型號

可用型號
型号
型号(输出功率)
机架配置
功放模块数量
尺寸(高 x 宽 x 深)
多机合一系统(一个机架中集成多台发射机)

R&S®TMU9evo - 400 W

型号(输出功率)
400 W
机架配置
可选
功放模块数量
1
尺寸(高 x 宽 x 深)
483 mm x 132 mm (3 HU) x 550 mm
19 in x 5.2 in x 21.65 in
多机合一系统(一个机架中集成多台发射机)
最多 6 个

R&S®TMU9evo - 750 W

型号(输出功率)
750 W
机架配置
可选
功放模块数量
2
尺寸(高 x 宽 x 深)
483 mm × 352 mm (8 HU) × 550 mm
19 in x 13.9 in x 21.65 in
多机合一系统(一个机架中集成多台发射机)
最多 4 个

R&S®TMU9evo - 1.15 kW

型号(输出功率)
1.15 kW
机架配置
可选
功放模块数量
3
尺寸(高 x 宽 x 深)
483 mm × 440 mm (10 HU) × 550 mm
19 in x 17.3 in x 21.65 in
多机合一系统(一个机架中集成多台发射机)
最多 3 个

R&S®TMU9evo - 2.3 kW

型号(输出功率)
2.3 kW
机架配置
1 个机架
功放模块数量
6
尺寸(高 x 宽 x 深)
600 mm × 2000 mm (42 HU) × 800 mm
23.6 in x 78.7 in x 31.49 in
多机合一系统(一个机架中集成多台发射机)

R&S®TMU9evo - 3.0 kW

型号(输出功率)
3.0 kW
机架配置
1 个机架
功放模块数量
8
尺寸(高 x 宽 x 深)
600 mm × 2000 mm (42 HU) × 800 mm
23.6 in x 78.7 in x 31.49 in
多机合一系统(一个机架中集成多台发射机)

R&S®TMU9evo - 4.5 kW

型号(输出功率)
4.5 kW
机架配置
2 个机架
功放模块数量
12
尺寸(高 x 宽 x 深)
1200 mm × 2000 mm (42 HU) × 800 mm
47.24 in x 78.74 in x 31.49 in
多机合一系统(一个机架中集成多台发射机)

R&S®TMU9evo - 6.0 kW

型号(输出功率)
6.0 kW
机架配置
2 个机架
功放模块数量
16
尺寸(高 x 宽 x 深)
1200 mm × 2000 mm (42 HU) × 800 mm
47.24 in x 78.74 in x 31.49 in
多机合一系统(一个机架中集成多台发射机)
