R&S®TH1 液冷发射机系列

塑造可持续发展的互联未来

R&S®TH1 液冷发射机系列
打开灯箱
R&S®TH1 液冷发射机系列
打开灯箱
R&S®TH1 液冷发射机系列
打开灯箱

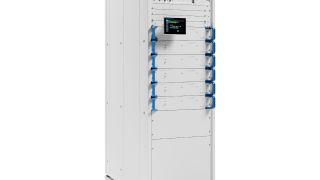

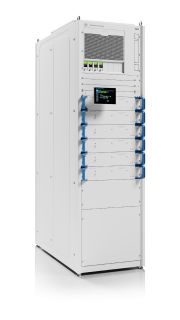

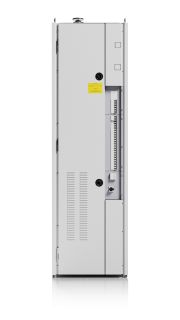

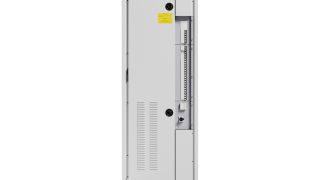

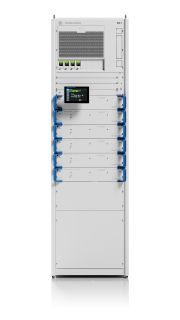

R&S®TH1 液冷发射机系列,低前视图 R&S®TH1 液冷发射机系列,侧视图 R&S®TH1 液冷发射机系列,低后视图

主要特点

  • 碳足迹比已安装设施低 50%
  • 5G 广播:商业部署的优选解决方案
  • 能源成本降低了 15%
  • 优越的放大器设计:装置完全密封,无风扇
  • R&S 服务包保障安全操作

下一代发射机系列

R&S®TH1 是罗德与施瓦茨全新推出的液冷型大功率发射机。这款产品专为互联世界中的可持续广播应用而设计,助力广播网络运营商将碳足迹、运营成本和新媒体消费习惯等严峻挑战变成机遇。 和目前市面上的优质发射机相比,这款新发射机的整机能耗降低了 15%。它还适合新的 5G 广播应用,创造了新的盈利机遇,例如支持将数据直接传输至移动设备以及 IoT 和汽车电子应用。

特性和优点

可持续性

减少碳排放

R&S®TH1 发射机显著降低了整机能耗和碳足迹。减少排放有助于广播公司遵循新发布的环境法规。

  • 和其他效率高的发射机相比,整机能耗降低了 15%
  • 碳足迹比已安装设施的平均值低 50%
  • 精密的液冷型设计将 90% 的废热排放到外部环境中,进一步减少了碳足迹

减少碳足迹
打开灯箱

减少碳足迹

面向未来

创造新的商机

R&S®TH1 支持 5G 广播,可用于汽车电子和物联网领域的新广播应用,为网络运营商创造了新的商机,协力推动未来的繁荣发展。

  • 全新软件定义的激励器平台,高度灵活且可扩展
  • 为 DTV 标准扩展作好准备
  • 5G 广播:商业部署的优选解决方案

新的广播应用
打开灯箱

新的广播应用

效率

出色的工作效率

R&S®TH1 降低了操作的复杂程度,并支持自动化运行。仪器具备出色的整机效率,显著减少了运营成本和各种支出。

  • 和其他效率高的发射机相比,能源成本降低了 15%
  • 能源成本比已安装设施的平均值低 50% 以上
  • 连续自主监测关键性能指标
  • 通过智能手机和平板电脑方便地进行维护

高效的广播应用
打开灯箱

高效的广播应用

恢复性

可靠的自主操作设计

R&S®TH1 旨在保障长使用寿命和自主操作。仪器静音运行,您可以专注于其他工作。

  • 可靠的放大器设计——装置完全密封,无风扇
  • 分布式系统控制
  • 根据操作限值自动调整

即使在恶劣条件下也能可靠运行
打开灯箱

即使在恶劣条件下也能可靠运行

可用性

提供附加价值的终身服务

罗德与施瓦茨深知发射机运营商的运营目标,并对此提供大力支持。罗德与施瓦茨的终身服务可保障我们的发射机在整个使用周期内具备出色的可用性。

  • 罗德与施瓦茨服务包保障安全操作
  • 提供软件维护和备件
  • 优先获得罗德与施瓦茨专家的帮助

R&S® 终身服务
打开灯箱

R&S® 终身服务

可用型號

可用型號
型号
功放模块数量
尺寸(高 x 宽 x 深)
多机合一系统(一个机架中集成多台发射机)

R&S®TH1 1.2kW UHF

功放模块数量
1
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 4 个发射机

R&S®TH1 2.4kW UHF

功放模块数量
2
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 4 个发射机

R&S®TH1 3.6kW UHF

功放模块数量
3
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 4 个发射机

R&S®TH1 4.8kW UHF

功放模块数量
4
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 3 个发射机

R&S®TH1 6.0kW UHF

功放模块数量
5
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 2 个发射机

R&S®TH1 7.2kW UHF

功放模块数量
6
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
最多 2 个发射机

R&S®TH1 9.6kW UHF

功放模块数量
8
尺寸(高 x 宽 x 深)
2000 × 600 × 1100 mm
(78.74 × 23.62 × 43.31 in)
多机合一系统(一个机架中集成多台发射机)
