R&S®PKU100-I Satellite uplink amplifier

适用于 Ku 频段的卫星上行链路放大器

R&S®PKU100-I Satellite uplink amplifier
打开灯箱
R&S®PKU100-I Satellite uplink amplifier
打开灯箱
R&S®PKU100-I Satellite uplink amplifier
打开灯箱

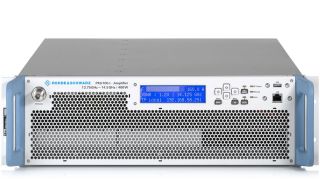

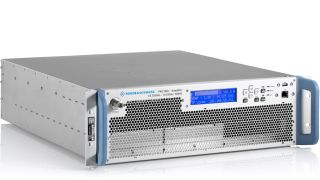

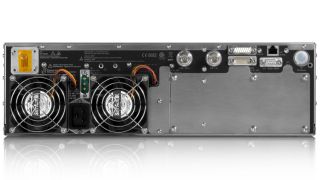

R&S®PKU100,前视图 R&S®PKU100,侧视图 R&S®PKU100,后视图

主要特点

  • FR1 频率范围介于 12.75 GHz 至 13.25 GHz
  • FR2 频率范围介于 13.75 GHz 至 14.5 GHz
  • 室内和室外型号的射频饱和功率可达 400 W 和 750 W
  • 氮化镓技术
  • 独特的自适应线性化,上变频器可用于 L 频段信号
  • 3 年延长保修

紧凑轻量化设计,提供独特的信号质量和效率

R&S®PKU100 固态功率放大器系列适用于 Ku 频段,峰值功率达 400 W 和 750 W, 兼具一流效率和紧凑设计。强大的可选自适应线性化功能创新地改进射频参数。因此,此系列放大器集成固态放大器和电子管放大器的优点。

特性和优点

紧凑、轻巧

提供室内和室外型号

400 W 室内型号仅重 18.3 kg(含电源),且仅需 3 RU 机架空间。坚固耐用、可防风雨的室外型号符合 IP65 标准,重量仅为 23 kg,并且可以直接安装到天线上。同等固态放大器通常要重一倍。高功率放大器采用固态技术提供 750 W 饱和功率,且外形极为紧凑,在市场上独一无二。

R&S®PKU100,室内型号,400 W
打开灯箱

R&S®PKU100,室内型号,400 W

R&S®PKU100 可安装在 3 HU 机架空间,重量仅为 18.3 kg

自适应线性化

极其出色的频谱纯度

这款高功率放大器率先提供适用于 Ku 频段的自适应线性化功能。这可以最大限度地减少互调产物,优化功率效率。线性化器可自动适应并提供一流的信号性能,无需任何用户交互或调整。此功能可显著改善传输质量,尤其是对于高阶调制方案而言。

自适应线性化
打开灯箱

自适应线性化

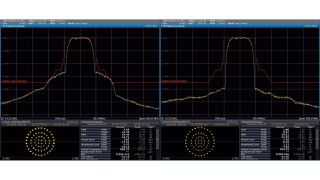

针对 64APSK 调制未应用(左)和应用(右)自适应线性化的频谱、误差矢量幅度 (EVM) 和/或调制误差率 (MER)。

灵活的电源性能

电源冗余

放大器可以选择安装冗余电源, 甚至可以由不同的电源设备供应这些电源。这样,即使电源网络关闭或电源模块出现故障,也能保证高可用性。室内型号支持热插拔电源,室外型号具有易于更换的电源模块。R&S®PKU100 的另一个独特之处在于可以使用 48 V 直流电源,非常有利于移动装置。

R&S®PKU100 后视图,室内型号,400 W
打开灯箱

R&S®PKU100 后视图,室内型号,400 W

冗余电源可在工作期间轻松切换

功率效率媲美电子管放大器

功率效率超过 20%

放大器采用创新的固态设计,实现可与行波管放大器 (TWTA) 相媲美的一流效率。例如,400 W 型号仅需使用 1300 W 主电源,即可提供 180 W 射频平均功率。

不同放大器的效率
打开灯箱

不同放大器的效率

此图将固态功率放大器和行波管放大器进行对比,显示当前可用放大器的典型效率。

可用型号

可用型号
型号
频率范围
外壳类型
功率等级

R&S®PKU100-I400

订单号码 2510.7005.41

频率范围
FR1:12.75 GHz 至 13.25 GHz
FR2:13.75 GHz 至 14.5 GHz
外壳类型
室内
功率等级
400 W

R&S®PKU100-I750

订单号码 2510.7005.81

频率范围
FR1:12.75 GHz 至 13.25 GHz
FR2:13.75 GHz 至 14.5 GHz
外壳类型
室内
功率等级
750 W

可用选项

硬件选件
产品
描述
R&S®PKU-B040

订单号码 2510.9420.40

描述

自适应线性化,用于带 Ku 频段输入端的 400 W 室内放大器

R&S®PKU-B075

订单号码 2510.9420.75

描述

自适应线性化,用于带 Ku 频段输入端的 750 W 室内放大器

R&S®PKU-B200

订单号码 2510.9420.02

描述

上变频器,用于带 L 频段输入端的室内放大器

软件选件
产品
描述
R&S®PKU-K01

订单号码 2510.9772.02

描述

OCXO

R&S®PKU-K40

订单号码 2510.9789.02

描述

自适应线性化,用于带 L 频段输入端的 400 W 室外放大器

R&S®PKU-K75

订单号码 2510.9795.02

描述

自适应线性化,用于带 L 频段输入端的放大器

了解更多

何去何从?卫星上行链路放大器 – 白皮书

目前,许多大功率 Ku 频段放大器都是电子管放大器,使用晶体管的大功率放大器才刚面世。阅读《何去何从?卫星上行链路放大器——TWTA 和 SSPA:未来将如何?》白皮书,了解更多信息。

现在下载

卫星上行链路放大器的未来 – 网络研讨会

本网络研讨会讨论了不同卫星上行链路放大器的优缺点,介绍了当前市场面临的挑战,并探讨了对未来趋势的重要见解。
