R&S®HX002H3/H3M 带天线调谐器的高频偶极子

1.5 MHz 至 30 MHz

R&S®HX002H3/H3M  带天线调谐器的高频偶极子
打开灯箱
R&S®HX002H3/H3M  带天线调谐器的高频偶极子
打开灯箱
R&S®HX002H3/H3M  带天线调谐器的高频偶极子
打开灯箱

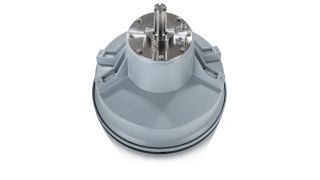

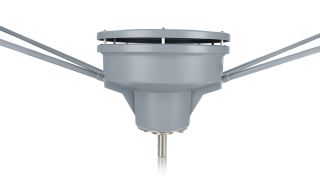

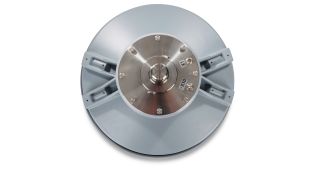

带天线调谐器的 R&S®HX002H3/H3M 高频偶极子,前视图 带天线调谐器的 R&S®HX002H3/HX002H3M 高频偶极子,底视图 带天线调谐器的 R&S®HX002H3/HX002H3M 高频偶极子,高底视图

主要特点

  • 适用于最高 150 W 发射机功率
  • 高角度辐射全向覆盖 (NVIS),无跳跃区
  • 集成式天线调谐器支持快速跳频
  • 尺寸紧凑,可以靠近周围的天线装置
  • 单个支撑天线杆

适用于固定或船载应用

R&S®HX002H3/H3M 高频偶极子配有天线调谐器 (ATU),能够出色地覆盖所有距离范围。在 1000 km 的距离范围内,跳跃区会降低拉杆天线的发射可靠性,所以此天线特别适用于中短距离的无线电通信应用。全自动 ATU 可为发射系统提供出色的匹配特性,便于充分利用天线的射频输出功率。天线结合 R&S®GX002,可无缝集成到 R&S®Series 4100 和 M3TR 无线电系统。第三方系统控制器可通过以太网运行天线;天线也可全自动运行,减少和第三方收发信机的连接。

特性和优点

小型天线提供大射频功率

R&S®HK002H3 具备基于偶极子的 5 米长小型辐射器。由于船舶空间有限,因此 R&S®HK002H3M 偶极子的长度更短,仅为 2.5 m。集成式全自动天线调谐器能够完善地匹配辐射器和发射系统,便于充分利用最高 150 W 的射频输出功率。

高效

R&S®HX002H3/H3M 仅使用低损耗电容器和空心线圈实现匹配,无需采用阻尼电阻结构等衰减设计。这能够提高效率,并以更大功率发送电波。

接口仅使用高频电缆

R&S®HX002H3 和 R&S®HX002H3M 具备单独的电缆接口。只需一根电缆即可传输所有信号(射频、电源和控制信号),让安装和系统集成更加简单、可靠。

兼容广泛的收发信机

R&S®GX002 接合装置全面控制 R&S®HX002H3/H3M 并为其供电。接合装置能够处理与收发信机的所有通信。接合装置采用 LAN、同轴和光纤端口等通用接口,可用于新型短波收发信机、传统应用中使用的旧款罗德与施瓦茨收发信机和其他制造商的收发信机。

自主模式实现全自动化操作

R&S®GX002 接合装置和 R&S®HX002H0 共同支持“自主模式”操作。这种全自动化操作仅需少量控制信号,无需调整控制协议即可使用第三方收发信机。

可用型號

可用型號
型号
应用
频率范围
最大允许的输入功率
尺寸(长 x 宽 x 高,包括天线杆)
重量

R&S®HX002H3 带天线调谐器的高频偶极子

应用
Stationary land based
频率范围
1.5 Mhz - 30 Mhz
最大允许的输入功率
100 W CW
150 W PEP
尺寸(长 x 宽 x 高,包括天线杆)
approx. 9.5 m x 4 m x 1.8 m
重量
approx. 50 kg

R&S®HX002H3M 带天线调谐器的高频偶极子

应用
For naval use
频率范围
1.5 MHz - 30 Mhz
最大允许的输入功率
100 W CW
150 W PEP
尺寸(长 x 宽 x 高,包括天线杆)
approx. 4.5 m x 2.5 m x 1.8 m
重量
approx. 37.5 kg

可用选项

附件
产品
描述
R&S®KM451B1

订单号码 4028.3351.02

描述

格子形天线杆,长度:10 m(用于屋顶安装)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,10 m,含拉索和安全攀爬设备

R&S®KM451B2

订单号码 4028.3400.02

描述

格子形天线杆,长度:15 m(标配)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,15 m,含拉索和安全攀爬设备

R&S®KM002Z3

订单号码 4115.9540.02

描述

适用于 R&S®KM451B1/B2 的隔离绳组件;
与 R&S®HX002H0、R&S®HX002H1/H2/H3 结合使用

R&S®KM451Z5

订单号码 4039.8308.03

描述

天线杆适配器

适用于 R&S®HX002H3 的天线杆适配器,可用于 R&S®KM451B1/B2

R&S®KM002Z4

订单号码 4115.9740.03

描述

可倾斜天线杆

适用于 R&S®HX002H1、R&S®HX002H3 和 R&S®HX002A1 天线,5 m,含拉索

通用
产品
描述
R&S®KM002Z4-K

订单号码 4115.9811.02

描述

倾斜功能升级套件;选件适用于 5 m R&S®KM002Z4 天线杆
