R&S®HX002H0 带天线调谐器的高频偶极子

2 MHz 至 30 MHz,1 kW 发射功率,适用于固定应用

R&S®HX002H0 带天线调谐器的高频偶极子

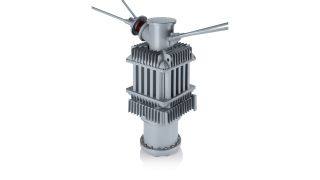

带天线调谐器的 R&S®HX002H0 高频偶极子,前视图


  • 小型天线提供大射频功率(1 kW 功率,5 m 辐射器半径)
  • 高效(无电阻加载)
  • 接口仅使用射频电缆
  • 通用收发信机控制接口和电源
  • 自主模式实现全自动化操作

提供 1 kW 发射功率,适合固定应用

R&S®HX002H0 高频偶极子配有天线调谐器 (ATU),能够出色地覆盖所有距离范围。在 1000 km 的距离范围内,跳跃区会降低垂直拉杆天线的发射可靠性,所以此天线特别适用于中短距离的无线电通信应用。天线集成的全自动 ATU 可为发射系统提供出色的匹配特性,便于充分利用射频输出功率。偶极子直接在馈电点建立匹配网络,实现出色的天线效率。



R&S®HK002H0 具备基于偶极子的五米长小型辐射器。集成式全自动天线调谐器能够完善地匹配辐射器和发射系统,便于充分利用最高 1 kW 的射频输出功率。


R&S®HX002H0 仅使用低损耗电容器和空心线圈实现匹配,未采用阻尼电阻结构等衰减器,因此能够提高效率,并以更大功率发送电波。


R&S®HX002H0 具备单独的电缆接口。只需一根电缆即可传输所有信号(射频、电源和控制信号),让安装和系统集成更加简单、可靠。


R&S®GX002 接合装置全面控制 R&S®HX002H0 并为其供电。接合装置能够处理与收发信机的所有通信。接合装置采用通用 LAN、同轴和光纤端口接口,可用于新型短波收发信机、传统应用中使用的旧款罗德与施瓦茨收发信机和其他制造商的收发信机。


R&S®GX002 接合装置和 R&S®HX002H0 共同支持“自主模式”操作。这种全自动化操作仅需少量控制信号,无需调整控制协议即可使用第三方收发信机。



订单号码 4115.9005.02


天线杆,5 m


订单号码 4115.9505.02




订单号码 4028.3351.02


格子形天线杆,长度:10 m(用于屋顶安装)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,10 m,含拉索和安全攀爬设备


订单号码 4028.3400.02


格子形天线杆,长度:15 m(标配)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,15 m,含拉索和安全攀爬设备


订单号码 4115.9540.02


适用于 R&S®KM451B1/B2 的隔离绳组件;
与 R&S®HX002H0、R&S®HX002H1/H2/H3 结合使用


订单号码 4115.9640.02
