R&S®FT224 甚高频/特高频双工器

适用于甚高频和特高频频段

R&S®FT224 甚高频/特高频双工器
打开灯箱

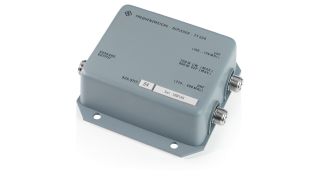

R&S®FT224 甚高频/特高频双工器,侧视图

主要特点

  • 低通带衰减
  • 高阻带衰减
  • 200 W 连续波功率/800 W 峰值包络功率
  • 紧凑设计
  • 应用范围广泛

可用于将宽带天线连接至具有单独的甚高频和特高频输出的收发信机。

R&S®FT224 甚高频/特高频双工器可将 R&S®HK014E 甚高频/特高频同轴偶极子等宽带天线连接至具有单独的甚高频和特高频输出的收发信机,或连接至单独的甚高频和特高频收发信机。双工器的最大输入功率为 200 W(连续波功率)和 800 W(峰值包络功率)。操作单通道或同时操作双通道时,此数值均适用。

特性和优点

将多个天线连接到一个收发信机。

确保系统设计简单并可节省成本。

R&S®FT224 甚高频/特高频双工器可将甚高频天线和特高频天线连接至一个收发信机,无需进行切换,因而增强了性能。使用横截面较大的长连接电缆以尽量减少电缆损耗时,双工器只需使用一个馈线电缆,能够显著降低成本。

将一个天线连接至单独的收发信机。

确保系统设计性能优异,并可节省成本。

R&S®FT224 双工器可将 R&S®HK014E 甚高频/特高频同轴偶极子等宽带天线连接至具有单独的甚高频和特高频输出的收发信机,或连接至单独的甚高频和特高频收发信机。

可用型號

可用型號
型号
甚高频频段
特高频频段
最大输入功率
带保形涂层的印刷电路板

R&S®FT224

订单号码 0525.5117.04

甚高频频段
100 MHz - 174 MHz
特高频频段
225 MHz - 450 MHz
最大输入功率
200 W 连续波功率,800 W 峰值包络功率
带保形涂层的印刷电路板

R&S®FT224

订单号码 0525.5117.05

甚高频频段
100 MHz - 174 MHz
特高频频段
250 MHz - 450 MHz
最大输入功率
200 W 连续波功率,800 W 峰值包络功率
带保形涂层的印刷电路板
