PCI Express 1.1/2.0/3.0 oscilloscope software

一致性测试

Oscilloscope Software RTX-K81
打开灯箱
Oscilloscope Software RTX-K81
打开灯箱
Oscilloscope Software RTX-K81 Oscilloscope Software RTX-K81

主要特点

  • Test solution for PCI Express 1.1, 2.0 and 3.0 systems and add-in cards
  • 基于符合 PCI-SIG 标准的后处理分析软件选件
  • 测试信号质量和参考时钟
  • 分步向导指南
  • 清晰且全面的测试记录
  • R&S oscilloscopes | Engineered for multi-domain challenges
  • R&S oscilloscopes |High definition mode | See more with up to 16-bit resolution

示波器软件选件

Rohde & Schwarz offers automated compliance test solution of PCI Express Gen 1.1, 2.0 and 3.0 interfaces. The test wizard of the Rohde & Schwarz ScopeSuite compliance test software guides the user via illustrated step-by-step instructions. The option supports add-in card and system motherboard testing. It is based on the PCI-SIG standard post processing analysis software and utilizes PCI-SIG test fixtures. A configurable test report documents the test results.

特性和优点

完整的测试解决方案

The complete test solution covers all relevant test cases for PCI Express Gen 1.x, 2.0 and 3. interfaces (boards and cards). The integrated generator option RTO/RTP-B6 switches the DUT in different compliance test modes. Test fixtures are available from the PCI SIG organization (www.pcisig.com).

示波器软件选件 RTx-K81
打开灯箱

在 R&S®ScopeSuite 自动化一致性测试软件选件首页,选择 PCIe 一致性测试项目

提供测试步骤指南,易于使用

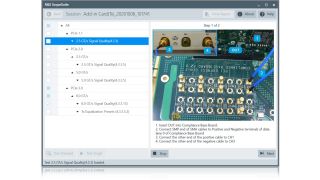

The R&S ScopeSuite compliance software is a fully guided test for performing PCIe compliance test. Detailed, image-based instructions make it easy to connect the oscilloscope and the probes to the test fixture and the device under test.

示波器软件选件 RTx-K81
打开灯箱

逐步完成自动化测试程序,并充分利用分步指南

强大的报告功能

测试结果详尽记录在 R&S®ScopeSuite 创建的报告中。测试报告可以包含数字结果数据或示波器屏幕截图,具体取决于用户的偏好设置。可用的输出格式包括 PDF、DOC 和 HTML。

示波器软件选件 RTx-K81
打开灯箱

详细报告包括设置参数、测量结果和屏幕截图

可用的型号


  • 选件名称

    R&S®RTP-K83

    订单号码 1800.6954.02

    HD 模式支持
    PCIe Gen 1.x/2.0/3.0
    完整测试解决方案
    自动化测试
    手动测试
    步骤指南
    pdf 和 rtf 格式的报告
    基本单元
    R&S®RTP
  • 选件名称

    R&S®RTP-K81

    订单号码 1337.8885.02

    HD 模式支持
    PCIe Gen 1.x/2.0
    完整测试解决方案
    自动化测试
    手动测试
    步骤指南
    pdf 和 rtf 格式的报告
    基本单元
  • 选件名称

    R&S®RTO-K81

    订单号码 1326.0920.02

    HD 模式支持
    PCIe Gen 1.x/2.0
    完整测试解决方案
    自动化测试
    手动测试
    步骤指南
    pdf 和 rtf 格式的报告
    基本单元

Application videos

Application video: Eye diagram analysis of the PCIe Gen 3 CPU interface
Eye diagram analysis of the PCIe Gen 3 CPU interface

In-depth analysis of an eye diagram of the high-performance CPU PCIe Gen 3 interface.

More information

Signal integrity debugging
Signal integrity debugging

Shown on a USB 3.1 Gen1 device.

More information
