MIPI high-speed

触发和解码示波器软件包

MIPI high-speed
打开灯箱
MIPI high-speed
打开灯箱
MIPI high-speed
打开灯箱
MIPI M-PHY、D-PHY,软件 MIPI M-PHY、D-PHY,软件 MIPI M-PHY、D-PHY,屏幕截图

主要特点

  • 支持 MIPI D-PHY 和 M-PHY 高速协议
  • 自动检测数据速率和阈值,可在数秒内完成总线配置
  • 解码后的协议以颜色编码的蜂巢形式显示在波形图或解码表中
  • 对帧起始、帧内容和错误等协议细节进行可靠的触发
  • 强大的搜索和导航功能
  • 多域图标

简介

R&S®RTO 和 RTP 示波器配备选件包后,支持对基于 MIPI D-PHY 的 DSI 和 CSI-2 协议以及 MIPI M-PHY 物理层和 UniPro 协议层的触发和解码。解码设置仅需数秒。结果显示为采用颜色编码的协议组件和/或显示在表格中以便分析。通过硬件加速触发,可以更快地查找错误。用户可以对协议细节和各种错误条件进行触发。

特性和优点

快速配置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

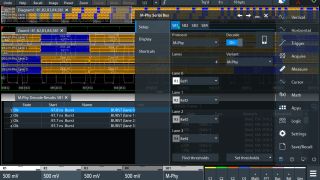

轻松配置 MIPI M-PHY 解码。

使用颜色编码的协议显示

协议以颜色编码的总线信号显示,或者在解码表中显示

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制和 ASCII 格式显示。使用 R&S SmartGrid 调整最佳布局。协议也可以显示在简明表格中。

打开灯箱

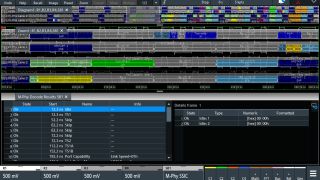

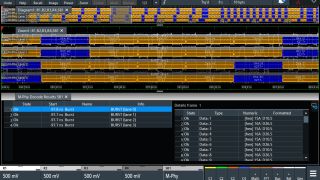

详细的 MIPI M-PHY SSIC 协议解码示例。

强大的触发功能

针对起始、结束、地址、数据和各种错误条件的强大触发功能


借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高波形捕获率,非常适合快速查找错误。示波器可以解码特定的协议触发结果。示波器可针对地址、数据和协议错误等特定协议内容进行基于硬件的触发。

打开灯箱

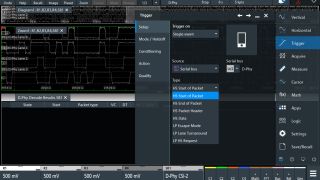

利用基于协议的触发功能来调试正确的协议部分:MIPI D-PHY 示例。

在采集记录中搜索和导航


强大的搜索和导航功能


全面的搜索功能让长信号序列的分析更加简单。用户可以根据信号故障和协议内容等各种标准搜索波形。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中查看单个事件,并轻松浏览不同事件。

打开灯箱

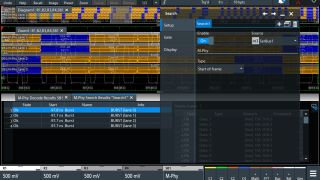

MIPI M-PHY 的搜索对话框。在捕获的波形中查找协议细节。

可用型号
