MIPI M-PHY 示波器软件

触发和解码

MIPI M-PHY 示波器软件
打开灯箱
MIPI M-PHY 示波器软件
打开灯箱
MIPI M-PHY oscilloscope software, Software MIPI M-PHY oscilloscope software, Screenshot

主要特点

  • 触发和解码使用 I 类(脉冲宽度调制,PWM)和 II 类(不归零,NRZ)编码的低速 (LS) 传输模式
  • 解码后的报文以颜色编码的蜂巢形式显示在波形图或解码表中
  • 对高速 (HS) 传输模式的解码和触发
  • 自动检测数据率
  • 所需解码层:边沿、比特位、符号、不同的 M-PHY 和 UniPro 协议层
  • 多域图标

示波器软件

R&S®RTO 示波器支持对 MIPI M-PHY 物理层和 UniPro 协议层的触发和解码。解码设置仅需数秒。用户能够以颜色编码的报文形式或者在解码表中查看结果,并作进一步分析。通过硬件加速触发,可以更快地查找错误。用户可以对 M-PHY 脉冲串、调整和 LCC、UniPro DL_PDU 帧、PACP 帧进行触发,也可以对上帧和 M-PHY/UniPro 错误进行触发。

特性和优点

快速总线设置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

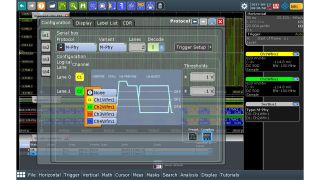

轻松快速地配置 MIPI M-PHY 解码

使用颜色编码的报文显示

报文以颜色编码的总线信号显示,或者在解码表中显示

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制或 ASCII 格式显示。用户始终可以通过灵活的屏幕设置获得理想的浏览效果。报文也可以显示在简明表格中。

打开灯箱

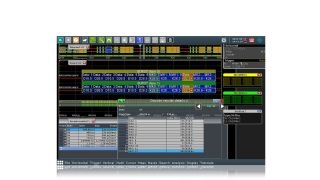

专注于调试正确的协议层,并查看波形和结果表格中的解码数据

强大的触发功能

针对 M-PHY 脉冲串、调整和 LCC、UniPro DL_PDU 帧、PACP 帧执行强大的触发功能,也可以对上帧和 M-PHY/UniPro 错误进行触发

借助特定于协议的触发,用户能够可靠地隔离协议事件和错误。罗德与施瓦茨示波器具有高捕获率,非常适合快速查找错误,以便针对特定于协议的触发结果进行解码。示波器可针对地址、数据和协议错误等特定协议内容进行基于硬件的触发。

打开灯箱

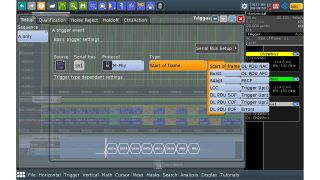

MIPI M-PHY 协议触发设置对话框

在采集记录中搜索和导航

强大的搜索和导航功能

全面的搜索功能让长信号序列的分析更加简单。用户可以根据不同的标准搜索波形,例如信号故障或协议内容。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中查看单个事件,并轻松浏览不同事件。

打开灯箱

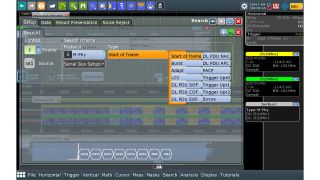

提供多种 MIPI M-PHY 协议类型可选,以便搜索长记录

可用型號

可用型號
型号
串行标准
解码表
触发
搜索
基本单元

R&S®RTP-K44

订单号码 1337.8756.02

串行标准
MIPI M-PHY/UniPro
解码表
触发
搜索
基本单元

R&S®RTO-K44

订单号码 1333.0267.02

串行标准
MIPI M-PHY/UniPro
解码表
触发
搜索
基本单元
