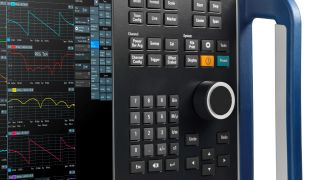

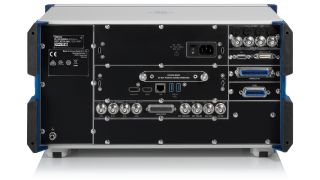

R&S®ZNB3000 矢量网络分析仪

快速获取结果

主要特点

频率范围为 9 kHz 至 26.5 GHz

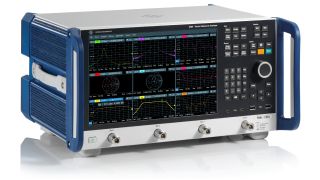

两个或四个端口
最高 150 dB 的宽动态范围
11.8 ms 超快扫描周期（1601 个扫描点，1 MHz 至 26.5 GHz）
高输出功率：11 dBm，26.5 GHz 时

获取报价配置你的产品

快速获取结果

超快测量周期带来优异的吞吐量

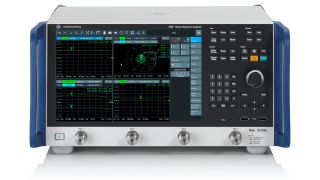

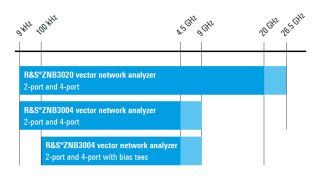

R&S®ZNB3000 矢量网络分析仪的频率范围为 9 kHz 至 4.5 GHz、9 GHz、20 GHz 和 26.5 GHz，是通信和航空航天应用的理想选择。在射频器件的批量生产环境和上升时间短的应用中，R&S®ZNB3000 能够大放异彩，提供最佳结果。R&S®ZNB3000 采用灵活的升级理念，能够快速向上扩展，满足不同的要求。R&S®ZNB3000 测量速度快、稳定性高、射频性能出色、扩展功能多，能够很好地完成任务。

快速链接

可用的型号
可用选项
显示所有下载

特性和优点

测量速度超快

超快测量周期带来优异的吞吐量

基于 DDS 的快速合成器、优于同类产品的动态范围、有效的后端数据处理，共同实现优异的测量吞吐量。R&S®ZNB3020 可以在 1 MHz 至 26.5 GHz 的范围内进行频率扫描，使用 500 kHz 中频带宽并启用全双端口误差校正时，扫描 1601 个点的总测量时间仅为 21.2 ms。对于要求每秒测试成本低、吞吐量高的批量生产应用，该分析仪是理想之选。

动态范围优于同类产品

适合滤波器表征

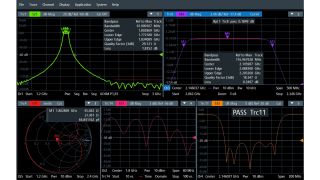

滤波器测试的测量速度取决于合成器稳定时间、所需的动态范围和相应的中频带宽。R&S®ZNB3020 提供创新的扩展动态范围模式，中频带宽更高，迹线噪声幅度值与传统 VNA 相当，从而提高了测量吞吐量。

快速扩大生产规模

灵活的频率升级选件

附加频率范围加上轻松升级频率的设计理念，保证快速扩大生产规模，保护您的长期投资。无论测试要求、裸芯片层、封装或连接如何，R&S®ZNB3000 都是全世界射频器件制造商的优选仪器。

出众的射频性能

为应对严峻挑战而设计

R&S®ZNB3000 在设计时充分考虑了各种严峻的测试挑战，专门开发用于批量生产应用。它很好地平衡了速度、稳定性和性能。R&S®ZNB3000 提供高输出功率（26.5 GHz 时达到 +11 dBm）、创新的扩展动态范围模式、超低迹线噪声（典型值为 0.0008 dB RMS）和快速扫描时间，非常适合高吞吐量、高产量和高精度应用。

多端口测量

最多可测量 48 个端口

现代通信设备中使用的器件支持越来越多的频段和附加功能。模块中的射频端口数量也随之增加。R&S®ZNB3000 和各种开关矩阵组成综合全面的解决方案，支持最多 48 个端口的复杂模块测量。罗德与施瓦茨矩阵支持完整交叉开关测量，能够测定多端口被测设备的所有 S 参数。

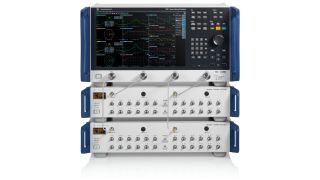

**R&S®ZNB3020 和带 48 个端口的 R&S®ZN-Z86 开关矩阵**

SCPI 记录器

加快测试自动化

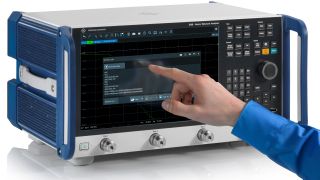

R&S®ZNB3000 简化了编程工作。集成的 SCPI 记录器可以记录每次的按键操作，并创建逐步命令列表，即使是最复杂的测量设置也同样如此。记录的 SCPI 脚本可以直接复制到用户代码中，或以 C、Python 和 MATLAB 格式导出。

多功能选件

快速准确地表征有源和无源射频器件

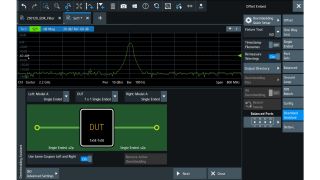

R&S®ZNB3000 非常适合测试无源、有源和变频器件。有多种硬件和软件选件可用于这些测量任务。硬件选件包括两个独立的内部发生器、宽功率扫描范围和双端口或四端口配置的扩展动态范围。软件选件包括压缩点与频率的关系测量、噪声系数测量、互调失真测量和直观的测量配置。分析仪还提供包含眼图的时域测量选件和变频测量。完整的嵌入/去嵌选件列表让矢量网络分析仪的功能更加完善。

一流的温度和长期稳定性

R&S®ZNB3000 测试装置和接收机具备出色的温度和长期稳定性。仪器的幅度和相位漂移非常低，典型值分别为低于 0.01 dB/°C 和 0.15°/°C。R&S®ZNB3000 经过校准后可在数天内执行准确测量，无需重新进行校准。

可用型号

可用选项

Applications of the R&S®ZNB3000

The R&S®ZNB3000 is engineered to meet the diverse needs of RF and microwave testing with exceptional speed, accuracy and adaptability. With its high throughput rate, it is especially suitable for high-volume production and short ramp-up time environments.

It has applications in:

Filter and passive component testing

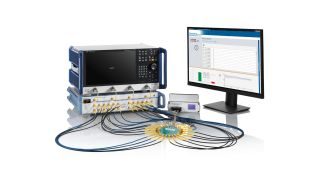

Front-end module and active component testing
RF component production

Related videos

R&S®ZNB3000 family introduction

R&S®ZNB3000 feature presentation – maximized throughput

R&S®ZNB3000 feature presentation - maximized throughout

R&S®ZNB3000 calibration demonstration

R&S®ZNB3000 GUI demonstration
