R&S®IQW 宽带 I/Q 数据记录器

在实验室创造真实的射频场景

R&S®IQW 宽带 I/Q 数据记录器
打开灯箱
R&S®IQW 宽带 I/Q 数据记录器
打开灯箱
R&S®IQW 宽带 I/Q 数据记录器
打开灯箱
R&S®IQW 宽带 I/Q 数据记录器
打开灯箱
R&S®IQW 宽带 I/Q 数据记录器
打开灯箱

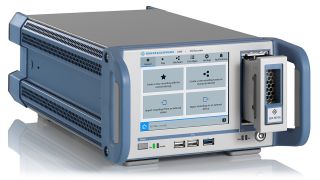

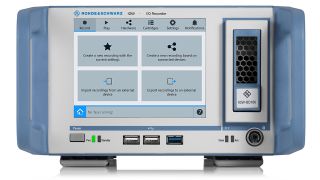

R&S®IQW 宽带 I/Q 数据记录器,前视图 R&S®IQW 宽带 I/Q 数据记录器,前视图 R&S®IQW 宽带 I/Q 数据记录器,侧视图 R&S®IQW 宽带 I/Q 数据记录器,后视图 R&S®IQW 宽带 I/Q 数据记录器,主视图

主要特点

  • 部分导出记录的 I/Q 数据
  • 连续回放记录的 I/Q 数据
  • 结合 R&S®VSE 矢量信号分析软件进行后处理

简介

R&S®IQW 宽带 I/Q 数据记录器是一款多功能仪器,可以快速、可靠地实时记录、存储并回放宽带 I/Q 数据流。与现场测试相比,记录实时射频场景可以帮助用户在实验室以较低成本在真实条件下重复执行测试

特性和优点

高端宽带记录器

高精度数据采集

全新 R&S®IQW 具备一流性能,并且操作简单。它具备高分辨率,可在真实条件下执行测试。

  • 记录和回放带宽高达 1000 MHz
  • 无采样损失

优质存储

15 TB 固态硬盘内存包

R&S®IQW-BD115 选件可提供服务器级 15 TB 固态硬盘内存包。此内存包支持高达 1000 MHz 的记录和回放流程。使用 1000 MHz 最大带宽时,R&S®IQW 记录时间可达 65 分钟左右。所选带宽越低,最长记录时间越长。另提供 3.2 TB 和 6.4 TB 固态硬盘内存包。

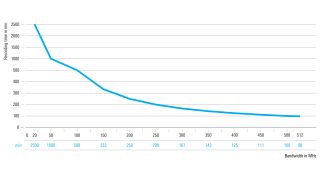

记录时间随数据率变化
打开灯箱

记录时间随数据率变化

连接设备

系统创造不同

R&S®IQW 是一款多功能 I/Q 宽带记录器,可以和多种罗德与施瓦茨仪器搭配使用。R&S®FSW 信号与频谱分析仪和 R&S®SMW200A 信号发生器支持高端应用。此宽带记录器还支持与 R&S®SMBV100B 和 R&S®SGT100A 结合使用。

  • 高速数字 I/Q 接口
  • USB 3.0,USB 2.0
  • LAN 接口
  • GPS 天线端口
  • BNC 端口

打开灯箱

易于使用的图形用户界面

记录和回放向导确保操作简单快捷

R&S®IQW 具备创新的图形用户界面,确保轻松进行记录和回放。R&S®IQW 采用经过优化的清晰图形用户界面,结构清楚地显示设备属性和功能。向导从用户角度出发,指导用户逐步完成记录和回放流程。因此,用户可以快速、简单、直观地操作设备。

打开灯箱

可用型号

可用型号
型号
描述

R&S®IQW100

订单号码 1525.7551.02

描述
最高 100 MHz 和 200 MHz 带宽

R&S®IQW

订单号码 1525.7551.05

描述
最高 512 MHz 带宽

R&S®IQW1000

订单号码 1525.7551.10

描述
最高 1000 MHz 带宽
规格
I/Q 数据传输
射频带宽 结合 R&S®FSW 和/或 R&S®SMW200A 1000 MHz
I/Q 字号 每个 I/Q 样点 I/Q 数据:12 或 16 位,具体视带宽而定
采样率 R&S®IQW 1200 Msample/s(过采样因子 1.25/Hz),复杂数据
高速数字 I/Q 接口 全双工,QSFP+,40 Gbit/s
连接仪器 用于记录的 I/Q 数据源 R&S®FSW、R&S®FSWT
用于回放的 I/Q 数据接收器 R&S®SMW200A、R&S®SMM100A、R&S®SMBV100B、R&S®SGT100A
通用数据
显示屏 带触摸屏 5.7" TFT 彩色显示屏,640 像素 × 480 像素,LED 背光
USB 接口 4 × USB 2.0,3 × USB 3.0
LAN 接口 远程控制 10/100/1000 Mbit/s 以太网
电源 交流电源 100 V 至 240 V 交流电源 (±10%),≤ 150 VA,50 Hz 至 60 Hz/400 Hz (±5%),1.5 A 至 3.6 A
整体尺寸 宽 × 高 × 深 249 mm × 150 mm × 451 mm
(9.80 in × 5.90 in × 17.76 in)
适用于 19" 机架安装 ½ 19",3 HU
重量 6.3 kg (25.4 lb)
环境条件 操作温度范围 0°C 至 +40°C
存储温度范围 –20°C 至 +70°C

可用选项

内存包
产品
描述
R&S®IQW-BC103

订单号码 1525.8293.03

描述

3.2 TB 固态硬盘内存包,适用于 200 MHz 最大射频带宽

R&S®IQW-BD106

订单号码 1525.8293.06

描述

6.4 TB 固态硬盘内存包,适用于 1000 MHz 最大射频带宽

R&S®IQW-BD115

订单号码 1525.8293.15

描述

15 TB 固态硬盘内存包,适用于 1000 MHz 最大射频带宽

附件
产品
描述
R&S®DIGIQ-HS

订单号码 3641.2948.03

描述

适用于高速数字 I/Q 接口的电缆,3 m

R&S®SMU-Z6

订单号码 1415.0201.02

描述

适用于标准 I/Q 接口的电缆,2 m

R&S®IQW-Z19

订单号码 1525.7574.02

描述

R&S®IQW 19" 机架适配器

选件
产品
描述
R&S®IQW-B40G

订单号码 1525.8264.02

描述

接口板,提供 2 x 10 Gbit/s 和 40 Gbit/s 接口

R&S®IQW-K110

订单号码 1525.8370.02

描述

I/Q 数据导入和导出

R&S®IQW-K112

订单号码 1525.8393.02

描述

记录 GPS 坐标

R&S®IQW-K200

订单号码 1525.8429.02

描述

将 R&S®IQW100 带宽最高可扩展至 200 MHz
