R&S®DST200 射频诊断暗箱

准确的辐射型无线设备测试

R&S®DST200 射频诊断暗箱
打开灯箱
R&S®DST200 射频诊断暗箱,前视图

主要特点

  • 高效的电波射频暗箱,屏蔽效能超过 110 dB
  • 400 MHz 至 18 GHz 的宽频率范围
  • 适用于 OTA 测量的自动 3D 定位器
  • 紧凑尺寸,适用于任何实验室环境
  • 独特设计确保长期维持一流的屏蔽效能

体型小巧的 OTA 测量装置

R&S®DST200 射频诊断暗箱非常适合开发过程中的射频分析。它支持广泛的无线设备辐射测试应用,并且可安装在每个研发实验室的工作台上,在产品设计和优化阶段随时可用。R&S®DST200 有效帮助在最终型式批准阶段实现较高的一次通过率,节省了时间和成本。
R&S®DST200 为研发、质量保证、生产和服务阶段所需的辐射测试提供支持。

特性和优点

产品开发周期更短

产品开发周期更短,确保更快上市

设计多标准智能手机等尖端无线设备时,需要进行大量的测试和验证。在开发过程中,需要在特殊的测试环境中使用专用工具执行辐射测试。为了尽量减少总拥有成本,测试工具和环境应支持在不同场所灵活部署。

测试工具适用于从研发到型式批准的各个阶段
打开灯箱

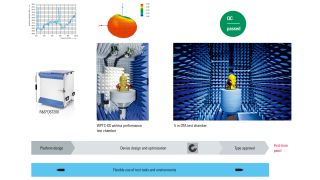

测试工具适用于从研发到型式批准的各个阶段

高测量精度和可重复性

R&S®DST200 紧凑型射频屏蔽电波暗箱集成宽带交叉极化
或圆极化测试天线,适用频率范围介于 400 MHz 至 18 GHz。
优化锥形射频吸波材料的设计和布局,由此在被测设备测试位置实现自由空间条件。这可以尽量减少被测设备的寄生负载,并降低暗箱框架中导电部件引起的天线失谐程度。

R&S®DST-B150 手动 3D 定位器
打开灯箱

R&S®DST-B150 手动 3D 定位器

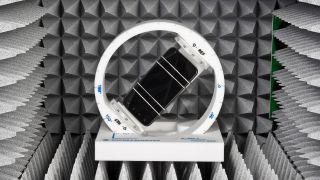

R&S®DST-B150 手动 3D 定位器采用射频透明材料 (Rohacell) 设计而成

宽带测试与通信天线

R&S®DST200 的所有测试天线均为单一模块,用户可以打开 R&S®DST200 顶盖轻松更换天线。
R&S®DST-B270 和 R&S®DST-B270 通信天线可以水平或垂直安装。这可以消除 3D 方向图中的空值影响,并提供稳定的通信链路。

R&S®DST-B215 交叉极化 Vivaldi 天线
打开灯箱

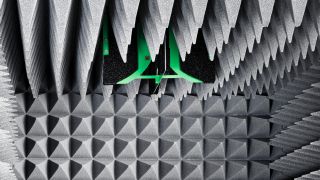

R&S®DST-B215 交叉极化 Vivaldi 天线

适用于 OTA 测量的自动 3D 定位器

可选的 R&S®DST-B160 3D 定位器针对总辐射功率 (TRP) 和总全向灵敏度 (TIS) 提供自动化 OTA 测量功能。被测设备安装在定位器中心的可拆卸支架上,并通过两个伺服电动机
围绕方位角和仰角轴独立旋转。光学传感器确保一流的定位精度。
支撑结构由相对介电常数非常低的材料制成,以尽可能减少被测设备静区中的场扰动。

R&S®DST-B160 自动 3D 定位器
打开灯箱

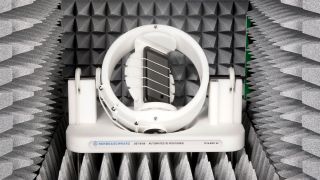

R&S®DST-B160 自动 3D 定位器

可单独校准

单独校准 R&S®DST200 射频诊断暗箱

用于路径损耗校准的可选参考天线确保在现场执行准确测量。提供两种不同的
双锥形宽带天线。R&S®TS-RANT3 的频率范围介于 400 MHz 至 3 GHz,涵盖蜂窝和 WLAN 低频段。R&S®TS-RANT18 的频率范围介于 3 GHz 至 18 GHz,确保在高频范围内进行准确校准。

适用于校准的 R&S®DST-B120 定位器套件
打开灯箱

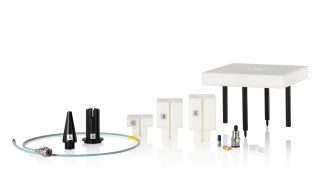

适用于校准的 R&S®DST-B120 定位器套件

自动测量

使用即用型测试模板进行自动化测量

R&S®AMS32 OTA 性能测量软件功能全面,可与 R&S®DST200 射频诊断暗箱相结合以支持多种测试应用:
- 空口 (OTA) 性能验证(TRP、TIS)
- 共存测试以验证无线设备同时激活多个无线电服务时的接收机性能
(例如 LTE 和 Bluetooth®)
轻松配置
蜂窝频段和功率电平等测试参数。

天线方向图示例
打开灯箱

天线方向图示例

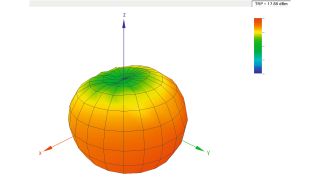

显示 LTE 频段 13 (782 MHz) 中总辐射功率的天线方向图示例

可用选项

馈通装置面板
产品
描述
R&S®DST-B101

订单号码 1514.7778.02

描述

适用于 R&S®DST200 的滤波器面板,9 针 D-Sub,光纤


R&S®DST-B102

订单号码 1514.7784.02

描述

适用于 R&S®DST200 的接口面板,2 × N 型,2 × 射频电缆

R&S®DST-B103

订单号码 1514.7790.02

描述

适用于 R&S®DST200 的滤波器面板,USB 2.0

R&S®DST-B104

订单号码 1516.8407.02

描述

适用于 R&S®DST200 的滤波器面板,100 V 至 240 V,交流电

测试和通信天线
产品
描述
R&S®DST-B215

订单号码 1527.3576.02

描述

适用于 R&S®DST200 的交叉极化 Vivaldi 测试天线

必选 R&S®DST-B215、R&S®DST-B220 或 R&S®DST-B231(工厂安装)。

R&S®DST-B220

订单号码 1518.4509.02

描述

适用于 R&S®DST200 的圆极化测试天线

必选 R&S®DST-B215、R&S®DST-B220 或 R&S®DST-B231(工厂安装)。

R&S®DST-B231

订单号码 1518.5328.02

描述

适用于 R&S®DST200 的测试天线套件

必选 R&S®DST-B215、R&S®DST-B220 或 R&S®DST-B231(工厂安装)。

R&S®DST-B270

订单号码 1518.4515.02

描述

适用于 R&S®DST200 的线性极化通信天线

R&S®DST-B272

订单号码 1518.4609.02

描述

线极化通信天线,2 件,功分器

定位器
产品
描述
R&S®DST-B120

订单号码 1516.8659.02

描述

校准天线定位器

R&S®DST-B130

订单号码 1515.1467.02

描述

适用于 R&S®DST200 的被测设备升高台

R&S®DST-B150

订单号码 1515.1480.02

描述

适用于 R&S®DST200 的手动 3D 定位器

R&S®DST-B160

订单号码 1516.8007.02

描述

适用于 R&S®DST200 的自动 3D 定位器

R&S®DST-B165

订单号码 1519.3506.02

描述

适用于 R&S®DST200 的大型自动 3D 定位器

R&S®DST-U165

订单号码 1519.3935.02

描述

适用于 R&S®DST-B160 的升级套件

一般分析
产品
描述
R&S®AMS32-DST

订单号码 1518.5270.02

描述

适用于 R&S®DST200 的 OTA 基础测量软件包

根据应用需求选择选件。请联系当地的罗德与施瓦茨专家。

R&S®AMS32-PK20

订单号码 1518.5286.02

描述

R&S®AMS32-PK25

订单号码 1518.5286.25

描述

通用附件
产品
描述
R&S®DST-Z5

订单号码 1518.9530.02

描述

适用于 R&S®DST200 的船运集装箱

R&S®DST-Z18

订单号码 1515.1473.02

描述

射频电缆,18 GHz,1.5 m,2 个 N 型连接器,高屏蔽有效性

R&S®DST-Z160

订单号码 1518.5205.02

描述

适用于 R&S®DST-B160 的被测设备支架

R&S®DST-Z165

订单号码 1519.3941.02

描述

适用于 R&S®DST-B165 的被测设备支架

R&S®TS-RANT3

订单号码 1516.4224.02

描述

线极化校准天线,400 MHz 至 3 GHz

R&S®TS-RANT3C

订单号码 1516.4224.05

描述

适用于 R&S®TS-RANT3C 的天线校准数据:增益、天线系数、电压驻波比

R&S®TS-RANT18

订单号码 1516.4218.02

描述

线极化校准天线,3 GHz 至 18 GHz

R&S®TS-RANT18C

订单号码 1516.4218.05

描述

适用于 R&S®TS-RANT18C 的天线校准数据:增益、天线系数、电压驻波比
