R&S®CMQ500 屏蔽柜

R&S®CMQ500 屏蔽柜
R&S®CMQ500 屏蔽柜
R&S®CMQ500 屏蔽柜
R&S®CMQ500 屏蔽柜

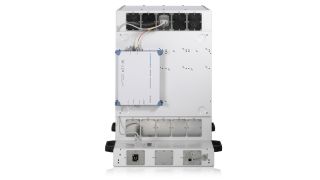

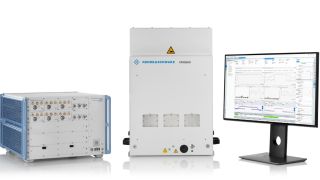

R&S®CMQ500 屏蔽柜,前视图 R&S®CMQ500 屏蔽柜,前视图 R&S®CMQ500 屏蔽柜,后视图 R&S®CMQ500 屏蔽柜,应用图像


  • 可用于 5G FR1 和 FR2 信令测试
  • 经过优化的 OTA 测试系统,可与 R&S®CMX500 和远程无线电头端 (RRH) 一起用于研发环境
  • 一流的 OTA 系统准确度和可重复性
  • 体积减小:可安装在 19" 机架中

R&S®CMQ500 屏蔽柜

R&S®CMQ500 是一款紧凑型全集成式解决方案,涵盖各种应用中的大部分 5G 设备。抽屉式概念可在制造应用中实现全自动化操作。坚固的机械设计,确保在研发环境中进行可靠测量。灵活的柜式设计涵盖智能设备、客户终端设备、射频集成电路和原型等多种应用。R&S®CMQ500 准备就绪,可用于 0.7 GHz 至 77 GHz 频率范围内的 5G 和其他技术。



R&S®CMQ 可轻松扩展,以满足不同的被测设备尺寸和要求。R&S®CMQ500 屏蔽柜小巧紧凑并采用小型天线,可以轻松测试相对大型的被测设备。




R&S®CMQ 性能出色、体积小巧并采用面向未来的设计概念,是用于 5G 回归测试的终极解决方案。屏蔽柜准备就绪,可用于 5G 和其他技术:频率范围为 0.7 GHz 至 77 GHz。

通用全面的配置概念 I



通用全面的配置概念 II


R&S®CMQ500 屏蔽柜支持多种不同的电缆选件。用户可以选择使用电缆引线以尽量缩短电缆长度,并优化链路预算。
