R&S®ATS1000 天线测试系统

以小巧体积进行毫米波天线和设备表征

R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱
R&S®ATS1000 天线测试系统
打开灯箱

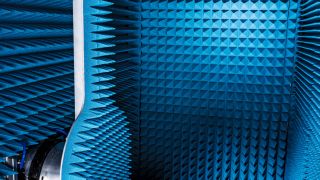

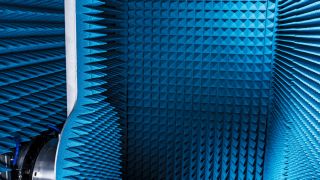

R&S®ATS1000 天线测试系统,前视图 R&S®ATS1000 天线测试系统,侧视图 R&S®ATS1000 天线测试系统,后视图 R&S®ATS1000 天线测试系统,前视图 R&S®ATS1000 天线测试系统,应用图像 R&S®ATS1000 天线测试系统,应用图像 R&S®ATS1000 天线测试系统,应用图像 R&S®ATS1000 天线测试系统,应用图像 R&S®ATS1000 天线测试系统,应用图像 R&S®ATS1000 天线测试系统,前视图 R&S®ATS1000 天线测试系统,应用图像

主要特点

  • 暗箱和探头天线的频率范围:18 GHz 至 87 GHz
  • 提供 5 cm 静区的直接远场系统
  • 专为精良的紧凑性和移动性而设计
  • 极其快速且准确的三维天线特征校准
  • 屏蔽效能超过 50 dB,频率范围高达 87 GHz

R&S®ATS1000 天线测试系统适用于毫米波天线测试

在从研发到生产的整个流程中执行设备表征

天线测试系统可测量有源和无源设备,并且支持极端温度测试。5G 涉及到使用高频毫米波频段实现出类拔萃的数据传输、速度和可靠性。缺少传统的外部射频连接器,导致 5G 天线表征极具挑战性。5G 天线、芯片组和用户设备制造商以及无线市场运营商需要借助切实可行的解决方案以用于研究、诊断、调试和型式批准工作。

特性和优点

极其快速且准确的 3D 天线表征

高精度定位器确保测量极快且准确

定位器保证高精确度的方位角和仰角移动,并提供令人满意度的可重复性和角分辨率,由此保证 3D 天线测量的高准确度。
不同的被测设备支架和夹具便于测量不同尺寸和重量的设备。
为了确保结果精确,需要保证准确的被测设备定位和射频校准。暗箱内部集成十字激光器,保障准确地对准被测设备。

定位器配备激光器校直系统
打开灯箱

定位器配备激光器校直系统

锥形切割定位器保障高准确度的移动操作,并提供令人满意的可重复性和角分辨率

专为精良的紧凑性和移动性而设计

约 1.3 m2 的紧凑设计,适合任何实验室环境

开发人员不再需要使用大型固定式天线暗箱来测试和优化产品。这有助于避免测量遇到瓶颈。移动屏蔽暗箱配备滚轮,方便不同部门使用。
R&S®ATS1000 可在 18 GHz 至 87 GHz 的宽频率范围内提供高性能屏蔽环境。
这种紧凑型暗箱可提供显著优势,测量准确性可与体型是其三倍的大型天线暗箱相媲美。查看每个 Cookie 的有效时间。

体型紧凑,功能多样
打开灯箱

体型紧凑,功能多样

R&S®ATS1000 采用紧凑设计并配备滚轮,因此具备出色的移动性

小型设备提供远场测量

紧凑型装置支持在 0.5 m 距离内进行远场测量

5G 设备的天线表征可在远场条件下在大小约为 5 cm 的静区中执行。如果需要使用白盒方法,体型小巧的 R&S®ATS1000 可快速提供准确结果

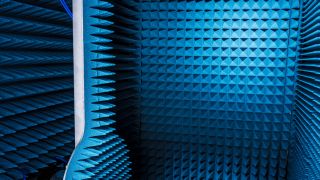

3D 设备表征
打开灯箱

3D 设备表征

测量 5G NR 收发信机模块的 3D 方向图或天线增益

近远场变换

根据近场测量计算远场参数

当被测设备超过远场条件中的最大尺寸要求时,需要进行近远场变换以确定远场数据。
结合 R&S®AMS32 软件和 R&S®ZNA 等矢量网络分析仪时,R&S®ATS1000 中的定位器能够在近场执行 3D 测量以快速进行近远场变换。

双极化测量探头 R&S®TC-TA85CP
打开灯箱

双极化测量探头 R&S®TC-TA85CP

双极化测量探头可提供近远场变换所需的两个正交极化数据

在极端温度条件下进行测量

在宽温度范围内执行 3D 设备和天线表征

由于设备发热会影响射频组件和天线的辐射方向图,因此被测设备的热效应诊断成为 5G 应用的一项要求。R&S®ATS1000 热解决方案将射频 OTA 暗箱和气候室集于一体,工程师不必分别执行测试。R&S®ATS-TEMP 选件是一种紧凑型解决方案,可在 –20°C 至 +85°C 温度范围内对设备进行射频测量。

安装 R&S®ATS-TEMP 选件的 R&S®ATS1000
打开灯箱

安装 R&S®ATS-TEMP 选件的 R&S®ATS1000

R&S®ATS-TEMP 采用射频透明材料,可在极端温度条件下提供理想的设备表征环境

可用选项

通用
产品
描述
R&S®ATS-TEMP

订单号码 1533.8147.02

描述

气候选件 ATS1000

用于扩展温度条件测试的散热解决方案

通用
产品
描述
R&S®AMS32

订单号码 1508.6650.02

描述

OTA 测量软件

基本许可

R&S®AMS32-K48

订单号码 1508.6680.48

描述

定位器连续模式触发的矢量网络分析仪测量

3D 方向图的后处理和生成

R&S®AMS32-K49

订单号码 1508.6680.49

描述

扩展结果可视化

用于远场天线测量

R&S®AMS32-K50

订单号码 1508.6680.50

描述

近远场变换

基于 FIAFTA 算法

R&S®AMS32-K53

订单号码 1508.6680.53

描述

近远场变换

基于球面波展开算法

通用
产品
描述
R&S®TC-SGH26

订单号码 1530.8630.02

描述

标准增益喇叭校准天线

18 GHz 至 26.5 GHz

R&S®TC-SGH40

订单号码 1530.8617.02

描述

标准增益喇叭校准天线

26.5 GHz 至 40 GHz

R&S®TC-SGH60

订单号码 1530.8623.02

描述

标准增益喇叭校准天线

40 GHz 至 60 GHz
