R&S®ATS800B CATR 台式天线测试系统

R&S®ATS800B CATR 台式天线测试系统
打开灯箱
R&S®ATS800B CATR 台式天线测试系统
打开灯箱
R&S®ATS800B CATR 台式天线测试系统
打开灯箱

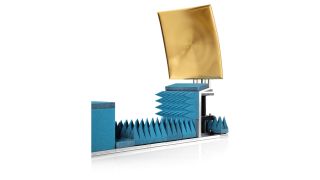

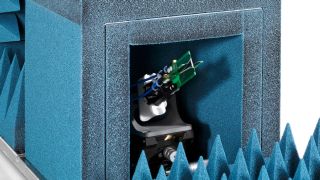

R&S®ATS800B CATR 台式天线测试系统,应用图像 R&S®ATS800B CATR 台式天线测试系统,侧视图 R&S®ATS800B CATR 台式天线测试系统,侧视图

主要特点

  • 极其紧凑的远场空口 (OTA) 测试系统,基于紧缩场天线测试 (CATR) 技术
  • 体积仅为 0.8 m2,提供超大静区
  • 先进的反射器,确保出色的静区精度
  • 独特的台式 CATR 系统,支持 50 GHz 以上的宽频率范围
  • 间接远场方法(经 3GPP 批准用于 5G OTA 测试)

CATR 台式天线测试系统

1. 紧凑的远场空口 (OTA) 测试系统
    2. 基于紧缩场天线测试 (CATR) 技术
    3. 支持在任何规模的实验室进行远场空口射频测量
    4. 降低成本,确保按期发布产品,加快产品上市

特性和优点

紧凑

紧凑的台式远场天线测试系统

R&S®ATS800B 是一款紧凑的 CATR 台式远场天线测试系统。

打开灯箱

大静区

卓越的反射面表面精度

R&S®ATS800B 的反射器表面精度极高,可确保一流的静区精度。

打开灯箱

宽频率范围

CATR 系统支持 50 GHz 以上的宽频率范围

R&S®ATS800B 支持 50 GHz 以上的宽频率范围,覆盖整个 FR2 频段。

打开灯箱

快速获取结果

轻松快速地获取测量结果

结合 R&S®ATS800B 和罗德与施瓦茨测试系统的一站式解决方案,能够轻松快速地在实验室完成测量任务,并优化多种功能,以便测定 5G 设备在毫米波范围内的天线性能和特性。

降低成本

确保按期发布客户产品

R&S®ATS800B 能够在开发的早期阶段优化射频模块的整体性能。这有助于避免在后期阶段对大量原型进行成本高昂又耗时的修改工作。在开发期间进行空口射频测试有助于降低成本,确保按期发布产品,加快产品上市。
