R&S®AD033V3 全向特高频天线

225 MHz 至 450 MHz

R&S®AD033V3 全向特高频天线
R&S®AD033V3 全向特高频天线

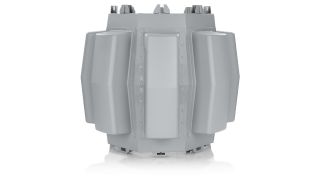

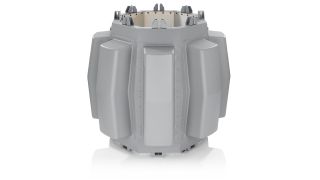

R&S®AD033V3 天线,前视图 R&S®AD033V3 全向特高频天线,高前视图


  • 一流的全向性
  • 高输入功率,可同时使用多个无线电线路
  • 天线采用可堆叠设计
  • 减少雷达散射截面积
  • 直流接地以防雷击


R&S®AD033V3 全向特高频天线系统适用于海军应用,频率范围介于 225 MHz 至 450 MHz。天线可用作发射和/或接收天线。偶极子围绕中心支撑结构呈圆形排列并合并到一个输出端,实现一流的全向特性。天线可同时用于多个独立发射机。




R&S®AD033V3 的八个垂直极化偶极子在反射器前面呈圆形排列。各偶极子合并到一个输出端,实现一流的全向性。整个天线围绕中心天线杆进行部署,可实现不间断的全向通信。



R&S®AD033V3 全向特高频天线旨在提供高输入功率,支持将多个独立发射机同时连接到单个天线。与每个天线仅用于一个无线电线路的传统设计相比,这可以节省空间,并有助于避免常见的天线间干扰问题。



R&S®AD033V3 设计用作适用于天线杆的环绕式天线。天线具备一流的全向特性。由于接收路径和发射路径有时会分开,因此还需要使用附加天线。AD033V3 可堆叠,能够轻松安装附加天线。



R&S®AD033V3 的形状在设计阶段进行了优化,这对于天线的电气特性(例如辐射方向图)非常重要。天线形状还决定雷达散射截面积 (RCS)。在海军舰艇中部署天线时,必须尽量减少 RCS。



R&S®AD033V3 的所有金属部件均采用直流接地,以将雷击等可能的过压浪涌导向地面,从而保护人员和连接的设备。
