R&S®GW5450 VCS 网关

R&S®GW5450 VCS 网关
打开灯箱
R&S®GW5450 VCS 网关
打开灯箱
R&S®GW5450 VCS 网关
打开灯箱

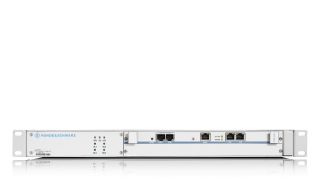

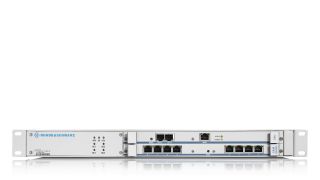

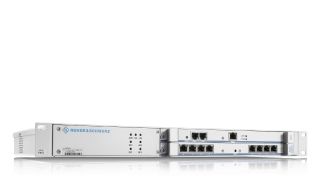

R&S®GW5450 VCS 网关,前视图 R&S®GW5450 VCS 网关,主视图 R&S®GW5450 VCS 网关,前视图

主要特点

  • 使用扩展卡进行模块化定制
  • 支持 E&M 和 E1 传统接口
  • SIP、R2S 和 RTP 协议 VoIP 转换
  • 与 R&S®GW5410 无线电网关互为补充
  • 以太网和 RS-232 连接

将传统的 TDM 和模拟 VCS 集成到 IP 环境

R&S®GW5450 VCS 网关将传统的时分复用 (TDM) 或模拟语音通信系统 (VCS) 接口与基于 IP 的先进无线电接口相匹配,弥合了 VCS 领域 E&M 和 E1 协议与无线电领域 SIP、R2S 和 RTP 协议之间的差距。这种模块化 VCS 网关可在两者之间有效转换,为网络装置提供全新的灵活性。可靠的网络链路,质量值得信赖。

特性和优点

协议转换

使传统的 VCS 装置适用于现代 IP 网络架构

应用可能需要利用现有的基础设施。仪器可能需要保留向后兼容性。操作中可能出现特定的应用原因。无论情况如何,R&S®GW5450 VCS 网关都是值得信赖的强大工具。R&S®GW5450 VCS 网关将 VCS 中的 E1 和 E&M 协议转换为 SIP、R2S 和 RTP 协议,以根据 ED137B/C 标准进行 VoIP 通信,进而提供多功能网络接口工具包。

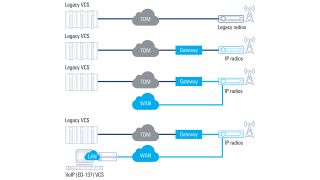

顺利过渡
打开灯箱

顺利过渡

从传统的 TDM 架构过渡到先进的 IP 基础设施时,R&S®GW5450 VCS 网关必不可少。

模块化设计

通过可配置性实现多功能性

模块化设计支持根据客户需求定制特定解决方案,一直深受罗德与施瓦茨推崇。通过这种设计,选件可进行未来升级,并且发生故障时仅需更换故障模块,有助于提高系统可用性。R&S®GW5450 VCS 网关可以针对传统或 IP 协议配置各种扩展卡。

强大的连接关系

罗德与施瓦茨提供一系列互补网关

R&S®GW5410 无线电网关转换基于 IP 的 VCS 协议以用于传统无线电系统,R&S®GW5450 VCS 网关则与此相反,将传统 VCS 的模拟协议转换到 IP 无线电环境。R&S®GW5420 电话网关还可以集成传统或外部电话网络。借助这三种网关,用户可以将任何设备集成到任何通信标准,以实现出色的可定制性和兼容性。

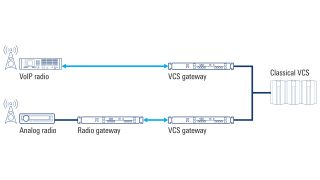

实现多功能性
打开灯箱

实现多功能性

各种 ATC 网关相结合,可灵活用于广泛的应用场景。

支持集中管理

高效统一的网络管理

IP 技术具有诸多优点。远程操作支持网络拓扑中的集中管理,因此可能最为重要。除了提供整体系统的全局概览,VCMS 还能实现远程电台站点的无人化操作。这样,单个控制站即可有效管控多个无人值守的远距离电台站点。

VCMS 平台
打开灯箱

VCMS 平台

根据整个 ATC 通信系统的全局统一概览,集中远程控制远距离电台站点。

可用型號

可用型號
型号
描述

R&S®GW5450

描述
R&S®GW5450 VCS 网关
4 个 E&M 无线电接口

R&S®GW5450

描述
R&S®GW5450 VCS 网关
2 个 E1 无线电接口

R&S®GW5450

描述
R&S®GW5450 VCS 网关
2 个 E&M 和 RS232 接口

R&S®GW5450

描述
R&S®GW5450 VCS 网关
4 个 E&M 和 RS232 接口

可用选项

通用
产品
描述
R&S®GW5400-AC
描述

适用于 GW 的可选二次嵌入交流电源
