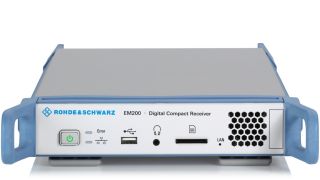

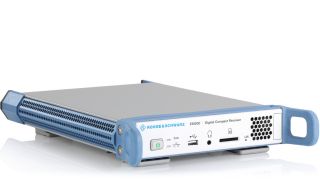

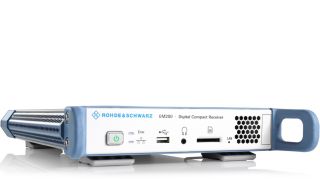

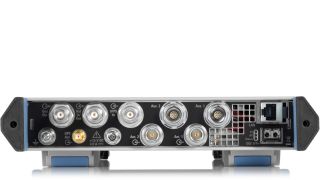

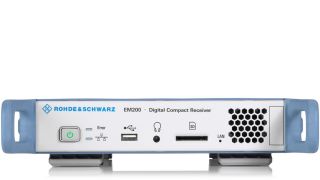

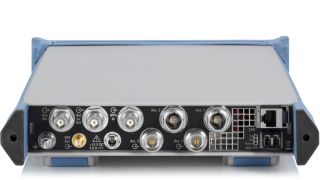

R&S®EM200 紧凑型数字接收机

R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息
R&S®EM200 紧凑型数字接收机
显示更多详细信息

主要特点

  • 频率范围为 8 kHz 至 8 GHz(配备 R&S®CS-MC20 和 R&S®CS-MC53 时最高达 53 GHz)
  • 在整个频率范围内以 64 GHz/s 的速度快速扫描
  • 40 MHz 实时带宽
  • 基于到达角的测向升级
  • 最高 40 MHz 宽带 I/Q 流,提供 10 Gbit 接口选件

体积小巧,适用于频谱监测和测向

R&S®EM200 接收机和测向机经济快速、高质量且结构紧凑。它能够检测、分析和解调 8 kHz 至 8 GHz 范围内的射频信号,配备 R&S®CS-MC20 微波变频器时适用范围可扩展至 20 GHz,配备 R&S®CS-MC53 微波变频器时可进一步扩展至 53 GHz。配备罗德与施瓦茨紧凑型测向天线时,接收机还支持在 9 MHz 至 8 GHz 范围内进行测向。接收机体积小巧,只需几步即可轻松集成和使用。它还配备易于使用、即时可用的图形用户界面。

特性和优点

体积小巧,性能出色

恰当平衡设计和射频性能

  • 丰富的预选器,包括跟踪、带通、高通和低通滤波器组合
  • 多种扫描模式(内存扫描和频率扫描),扫描速度快
  • 两个独立数字路径,用于实时频谱和解调
  • 最高 40 MHz 测量带宽,适用于测量现代数字信号电平
  • 轻松升级;多种应用程序可通过软件激活码扩展

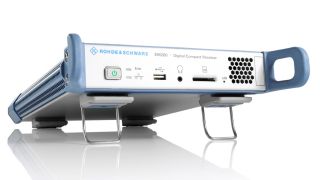

R&S®EM200
显示更多详细信息

R&S®EM200

多功能,易扩展

既可独立使用,也适用于分布式客户端/服务器网络结构

  • 最高 40 MHz 宽带 I/Q 流,提供 10 Gbit 接口选件
  • 兼容罗德与施瓦茨多种功能强大的高级监测、信号分析和地理定位软件模块,可以在各种应用中支持用户进行自动化操作
  • 关于远程控制命令 (SCPI/VITA49.0) 的详尽开放接口说明文档,便于外部系统集成商将接收机融入第三方解决方案

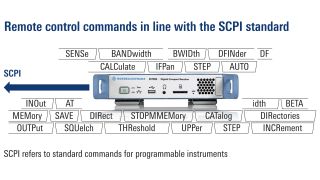

远程控制命令符合 SCPI
显示更多详细信息

远程控制命令符合 SCPI

紧凑设计

节省空间,重量轻,功耗低

  • 宽 ½ 19",高 1 HU
  • 标准机架适配器选件,可安装一台或两台接收机
  • 约重 3.5 kg (7.7 lb)
  • 功耗为 18 W 至 20 W(典型值),具体视安装的选件而定

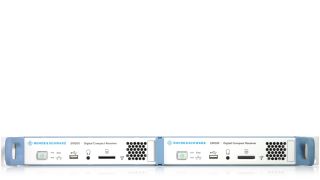

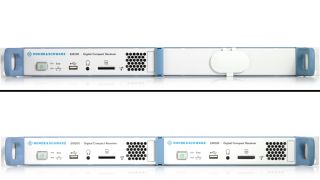

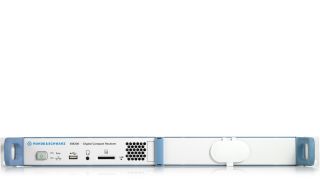

R&S®EM200 使用 19" 适配器,可安装一台或两台
显示更多详细信息

R&S®EM200 使用 19" 适配器,可安装一台或两台

应用范围广泛

力求在多种应用中提供出色的灵活性

接收机兼容多种功能强大的罗德与施瓦茨系统软件模块(如 R&S®RAMON 和 R&S®ARGUS 软件),可以在各种应用中支持用户进行自动化操作。这款实用工具设计紧凑,适用于多种应用:

  • 频谱监测
  • 频谱测量
  • 切换接收机
  • 宽带 I/Q 源
  • 干扰查找
  • 到达时间差
  • 测向(到达角)

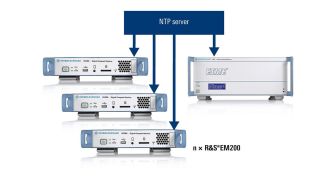

多台 R&S®EM200 可与一台或多台罗德与施瓦茨接收机和测向机一起使用
显示更多详细信息

多台 R&S®EM200 可与一台或多台罗德与施瓦茨接收机和测向机一起使用

即时可用,采用虚拟前面板控制

综合且多方位的接收机功能

  • 接收机即时可用,支持独立操作,提供所有功能
  • 综合可视化模式可用于信号测量和评估
  • 参考和故障排查工具,可集成到第三方应用程序
  • 可通过 LAN 在运行 Windows 操作系统的台式计算机、笔记本电脑或平板电脑上操作

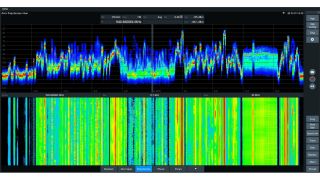

基于 Windows 系统的 R&S®EM200GUI 虚拟前面板控制(桌面视图)
显示更多详细信息

基于 Windows 系统的 R&S®EM200GUI 虚拟前面板控制(桌面视图)
