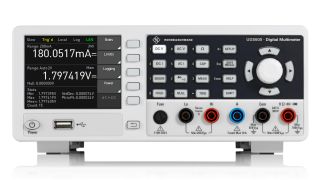

R&S®UDS Digital multimeter, Front Low
R&S®UDS Digital multimeter, Front Low
显示更多详细信息
R&S®UDS Digital multimeter

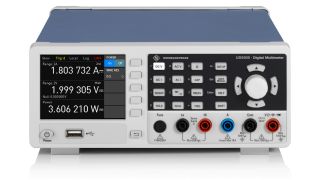

R&S®UDS Digital multimeter, Front High
R&S®UDS Digital multimeter, Front High
显示更多详细信息
R&S®UDS Digital multimeter

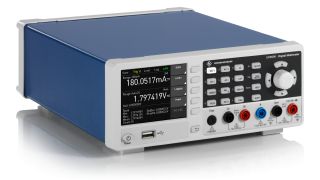

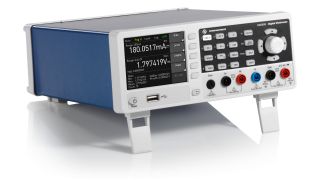

R&S®UDS Digital multimeter, Side view
R&S®UDS Digital multimeter, Side view
显示更多详细信息
R&S®UDS Digital multimeter
R&S®UDS Digital multimeter, Side view
R&S®UDS Digital multimeter, Side view
显示更多详细信息
R&S®UDS Digital multimeter

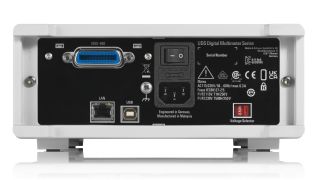

R&S®UDS Digital multimeter, Back low
R&S®UDS Digital multimeter, Back low
显示更多详细信息
R&S®UDS Digital multimeter

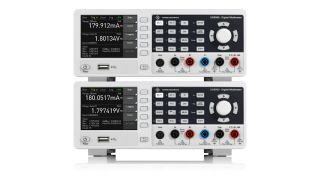

R&S®UDS Digital multimeter, Front Low
R&S®UDS Digital multimeter, Front Low
显示更多详细信息
R&S®UDS Digital multimeter

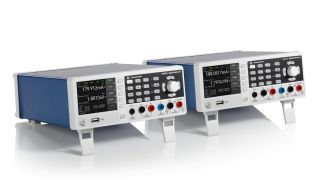

R&S®UDS Digital multimeter, Side view
R&S®UDS Digital multimeter, Side view
显示更多详细信息

主要特点

  • Number of digits: 5.5 or 6.5
  • True RMS measurement, AC, AC + DC
  • Simultaneous display of three measurements, e.g. DC, AC and statistics
  • Measurement and mathematic functions
  • Long-term data logging in CSV format via USB flash drive
  • R&S®Essentials
配置和报价

Built for accuracy, designed for ease

See more at a glance with three values displayed on one screen and a limit testing on a color display for easy minimum/maximum analysis. Users can effortlessly navigate through functions such as DCV, DCI, ACV, ACI, frequency, resistance, temperature, capacitance, diode and continuity testing. Beyond the standard 12 measurement functions, it offers built-in statistical and mathematical functions alongside an intuitive user interface, ensuring a smooth and efficient testing process. The R&S®UDS integrates remote control functions necessary for electric device research and development, production lines and quality assurance testing.

快速链接

特性和优点

See more

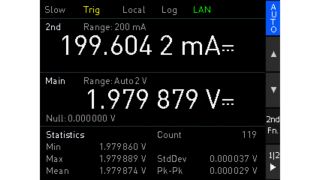

Simultaneous display of three measurements

Depending on the selected measurement function, users can display multiple measured values.

  • The primary measurement value is main.
  • A secondary measurement value can be activated or deactivated with the soft menu key. When activated, the secondary measurement value is displayed above the primary measurement value.
  • The statistical functions are displayed below the primary measurement value.

Display of three measurements
显示更多详细信息

Display of three measurements

Display of three measurements
Display of three measurements

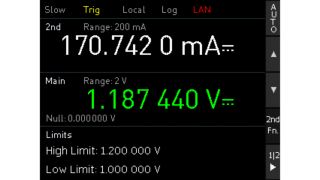

Limit testing

Minimum and maximum analysis

The R&S®UDS digital multimeters have programmable test functions, including max./min. limits on/off. The display color changes to indicate limit violations: red for out-oflimit values and green for within-limit values. An error tone can be toggled on/off with the beeper soft menu key and sounds when limits are violated.

Limit testing: Within limit values
显示更多详细信息

Limit testing: Within limit values

Limit testing: Within limit values
Limit testing: Within limit values

Resistance measurement

Two- and four-wire measurements

The R&S®UDS digital multimeters support both two-wire and four-wire measurements. They feature four front panel sockets: Com, V, Lo and Hi. For two-wire measurements, only the Com and V sockets are required. Four-wire measurements also require Lo and Hi sockets (Sense).

Data logging

Record all measured values

The data can be saved on an external USB flash drive or transferred to an
external PC with a USB or LAN connection. The data rate of up to 10 sample/s means the measured values are available every 100 ms.

Measurement versatility

Different measurement and mathematic functions

  • Up to 12 measurement functions: DCV, DCI, true RMS, ACV and ACI, frequency, two-wire and four-wire resistance, capacitance, continuity test, diode test, temperature, power.
  • Mathematic functions: limit testing, min./max., average, offset, DC power, dB, dBm

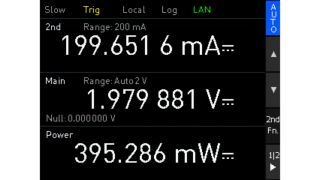

Power measurement
显示更多详细信息

Power measurement

Power measurement
Power measurement
