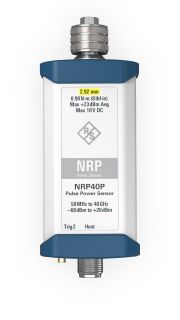

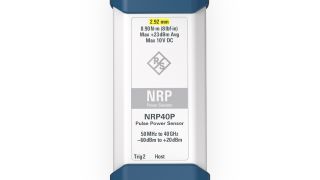

R&S®NRPxxP 脉冲功率探头是雷达应用的理想选择。在开发或者安装维护中，必须测量脉冲特性和输出功率。在雷达系统和雷达组件中也需要相似的测量。探头的最大视频带宽为 30 MHz，上升/下降时间小于 13 ns，能够测量 50 ns 宽度的脉冲。关键脉冲参数可自动确定，以便简化测量和防止操作失误。针对重复信号的高分辨率模式可提高采样率，进而显示信号放大部分。
时间分辨率高达 100 ps
一些应用需要显示信号放大部分，例如脉冲上升沿。迹线模式的分辨率为 12.5 ns，并需要高密度采样以提升图形显示效果。重复信号的等效时间采样可以实现 100 ps 的时间分辨率。

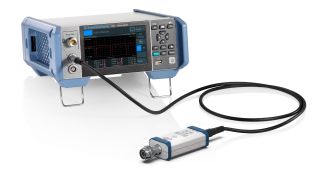

包含 R&S®NRP18P 和 R&S®NRX 的测试装置
非常适用于 R&S®NRX；
自动脉冲分析有助于测量重要的脉冲参数，无需使用标记进行复杂的测量。脉冲波形的变动会立即反映在测量结果中。

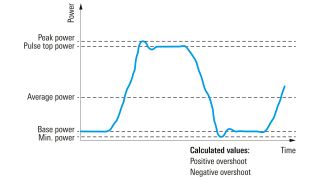

时间参数
分析脉冲和调制信号
R&S®NRPxxP 脉冲功率探头可用于分析脉冲和/或调制信号。探头的采样率高达 80 Msample/s，能够以 12.5 ns 的时间分辨率重构雷达脉冲的功率包络。探头具有自动脉冲分析功能，能够自动测量 15 项重要的脉冲参数，进而简化并加快测试。

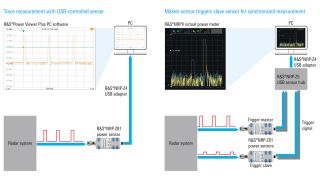

使用 NRPxxP 的雷达应用测量
结合基本单元或 R&S®NRP-Z5；
R&S®NRPxxP 脉冲功率探头和 R&S®NRX 基本单元或 R&S®NRP-Z5 探头集线器组合，可以作为触发源使用。在触发发送端模式下，通过功率探头内部的测量信号得到触发信号，并传输给基本单元或探头集线器以作进一步使用。使用该触发信号可以外部触发其他所有连接的探头。

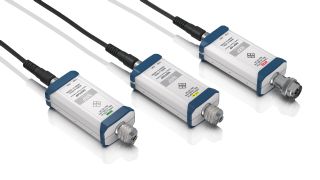

使用 R&S®NRP-Z5 的操作
