R&S®NRPxxA/AN

专为 EMC 应用而设计

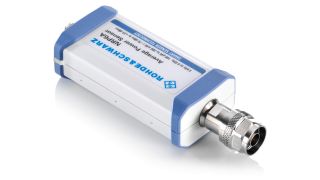

R&S®NRPxxA/AN
打开灯箱

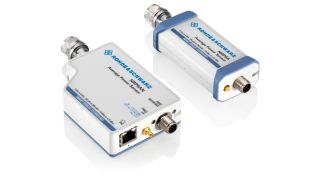

R&S®NRPxxA/AN
打开灯箱

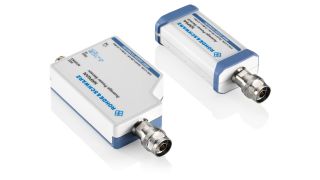

R&S®NRPxxA/AN
打开灯箱

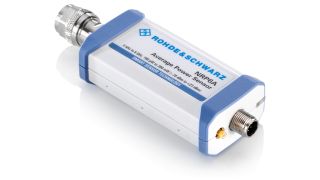

R&S®NRPxxA/AN
打开灯箱

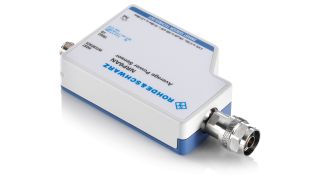

R&S®NRPxxA/AN
打开灯箱

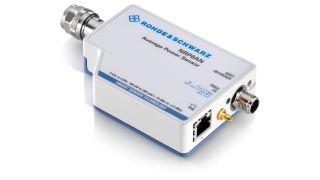

R&S®NRPxxA/AN
打开灯箱
R&S®NRPxxA/AN,侧视图 R&S®NRPxxA/AN,侧视图 R&S®NRPxxA/AN,侧视图 R&S®NRPxxA/AN,侧视图 R&S®NRPxxA/AN,侧视图 R&S®NRPxxA/AN,侧视图

主要特点

  • 测量范围:-70 dBm 至 +23 dBm
  • 频率范围:8 kHz 至 18 GHz
  • 专为 EMC 应用而设计
  • 测量连续平均功率
  • 针对连续波及调制信号的 93 dB 动态范围

专为 EMC 应用而设计

EMC 应用通常仅关注平均功率。因此,R&S®NRPxxA/AN 平均功率探头最为合适。这些探头的测量范围涵盖无线电通信频段以及低至 8 kHz 的重要低频段。用户可通过三通道二极管功率探头的卓越特性而获益,包括最高 93 dB 的动态范围、调制对测量的影响极低,以及出众的阻抗匹配。

特性和优点

较宽的测量和频率范围

-70 dBm 至 +23 dBm,8 kHz 至 18 GHz

R&S®NRPxxA/AN 平均功率探头涵盖 -70 dBm 至 +23 dBm 的宽测量范围,包括适用于连续波和调制信号的 93 dB 高动态范围。频率范围介于 8 kHz 至 18 GHz,涵盖无线电通信频段和重要低频段。

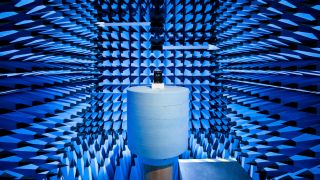

R&S®NRPxxA/AN 专为 EMC 应用而设计
打开灯箱

R&S®NRPxxA/AN 专为 EMC 应用而设计

灵活的连接选项

使用显示单元,或直接连接到电脑

功率探头随带多种可拆卸电缆,方便轻松连接到 R&S®NRX 等不同的显示单元。探头端部提供螺丝连接,以防止电缆意外松开。
R&S®NRP-ZKU USB 接口电缆可通过 USB 接口将功率探头连接至笔记本电脑/个人电脑。这能显著节省空间和成本,无需基本单元。

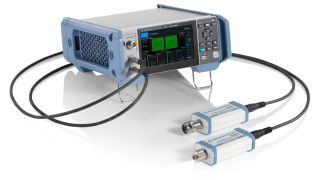

R&S®NRX 装置,带 NRP 探头
打开灯箱

R&S®NRX 装置,带 NRP 探头

支持 LAN 的功率测量

远程监控应用的理想选择

LAN 功率探头适用于远程监控应用,比如适用于卫星系统或粒子加速器(需要将探头放置于系统内的不同位置)。即使各个测试点与控制中心之间的距离较远,LAN 接口也能轻松应对。

R&S®NRPxxSN/TN/AN 功率探头的 LAN 操作
打开灯箱

R&S®NRPxxSN/TN/AN 功率探头的 LAN 操作

可用型號

可用型號
型号
频率范围
电平范围
LAN 接口
连接器类型

R&S®NRP6A

订单号码 1424.6796.02

频率范围
8 kHz - 6 GHz
电平范围
-70 dBm - +23 dBm
LAN 接口
连接器类型
N (m)

R&S®NRP6AN

订单号码 1424.6809.02

频率范围
8 kHz - 6 GHz
电平范围
-70 dBm - +23 dBm
LAN 接口
连接器类型
N (m)

R&S®NRP18A

订单号码 1424.6815.02

频率范围
8 kHz - 18 GHz
电平范围
-70 dBm - +23 dBm
LAN 接口
连接器类型
N (m)

R&S®NRP18AN

订单号码 1424.6821.02

频率范围
8 kHz - 18 GHz
电平范围
-70 dBm - +23 dBm
LAN 接口
连接器类型
N (m)

可用选项

接口电缆
产品
描述
R&S®NRP-ZKU

订单号码 1419.0658.02

描述

USB-A 接口电缆,长度:0.75 m

R&S®NRP-ZKU

订单号码 1419.0658.03

描述

USB-A 接口电缆,长度:1.5 m

R&S®NRP-ZKU

订单号码 1419.0658.04

描述

USB-A 接口电缆,长度:3 m

R&S®NRP-ZKU

订单号码 1419.0658.05

描述

USB-A 接口电缆,长度:5 m

R&S®NRP-ZKC

订单号码 1425.2442.02

描述

USB-C interface cable, length: 0.75 m

R&S®NRP-ZKC

订单号码 1425.2442.03

描述

USB-C interface cable, length: 1.5 m

R&S®NRP-ZKC

订单号码 1425.2442.04

描述

USB-C interface cable, length: 3.0 m

R&S®NRP-ZK6

订单号码 1419.0664.02

描述

六极接口电缆,长度:1.5 m

R&S®NRP-ZK6

订单号码 1419.0664.03

描述

六极接口电缆,长度:3 m

R&S®NRP-ZK6

订单号码 1419.0664.04

描述

六极接口电缆,长度:5 m

R&S®NRP-ZK8

订单号码 1424.9408.02

描述

八极接口电缆,长度:1.50 m

用于连接 R&S®NRX;

R&S®NRP-ZK8

订单号码 1424.9408.03

描述

八极接口电缆,长度:3.00 m

用于连接 R&S®NRX;

R&S®NRP-ZK8

订单号码 1424.9408.04

描述

八极接口电缆,长度:5.00 m

用于连接 R&S®NRX;

接口附件
产品
描述
R&S®NRP-Z5

订单号码 1146.7740.02

描述

USB 探头集线器

R&S®NRP-Z5 可最多托管四个 R&S®NRPxxS(N)、R&S®NRPxxT(N)、R&S®NRPxxA(N) 或 R&S®NRP-Z 探头。专业的触发解决方案支持所有连接探头的同步内外部触发。

文件
产品
描述
R&S®DCV-1

订单号码 0240.2187.06

描述

校准值文件

R&S®DCV-ZP

订单号码 1173.6506.02

描述

校准值文件打印输出
