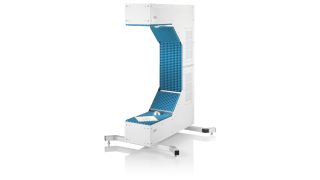

R&S®QAR50 高质量汽车电子天线罩测试仪

经济且快速高质量的汽车电子天线罩和保险杠测试。快速、 精确。

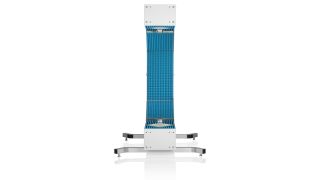

R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱

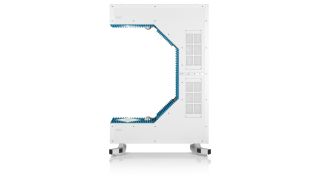

R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱
R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱
R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱
R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱
R&S®QAR50 高质量汽车电子天线罩测试仪
打开灯箱
R&S®QAR50 天线罩测试仪 R&S®QAR50 天线罩测试仪 R&S®QAR50 Quality automotive radome tester, Application Image R&S®QAR50 Quality automotive radome tester, Application Image R&S®QAR50 天线罩测试仪 R&S®QAR50 天线罩测试仪

主要特点

  • 在汽车电子雷达频段(72 GHz 至 82 GHz)执行准确传输损耗、反射和频率响应测量
  • 单次测量即可提供空间分辨传输相位图像和高分辨率反射图像
  • 周期短至 4 秒,确保出色的生产吞吐量
  • 符合标准的验证组件包含用于传输损耗和反射验证的验证板,精度可与矢量网络分析仪相媲美
  • 支持内部自校准,无需进行拆卸或使用外部设备

在从设计到生产线末端测试的各个阶段确保汽车电子天线罩和保险杠的质量

R&S®QAR50 非常适用于在生产线末端 (EOL) 在汽车电子雷达频率范围内准确测试汽车电子天线罩和保险杠的质量。测试仪体型较大,能够轻松容纳笨重庞大的保险杠,并进行空间分辨测量以评估设计标识的均匀性。借助创新的硬件概念,经济实惠的 R&S®QAR50 可以实现具有明显优势的测量速度,并通过模块化软件概念满足用户的具体要求,确保快速准确地测试天线罩和保险杠。

特性和优点

结果真实可靠

测量集群为样品提供更多空间

R&S®QAR50 利用约 200 个接收和发射天线以快速测量材料、保险杠和标识的特性。微波成像技术运用电子聚焦,能够更加灵活地定位测量天线,从而为重要的被测材料留有充足的空间。

电子聚焦增强了装置的稳健性。仅使用单个天线接收和发射信号时,反射能量须准确返回原点。即使是轻微的角度偏差,也会对测量值产生巨大影响。R&S®QAR50 装备大型天线阵列,可允许更大的位置公差,同时提供高精度的测量结果。在此位置公差范围内,仪器可确保结果正确且可靠。用户甚至可以在生成的图像中对错误的样品位置进行光学跟踪。

打开灯箱

测试仪配有数百个接收和发射天线,通过全电子聚焦方式快速测量材料、保险杠和标识的特性。

全电子聚焦

无需移动即可对保险杠和天线罩进行特性测量。

借助微波成像技术,R&S®QAR50 无需移动即可多方位表征样品。软件不仅提供空间分辨反射和传输相位图像,还支持对被测设备进行频率分辨分析。

生成的图像可用于详细分析样品的均匀性,而时间门控频率响应则确保在制造过程中优化产品并保持稳定质量。

强大的反射测量有助于在生产中掌握样品的正确位置。
打开灯箱

强大的反射测量有助于在生产中掌握样品的正确位置。

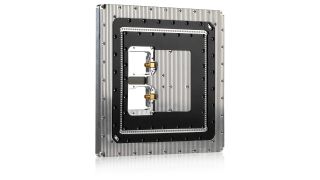

强大的反射测量有助于在生产中掌握样品的正确位置。

高精度和高价值

通过软件激活码启用测量功能

R&S®QAR50 采用模块化软件概念,支持灵活配置仪器。软件选件可通过激活码启用,因此用户能够根据具体的测量要求配置仪器。
仪器标配实用软件以进行准确的反射和传输损耗测量,并且可以添加以下测量功能以进一步增强性能:

  • 72 GHz 至 82 GHz 频率范围内的传输和反射频率响应测量,以在生产过程中持续监控质量
  • 高分辨率传输相位成像,以针对所测部件进行均匀性分析
  • 高分辨率反射测量,以在操作过程中进行各种分析和错误跟踪

仪器的频率分辨测量功能有助于保持一致的生产质量。
打开灯箱

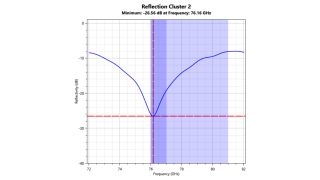

仪器的频率分辨测量功能有助于保持一致的生产质量。

频率分辨测量功能有助于保持一致的生产质量。

Material characterization

Evaluate the characteristics of newly developed materials, colors and coatings.

New colors and coatings need to be characterized for their radar transparency throughout the development process. In order to develop radar transparent primers and paints, the permittivity of each layer plays an important role. So far, vector network analyzers have been used in order to calculate permittivity and loss factor of each layer. The R&S®QAR50-K20 phase measurement together with the permittivity calculator allows for an easy and fast characterization of each layer without the challenges coming with of quasi-optical, or waveguide based setups.

打开灯箱

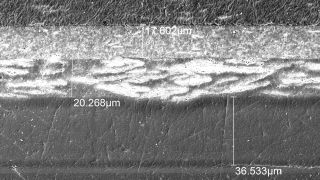

The thickness of each layer is measured under a microscope and then used as input parameter for permittivity calculation.

精度精确

传输和反射测量结果可追溯

测量设备的精度和可重复性需要定期进行验证。获得 DAkkS 认证的验证组件 R&S®QAR50-Z44 可以验证 R&S®QAR50 是否符合国家/国际标准 (*)。这将确保审计流程顺利无阻。
R&S®QAR50-Z44 能够简单快速地验证仪器的精度和可重复性。仪器的反射和传输损耗测量性能均可进行验证。R&S®QAR50-Z44 可以定期监控用于生产线末端 (EOL) 的测试设备的质量。

(*) 2022 年第三季度上市

打开灯箱

R&S®QAR50-Z44 验证组件符合 DAkkS 标准,包含用于传输损耗和反射验证的验证板。

快速测量

优化循环时间以实现高产量。

R&S®QAR50 能够快速处理大量数据。只需几秒,测试仪即可生成图像和频率图。根据参数选择和保存的数据,可以实现快速测量循环。因此,R&S®QAR50 测试解决方案非常适合高吞吐量生产线。

打开灯箱

4 秒内即可提供结果,速度快于其他仪器

自校准功能

校准时无需拆卸装置

校准标准测试与测量设备时,通常须根据特殊的校准程序拆卸并设置设备。但是,R&S®QAR50 无需拆卸即可进行校准。
仪器内置球面反射器,可以快速进行校准。用户无需移除或重新放置测量装置。这可以在进行定期维护或非计划维修时大幅缩短停机时间。

打开灯箱

校准球直接集成到 R&S®QAR50,支持快速进行内联校准。

可用型号

可用型号
型号
描述

R&S®QAR50 vertical polarization

订单号码 1343.0099K02

描述
基本单元,支持垂直极化。

R&S®QAR50 horizontal polarization

订单号码 1343.0099K03

描述
基本单元,支持水平极化。

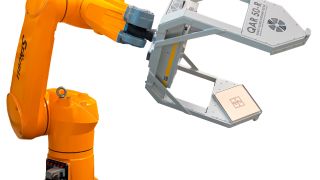

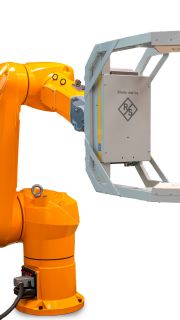

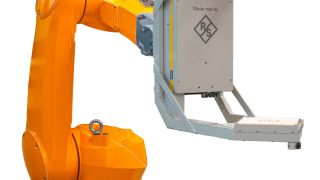

R&S®QAR50-R

描述
base unit for robot assembly. Polarization agnostic.
规格
分析和测量
频率范围 无 R&S®QAR50-K10 76-81 GHz
含 R&S® QAR50-K10 72-82 GHz
测量对象   单向传输损耗
反射
传输相位
周期时间 < 4 秒
极化 垂直/水平
尺寸
验证组件 R&S®QAR50-Z44,用于传输损耗和反射验证
集群之间的距离 990 mm
仪器尺寸 C 形 310 x 1420 x 970 mm

U 形 310 x 970 x 1420 mm

重量 78 kg
电气参数
许可 CE、UKCA、RCM、FCC*、KC、VDE、CSA*

额定电压 110-220 V
额定功率 < 300 W
接口 以太网 SCPI
服务水平协议 覆盖全球

可用选项

频率分辨率
产品
描述
R&S®QAR50-K10

订单号码 1343.2091.02

描述

频率响应

频率范围扩展到 72 GHz 至 82 GHz 以进行传输损耗和反射测量。检测和查验材料的正确频率适应性(软件许可)。

相位图像
产品
描述
R&S®QAR50-K20

订单号码 1343.2110.02

描述

相位模板评估

扩展仪器的测量对象以涵盖传输相位。针对天线罩/保险杠进行均匀性分析(软件许可)。

高清反射图像
产品
描述
R&S®QAR50-K30

订单号码 1343.2133.02

描述

高清反射

启用仪器的高分辨率反射成像功能。支持在研发中快速检测干扰并正确进行被测设备定位(软件许可)。

验证套件
产品
描述
R&S®QAR50-Z44

订单号码 1343.0082.02

描述

适用于传输损耗和反射测量的验证套件

支持 R&S®QAR50 验证是否符合国家/地区和国际标准。确保测量结果具有出色的准确性和可重复性。

相关资源

Application card: Characterizing the material properties of polymers for automotive applications

Automotive radar sensors can be well hidden behind bumpers, but require to be transmissible in the respective frequency domain. To select proper colors and coatings for such bumpers, the respective material properties must be known. This application card demonstrates a simplified method for material characterization in the automotive radar frequency domain (76 GHz to 81 GHz) based on the R&S®QAR50 automotive radome tester.

More information

Application video series: The complete guide to radome and bumper testing using the R&S®QAR50

The R&S®QAR50 automotive radome and bumper tester uses microwave imaging to give you deep insight into the material quality of your radomes during development and production but so much more. Watch this series of 14 application videos to get guidance on the options and capabilities of the QAR from measurement principles and calibration to frequency response and phase mask measurements.

More information

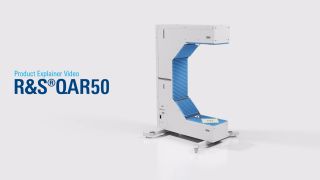

Explainer video: Explore the benefits of the R&S®QAR50
