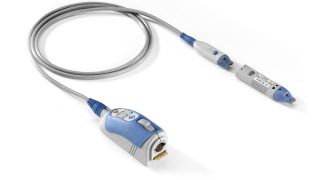

Active differential probes for oscilloscopes, Front view

主要特点

  • 带宽:200 MHz 至 4.5 GHz
  • 输入阻抗:最高 1 MΩ
  • 低输入电容:低于 1 pF
  • 极低的加性噪声
  • 集成式高精度直流电压表(某些型号不提供)

简介

高时钟速率下一般会使用差分信号,以便有效抑制共模干扰并且准确无误地传输宽带信号。只有使用差分探头,才能精确地测量这类信号。罗德与施瓦茨有源差分探头提供高输入阻抗、高共模抑制比以及低加性噪声。

特性和优点

可用型號

可用型號
型号
带宽
最大电压
衰减因子
输入阻抗
注释
R&S®RT-ZD02

R&S®RT-ZD02

订单号码 1333.0821.02

带宽
200 MHz
最大电压
±20 V
衰减因子
10:1
输入阻抗
1 MΩ || 3.5 pF
注释
BNC 接口,50 Ω 输出
R&S®RT-ZD08

R&S®RT-ZD08

订单号码 1333.0838.02

带宽
800 MHz
最大电压
±15 V
衰减因子
10:1
输入阻抗
200 kΩ || 1.0 pF
注释
BNC 接口,50 Ω 输出
R&S®RT-ZD10

R&S®RT-ZD10

订单号码 1410.4715.02

带宽
1.0 GHz
最大电压
信号插座间:±5 V(±5 V 偏置补偿);信号插座接地:±8 V(±22 V 偏置补偿)
衰减因子
10:1
输入阻抗
1 MΩ || 0.6 pF
注释
ProbeMeter 和微控按钮可用于仪器控制,罗德与施瓦茨探头接口,包括 R&S®RT-ZA15 外部衰减器;
R&S®RT-ZD20

R&S®RT-ZD20

订单号码 1410.4409.02

带宽
1.5 GHz
最大电压
信号插座间:±5 V(±5 V 偏置补偿);信号插座接地:±8 V(±22 V 偏置补偿)
衰减因子
10:1
输入阻抗
1 MΩ || 0.6 pF
注释
R&S®ProbeMeter 和微控按钮可用于仪器控制,罗德与施瓦茨探头接口
R&S®RT-ZD30

R&S®RT-ZD30

订单号码 1410.4609.02

带宽
3.0 GHz
最大电压
信号插座间:±5 V(±5 V 偏置补偿);信号插座接地:±8 V(±22 V 偏置补偿)
衰减因子
10:1
输入阻抗
1 MΩ || 0.6 pF
注释
R&S®ProbeMeter 和微控按钮可用于仪器控制,罗德与施瓦茨探头接口
R&S®RT-ZD40

R&S®RT-ZD40

订单号码 1410.5205.02

带宽
4.5 GHz
最大电压
信号插座间:±5 V(±5 V 偏置补偿);信号插座接地:±8 V(±22 V 偏置补偿)
衰减因子
10:1
输入阻抗
1 MΩ || 0.4 pF
注释
R&S®ProbeMeter 和微控按钮可用于仪器控制,罗德与施瓦茨探头接口

可用选项

探头附件
产品
描述

订单号码 1416.0428.02

描述

迷你夹

10 个夹子

订单号码 1416.0434.02

描述

微型夹

4 个夹子

订单号码 1416.0440.02

描述

导线(5 x 6 cm/2.4",5 x 15 cm/5.9")

订单号码 1417.0609.02

描述

适用于 R&S®RT-ZD10/20/30 的探针组件;

20 个焊接式信号针,10 个信号针(间距可调),2 个点测式适配器,2 个方形插孔式适配器

订单号码 1417.0867.02

描述

适用于 R&S®RT-ZD40 的探针组件;

100 个焊接式信号针,2 个插座适配器(间距可调),2 个刚性点测式适配器,2 个弹簧点测式适配器

订单号码 1417.0909.02

描述

适用于 R&S®RT-Zx 探头的 N 型阳性适配器

使用 N 型阴性连接器将 R&S®RT-Zx 探头连接到频谱和网络分析仪;USB 端口用于供电和通信

订单号码 1410.4744.02

描述

外部衰减器

10:1,2.0 GHz,1.3 pF,60 V DC,42 V AC(峰值),适用于 R&S®RT-ZD20/30 探头。包含在 R&S®RT-ZD10 中。

订单号码 1317.7031.02

描述

适合 R&S®RTO2000 和 R&S®RTE1000 示波器的探头保护袋

订单号码 1335.7875.02

描述

适用于所有罗德与施瓦茨示波器探头和小零件的附件箱
