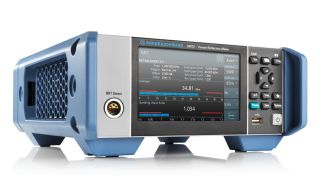

R&S®NRT2 功率反射计

前向和反射功率测量

R&S®NRT2 功率反射计
打开灯箱
R&S®NRT2 功率反射计
打开灯箱
R&S®NRT2 功率反射计
打开灯箱
R&S®NRT2 功率反射计
打开灯箱
R&S®NRT2 功率反射计
打开灯箱
R&S®NRT2 功率反射计
打开灯箱

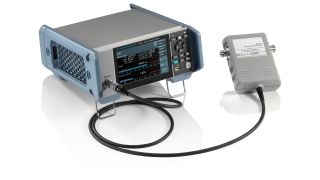

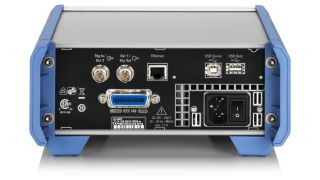

R&S®NRT2 power reflection meter, Application Image R&S®NRT2 功率反射计,前视图 R&S®NRT2 功率反射计,高前视图 R&S®NRT2 功率反射计,侧视图 R&S®NRT2 功率反射计,后视图 R&S®NRT2 功率反射计,主视图

主要特点

  • 简单的触摸屏操作
  • 同时显示前向和反向功率
  • 模拟柱状图和自动定标
  • 直观监测限值
  • 完全兼容之前型号的代码

定向功率计测量源以及负载之间的前向功率和反射功率

定向功率探头可在操作条件下测量前向和反向功率。安装、维修和监测发射机、天线与射频发生器时,需要执行这些测量。R&S®NRT 系列包括 R&S®NRT2 功率反射计和各种 R&S®NRT-Zxx 定向功率探头。 反射计具有丰富的测量功能和一流精度,可用于研发和生产应用。

特性和优点

简单的触摸屏操作

R&S®NRT2 基本单元结构紧凑,并采用智能菜单和先进的 5" 触摸屏,操作非常简单。用户可以在顶层菜单中切换重要测量, 还可以在结构清晰的子菜单中设置其他参数。
用户可以一键使用重要功能,例如设置频率、调零和创建截图。

R&S®NRT2 基本单元具备 5 英寸 触摸屏
打开灯箱

R&S®NRT2 基本单元具备 5 英寸 触摸屏

同时显示前向和反向功率

R&S®NRT-Zxx 定向功率探头可同时测量前向和反向功率,并计算负载匹配等其他参数。之后,R&S®NRT2
功率反射计可同时显示一个前向参数和一个反向参数。调制信号的幅度分布 (CCDF) 等计算结果也可显示。

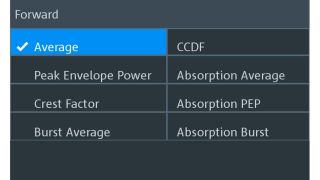

R&S®NRT2 前向测量功能
打开灯箱

R&S®NRT2 前向测量功能

R&S®NRT 系列

多种探头型号

定向功率探头可在操作条件下测量前向和反向功率。安装、维修和监测发射机、天线与射频发生器时,需要执行这些测量。R&S®NRT 系列包括 R&S®NRT2 功率反射计和各种 R&S®NRT-Zxx 定向功率探头。

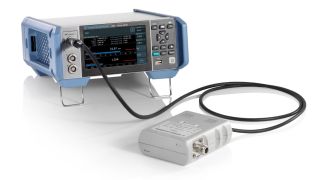

R&S®NRT2,带 R&S®NRT 定向功率探头
打开灯箱

R&S®NRT2,带 R&S®NRT 定向功率探头

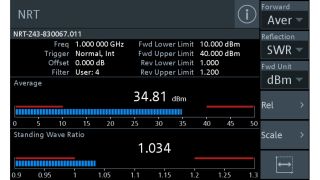

模拟柱状图和自动定标

直观监测限值

测量结果可以数值或模拟柱状图的方式显示。为了定义模拟测量范围,用户可以一键启动自动定标功能。模拟柱状图的刻度将根据测量信号进行优化调整。用户能够直观地监测每次测量。超出定义的限值范围的数值以红色高亮显示。模拟柱状图还通过图形方式以红色显示定义的限值。

模拟柱状图,限值可配置
打开灯箱

模拟柱状图,限值可配置

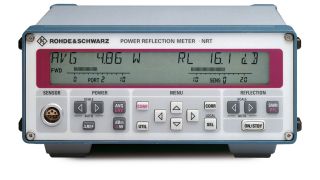

完全兼容之前型号的代码

R&S®NRT2 的远程命令与之前 R&S®NRT 型号的命令集完全兼容。这确保能够简单地更换设备和集成到现有系统(无需再做编程)。R&S®NRT2 功率反射计可通过 USB 或 LAN 远程控制。R&S®NRT2-B8 选件增加了 GPIB (IEEE 488) 远程控制功能。

完全兼容 R&S®NRT 的代码
打开灯箱

完全兼容 R&S®NRT 的代码

 R&S®NRT 产品已逐步淘汰,取而代之的则是 R&S®NRT2。

可用选项

基本单元
产品
描述
R&S®NRT2-B8

订单号码 1430.1505.02

描述

GPIB/IEEE488 接口

定向功率探头
产品
描述
R&S®NRT-Z14

订单号码 1444.0006.02

描述

定向功率探头

平均测量范围:6 mW 至 120 W;PEP 测量范围:0.4 W 至 300 W;频率范围:25 MHz 至 1 GHz

R&S®NRT-Z44

订单号码 1444.0012.02

描述

定向功率探头

Measurement range AVG:3 mW to 120 W; measurement range PEP:0.4 to 300 W; frequency range:200 MHz to 4 GHz

推荐的附件
产品
描述
R&S®NRT-Z2

订单号码 1081.2505.10

描述

延长线

10 m 延长线,适用于 NRT-Z 功率探头

R&S®NRT-Z2

订单号码 1081.2505.30

描述

延长线

30 m 延长线,适用于 NRT-Z 功率探头

R&S®NRT-Z5

订单号码 1400.6909.02

描述

接口适配器

适用于 NRT-Z 功率探头的 USB 接口适配器

R&S®ZZA-KNA22

订单号码 1177.8184.00

描述

19" 适配器 BW2010-ADV,2HU 1/2 + 备用

R&S®ZZA-KNA24

订单号码 1177.8149.00

描述

19" 适配器 BW2010 Advanced,机柜 2 HU 1/2 + ½

文件
产品
描述
R&S®DCV-1

订单号码 0240.2187.06

描述

校准值文件

R&S®DCV-ZP

订单号码 1173.6506.02

描述

校准值文件打印输出
