R&S®ZNLE 矢量网络分析仪

R&S®ZNLE 矢量网络分析仪
打开灯箱
R&S®ZNLE 矢量网络分析仪
打开灯箱
R&S®ZNLE 矢量网络分析仪
打开灯箱
R&S®ZNLE 矢量网络分析仪
打开灯箱
R&S®ZNLE 矢量网络分析仪
打开灯箱

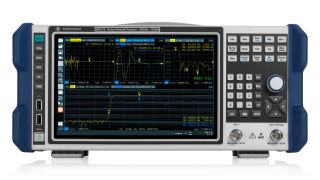

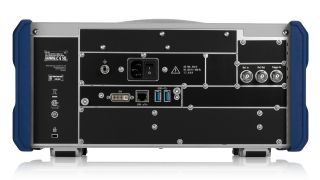

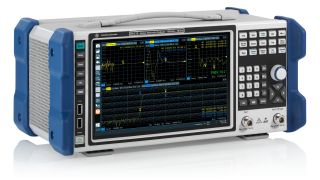

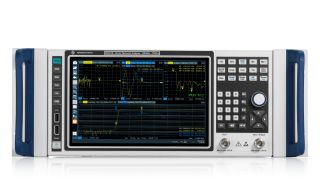

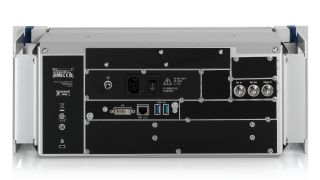

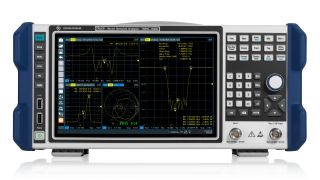

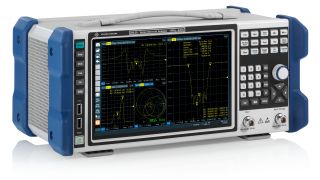

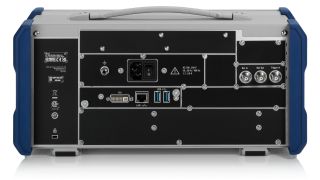

R&S®ZNLE 矢量网络分析仪,前视图 R&S®ZNLE 矢量网络分析仪,高前视图 R&S®ZNLE 矢量网络分析仪,侧视图 R&S®ZNLE 矢量网络分析仪,主视图 R&S®ZNLE 矢量网络分析仪,后视图

主要特点

  • 宽频率范围:100 kHz 至 20 GHz
  • 适合生产和教育领域
  • 轻松配置,直观易用
  • 性能卓越,经济高效
  • 3 年延长保修

基础网络分析应用的理想之选

R&S®ZNLE 矢量网络分析仪易于用户使用,适用于基础测量任务

闻名遐迩的优质设计、创新的用户界面以及紧凑尺寸使 R&S®ZNLE 非常适用于矢量网络分析仪基础应用。时域分析选件 (R&S®ZNL-K2) 和故障点距离测量选件 (R&S®ZNL-K3) 提供重要的通用测试功能,完善了 R&S®ZNLE。

特性和优点

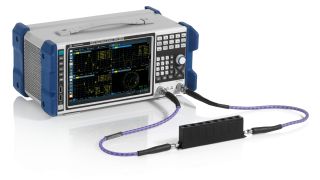

独立操作

一体化解决方案满足所有测量需求

R&S®ZNLE 无需使用外部电脑或显示器即可配置测量装置。启动仪器后即可开始测量。R&S®ZNLE 使用运行 Windows 10 操作系统的强大的全集成式电脑平台,是一款综合性的单机式分析仪。固态硬盘提供快速启动时间和可靠性,适用于要求严格的应用。

独立操作
打开灯箱

独立操作

分析仪的体积远小于其他同类产品,并具备 10.1" 触摸屏和集成式计算机,单机即可满足所有测量需求。

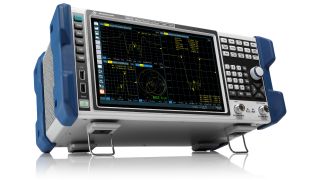

价值高,性能出色

迹线噪声低,测量速度快,性价比高

R&S®ZNLE 具有低迹线噪声,典型值为 0.001 dB(在 10 kHz 测量带宽下)。这样一来,即便在较宽的中频带宽下,分析仪也能进行高度准确、稳定且可重复的测量。R&S®ZNLE 利用较大的测量带宽快速执行测量,同时提供出色的迹线稳定性。

价值高,性能出色
打开灯箱

价值高,性能出色

R&S®ZNLE 高性能矢量网络分析仪经济实惠,非常适用于全双端口测量。

操作简便

易于配置、校准、使用

配置 R&S®ZNLE 时,只需要考虑三个因素:

  • 选择频率范围
  • 确定是否需要 GPIB 接口
  • 确定是否需要执行时域分析或故障点距离测量
分析仪具有创新的用户界面,支持非常轻松地设置校准和测量。

操作简便
打开灯箱

操作简便

配置 R&S®ZNLE 时,只需考虑三个因素:选择频率范围,确定是否需要执行时域测量,确定是否需要 GPIB 接口。

可用型號

可用型號
型号
端口
频率
连接器

R&S®ZNLE3

订单号码 1323.0012.53

端口
2
频率
3 GHz
连接器
N 型(阴性)

R&S®ZNLE4

订单号码 1323.0012.54

端口
2
频率
4.5 GHz
连接器
N 型(阴性)

R&S®ZNLE6

订单号码 1323.0012.56

端口
2
频率
6 GHz
连接器
N 型(阴性)

R&S®ZNLE14

订单号码 1323.0012.64

端口
2
频率
14 GHz
连接器
N 型(阴性)

R&S®ZNLE18

订单号码 1323.0012.70

端口
2
频率
18 GHz(在过范围模式下最高达 20 GHz)
连接器
N 型(阴性)

可用选项

其他
产品
描述
R&S®ZNLE-B100

订单号码 1303.9272.02

描述

低频扩展

向下扩展频率范围至 100 kHz

R&S®FPL1-B10

订单号码 1323.1890.02

描述

GPIB 接口

附加接口,用于通过 GPIB 远程控制,插入单元

R&S®FPL1-Z1

订单号码 1323.1960.02

描述

硬防护罩

R&S®FPL1-Z2

订单号码 1323.1977.02

描述

运输包,透明罩

R&S®FPL1-Z3

订单号码 1323.1683.02

描述

便携式皮套

R&S®FPL1-Z5

订单号码 1323.1690.02

描述

防眩光膜

R&S®FPL1-Z6

订单号码 1323.1954.02

描述

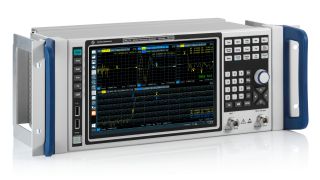

机架安装套件

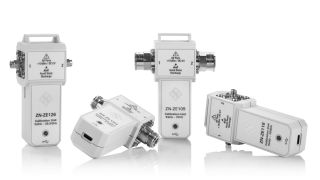

R&S®ZN-Z103

订单号码 1321.1828.02

描述

校准单元,单端口,N 型阴性,2 MHz 至 4 GHz

R&S®ZN-Z103

订单号码 1321.1828.12

描述

校准单元,单端口,N 型阴性,1 MHz 至 6 GHz

软件选件
产品
描述

订单号码 1323.1819.02

描述

时域分析

显示不连续性、反射因数或阻抗与延迟/长度。包含阶跃和脉冲响应、低通/带通频率间隔和门控 S 参数。

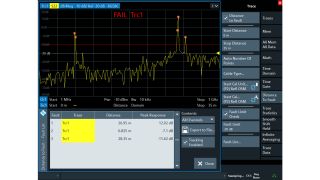

R&S®ZNL-K3

订单号码 1323.1825.02

描述

故障点距离测量

可以检测电缆故障和连接器

其他
产品
描述
R&S®ZN-B13

订单号码 1303.7840.02

描述

50 Ω 宽带限幅器

相关视频

R&S®ZNLE 矢量网络分析仪极其紧凑

R&S®ZNLE 是一款极其紧凑的独立式台式分析仪,可为被测设备留有充足的测试台空间。

2月 12, 2019

R&S®ZNLE 矢量网络分析仪具有可靠的射频性能

R&S®ZNLE 矢量网络分析仪是一款经济型仪器,具备低迹线噪声以进行稳定、可重复测量,且动态范围宽、测量速度快。

2月 12, 2019

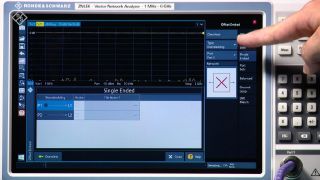

R&S®ZNLE 矢量网络分析仪支持快速进行一步校准

R&S®ZNLE 可提供多种有用功能,例如去嵌、夹具补偿和使用校准单元。

2月 12, 2019

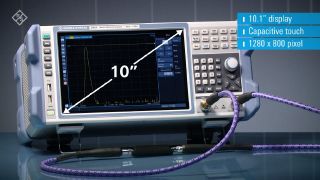

R&S®ZNLE 矢量网络分析仪易于使用

R&S®ZNLE 矢量网络分析仪配备 10.1" 大触摸屏和多点触摸功能,使用简单。您可以简单使用上下文相关帮助菜单获取所需信息,进而轻松完成操作。

2月 12, 2019
