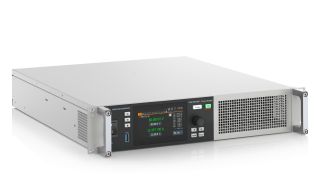

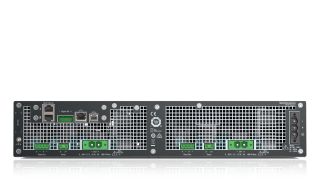

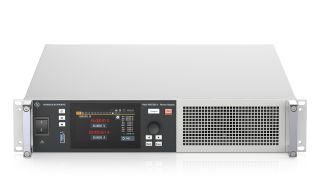

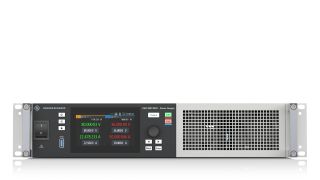

R&S®NGT3600 电源系列

R&S Essentials 高性能型电源

R&S®NGT3600 电源系列
显示更多详细信息
R&S®NGT3600 电源系列
显示更多详细信息
R&S®NGT3600 电源系列
显示更多详细信息
R&S®NGT3600 电源系列
显示更多详细信息
R&S®NGT3600 电源系列
显示更多详细信息
R&S®NGT3600 电源系列
显示更多详细信息

主要特点

  • 最大输出功率:3600 W
  • 每个通道输出的最大电压:80 V
  • 每个通道输出的最大电流:50 A
  • 多设备模式下最高 480 V 或 300 A
  • 在线产品配置程序使用直观且价格透明
  • R&S®ESSENTIALS

提升测试能力

R&S®NGT3600 系列专为追求供电能力、灵活性和精度的高要求测试环境而设计,单台紧凑型设备可提供一个或两个完全独立的 1800 W 输出通道。每个通道可输出最高 80 V 的电压或 50 A 的电流,结合先进的自动量程架构以及 QuickArb、EasyRamp 和远端回读等智能功能,能够测试从大电流电机驱动到航空电子系统在内的各类设备。4.3" 触摸屏、内置数据记录功能、操作直观,加快工作流程,减少设置错误。无论是用于研发实验室还是自动化测试系统,R&S®NGT3600 都能让您自信掌控全局,进一步优化设计。

特性和优点

4.3" 高分辨率触摸屏

直观操作,一触即控

高分辨率大触摸屏确保操作快捷简单。通过菜单导航、调整设置并使用虚拟键盘快速输入数值。主页屏幕清楚展示所有通道,选择任意通道即可查看详细的状态信息,包括统计数据、保护状态和正在启用的特殊功能。

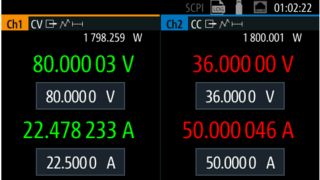

主页屏幕
显示更多详细信息

主页屏幕

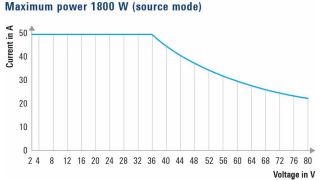

自动量程

全功率,灵活输出

FlexPower 功能可充分发挥每个通道的性能,在多个电压和电流组合中提供最高 1800 W 输出功率。与传统的单量程电源不同,FlexPower 可根据负载需求进行调整,提供低电压大电流或高电压小电流输出,始终最大化可用功率。

自动量程
显示更多详细信息

自动量程

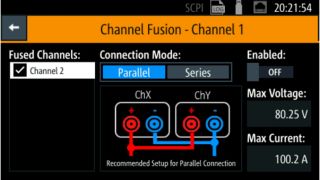

通道融合

功率翻倍,应用更广

通道融合功能允许将 R&S®NGT3622 的两个输出串联以获得更高的电压,或并联以增加电流。该功能非常适合单通道无法满足需求的应用,让您能够根据项目需求灵活扩展电源,同时不会影响精度与控制。

通道融合菜单
显示更多详细信息

通道融合菜单

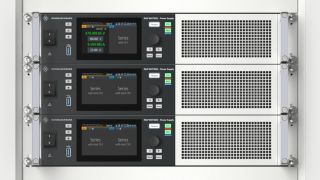

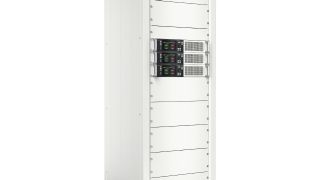

多设备模式

可扩展功率,性能同步

多设备模式可以将多台 R&S®NGT3600 电源的最多六个输出串联或并联。任意通道都可以作为主通道,其余通道作为从通道,所有通道在集中控制下同步运行。该模式非常适合高要求应用,无论是构建高压串联输出还是驱动大电流负载,都能扩展您的供电能力。

多设备模式
显示更多详细信息

多设备模式

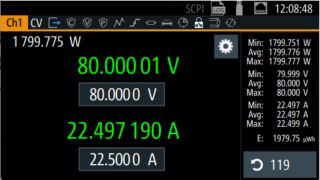

内置测量

高分辨率监测

每个输出通道均内置电压表和电流表,在 80 V 和 50 A 的完整输出范围内,可提供分辨率高达 1 mV 和 100 µA 的读数。内置统计功能显示功率、电压、电流和功耗的最小值、最大值和平均值,简化了测试配置,无需额外使用外部仪器。

显示更多详细信息

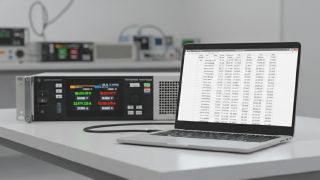

数据记录

跟踪和分析电源性能

数据记录是进行长期监测、检查测试设置和复现测试条件的关键。R&S®NGT3600 电源可同时记录所有输出通道的电压和电流测量值,捕捉随时间变化的详细供电特性。带有时间戳的数据可轻松导出为 .CSV 文件以进行全面分析、报告和归档。

显示更多详细信息

任意波形

模拟真实的电源工况

任意波功能可用于生成随时间变化的电压和电流序列,驻留时间低至 1 ms。在设计初期模拟真实的供电条件和系统行为,或者注入受控的电源变化对被测设备进行应力测试,以验证其稳健性和响应能力。

可用型号
