主要特点
- 专为射频功率可追溯性应用而设计
- 模拟无源传感器设计,可轻松替代微量热计应用中的传统热敏电阻座
- 专用热电功率探测器芯片,线性度更高
- 优异的射频特性
- 适用于国家计量机构、认证校准实验室和工业用户
主要特点
R&S®NTS 系列热电偶功率传感器专为射频功率测量标准而设计。R&S®NTS 系列采用无源、纯模拟设计,可用作基于微量热计的主测量标准器或者辅测量标准器或传递标准器。专为 NTS 设计的专用热电探测器芯片支持计量级射频-直流替代测量。
R&S®NTS 系列提供多种型号,频率范围为 DC 至 170 GHz。
多种 NTS 型号配备同轴和波导射频连接器。所有型号都具有 +20 dBm 的最大输入功率、快速稳定时间和极其平坦的频率响应。
适用于国家计量机构 (NMI) 和认证校准实验室的射频主/辅标准器解决方案
精密测量在工业质检和高质量工业生产中至关重要。相应仪器必须根据国际质量管理体系标准 (DIN EN ISO 9000) 以及产品责任和环境保护要求进行校准。只有使用经过校准的仪器(其校准可追溯至国家标准)进行测试,才能保证结果的可靠性。
国家计量机构处于校准体系的顶层,会使用主测量标准器进行替代测量,将射频功率追溯至等效的国际单位,即直流功率。测量在微量热计内部进行,以尽可能保证测量精度。
下一级是认证校准实验室。这些校准实验室使用的参考标准器由国家计量机构进行了校准。
在所有此类应用场景中,用户可以使用已有的、校准可追溯的直流纳伏表产品测量替代的直流功率。
校准体系
现代热电功率探测器芯片彻底改变了可追溯性流程
参考标准器必须无源,并采用热敏电阻或类似技术。然而,近几十年来热敏电阻座已不再被用于工业射频功率测量,也未得到进一步的技术发展。尽管热敏电阻座具有良好的长期稳定性,因此仍被国家计量机构使用,但可用的全功能样品却越来越少。它们也不支持新频段。随着业内涌现出新一代技术,以前的功率标准器已经过时,有缺陷的标准器也无法再进行更换。
R&S®NTS 采用先进的热电功率探测器芯片,是一款高性能替代方案。NTS 能够轻松代替热敏电阻座。NTS 体积小巧,无需底座即可安装在任何微量热计中,并且可以直接连接到已有的直流纳伏表。替代测量的工作流程与热敏电阻的测量流程类似,但性能更佳。最后可借助用于直接对比测量的专用 R&S 应用程序完成替代。
R&S®NTS 射频功率标准器不仅是全新组件,而且比热敏电阻标准器更加耐用先进。其体积小巧,并运用无源测量方法,是旧式热敏电阻的理想替代品。它们不仅可以替代传统标准器,还支持新频段和射频连接器,从而为 6G 等当前和未来无线通信标准中所用新频段的商业化提供助力。

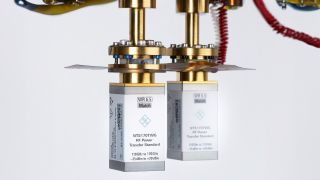

两个 R&S®NTS170TWG 安装在微量热计实验设置中以根据直流替代原理进行可追溯校准。向有源传感器提供高频信号,无源传感器则作为参考。毫开尔文级差分温度测量采用热电堆来测定有效的功率传感器效率。© 德国联邦物理技术研究院
基于成熟的 R&S®NRP 技术,实现热敏电阻技术飞跃
射频功率溯源是一种模拟测量,始终存在一定误差。具备卓越射频性能的测量设备可最大程度地降低这种测量不确定度。
这正是 R&S®NTS 热电功率探测器芯片的价值所在。该技术在 20 多年前最先应用于 R&S®NRP 射频功率传感器,并在长期实践中不断改进,可靠性和稳定性已得到充分验证。
R&S®NTS 采用先进的传感器技术,能够满足射频替代测量的最高精度要求。它具备出色的匹配性能和平坦的频率响应,确保测量简单可靠。该技术还
在完整的宽动态范围内实现较高的最大额定功率。
传感器内部有两个对称的射频和直流加热器,实现了近乎完美的射频-直流替代。
传感器设计经过优化,确保替代测量的高线性度,同时将 R&S®NTS 探测点对校准因子的影响降低至 ppm/mW 水平。
R&S®NTS 传感器采用 4 线加热器连接以用于电流源和电压控制,从而准确测量替代的直流功率。
NTS 内部的直流线路经优化后具有低阻抗,可最大程度地减少传感器外部的加热损耗。
R&S®NTS 设备配备额外的内部温度传感器,可辅助进行校正。即使是最微小的温度影响也能得到补偿,从而将不确定度降至最低,并优化微量热计的稳定时间。
R&S®NTS 热电功率探测器芯片
热电功率探测器芯片提升校准效率,缩短校准周期
测量点越多,所需时间越长,成本也就越高。R&S®NTS 利用热敏电阻中热电功率探测器芯片的关键性能特性,革新了校准工作流程。平坦的频率响应减少了所需的测量点数量,同时保持校准精度。高灵敏度增强了输出信号,由此降低了噪声,并缩短了测量时间。最后,由于稳定时间非常短,进一步减少了每个校准点所需的测量时间。
频率响应曲线:NTS 与同类产品
产品组合的频率范围为 DC 至 170 GHz

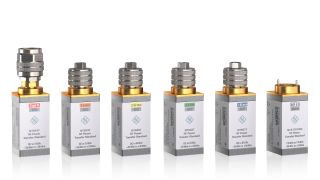

R&S®NTS 系列射频功率传递标准器目前提供 5 种同轴型号,频率范围为 DC 至 67 GHz,包括 N 型、3.5mm、2.92mm、2.4mm 和 1.85mm 射频连接器。

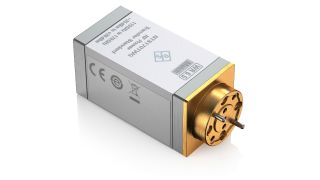

为了获得卓越精度,用户(尤其是国家计量机构)倾向于使用频率高达 18 GHz 及以上的波导连接器。NTS170TWG 配备 WR 6.5 波导连接器,早已覆盖 110 GHz 至 170 GHz 的 D 频段。
R&S®NTS 修改射频反射系数后,也可用作特定连接器类型的开路、短路和失配标准器。该特殊变体可用于确定微量热计校正系数。
所有 R&S®NTS 型号均配备推挽式连接器,确保连接安全、体积小巧、热质量低。
使用 1-Wire® 单总线协议识别设备(校准模式下为无源)是一个可选功能,有助于自动进行校准。

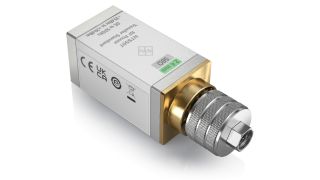

R&S®NTSxT(WG) 系列射频功率传递标准器
R&S®NTS 单机确保射频可追溯性和校准精度
射频功率传感器和信号发生器等各种射频测量设备都必须定期校准以保证符合射频规格。
R&S®NTS 的工具满足射频功率可追溯性要求,可以校准射频测量设备的幅度。用户不再需要依赖射频幅度校准提供商的服务,例如认证校准实验室或测试与测量设备制造商。
除了 R&S®NRPC 校准解决方案、R&S®NRP 射频功率传感器和各种射频信号发生器之外,罗德与施瓦茨还提供全系列设备,覆盖整个校准体系的可追溯射频校准。
R&S®NTS 射频功率标准器确保符合校准金字塔体系
