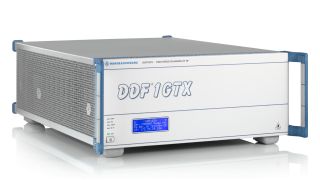

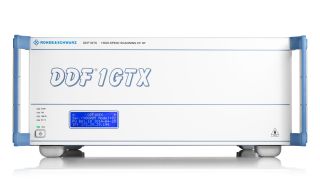

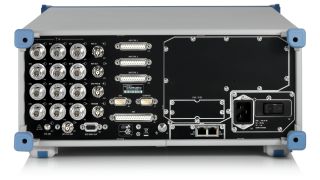

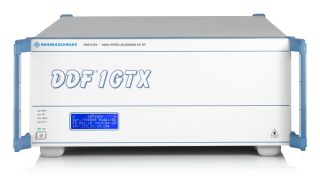

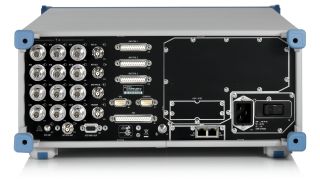

R&S®DDF1GTX High Speed Scanning HF Direction Finder, Front view R&S®DDF1GTX High Speed Scanning HF Direction Finder, Front view R&S®DDF1GTX High Speed Scanning HF Direction Finder, Side view R&S®DDF1GTX High Speed Scanning HF Direction Finder, Back view

主要特点

  • N 通道架构实现极为快速的测向测量速度
  • 频率范围介于 300 kHz 至 30 MHz
  • 最高 30 MHz 实时带宽
  • 宽带超分辨率作为选件提供
  • 专门用于配合使用 R&S®ADD011SRX 超分辨率高频测向天线

极为快速、准确的测向

R&S®DDF1GTX 高速扫描高频测向机可在整个高频范围内对所有信号进行并行测向,确保一流的扫描速度以及出色的测向精度、灵敏度和抗反射性能。可选的超分辨率测向方法与可选的波束成形1) 相结合,使测向机非常适用于复杂的信号场景。
1) 可根据请求提供


特性和优点

扫描速度和 POI

一流的扫描速度和截获率

  • N 通道架构包含 9 个相干接收通道
  • 30 MHz 实时带宽
  • 只需一个测试步骤,即可在整个高频范围内对所有信号进行并行测量

检测灵敏度

非凡的检测灵敏度

  • 数字信号处理使用高位深度,实现极低的数字固有噪声
  • 极高的可调通道分辨率

短时信号

准确可靠的短时信号定位

  • 同步多个 R&S®DDF1GTX 以用于时间同步测向扫描模式
  • 集成式 GPS 模块用作高精度时间和频率参考
  • 可选预分类器,用于检测低截获率信号并汇总各个测向结果

宽带超分辨率

  • 共道信号测向
  • 可选宽带超分辨率
  • 最佳性能

信号分析

并行执行信号分析和测向

  • 输出 I/Q 数据以使用 R&S®CA120 进行并行信号分析;

可用型號

可用型號
型号
描述

R&S®DDF1GTX

订单号码 4200.0008.02

描述
高速扫描高频测向机,配有交流电源(频率范围为 8 kHz 至 30 MHz,可提供30 MHz实时带宽)

可用选项

软件选件
产品
描述
R&S®DDFGTX-SR

订单号码 4200.3607.02

描述

超分辨率

共道信号测向

R&S®DDFGTX-IM

订单号码 4200.3688.02

描述

ITU 测量

符合 ITU 建议书的信号测量

R&S®DDFGTX-TS

订单号码 4200.3620.02

描述

时间同步

三角网时间同步

R&S®DDFGTX-CU

订单号码 4200.4026.02

描述

适应客户自定义的高频测向天线

使用排列成圆形阵列的所选非罗德与施瓦茨相关干涉仪高频测向天线进行操作

测向天线
产品
描述

订单号码 4200.5000.05

描述

N 通道超分辨率高频测向天线

300 kHz 至 30 MHz;水平、垂直和圆极化;固定;可切换天线单元;圆形阵列,直径为 100 m

订单号码 4200.5000.15

描述

N 通道超分辨率高频测向天线

300 kHz 至 30 MHz;水平、垂直和圆极化;固定;可切换天线单元;圆形阵列,直径为 50 m 和 150 m

订单号码 4200.5000.25

描述

N 通道超分辨率高频测向天线

300 kHz 至 30 MHz;水平、垂直和圆极化;固定;可切换天线单元;圆形阵列,直径为 50 m

测向天线电缆组件
产品
描述
R&S®DDFNC-1

订单号码 4101.4006.02

描述

N-channel antenna cable set

length: 2 m

R&S®DDFNC-1

订单号码 4101.4006.05

描述

N-channel antenna cable set

length: 5 m

R&S®DDFNC-1

订单号码 4101.4006.30

描述

N-channel antenna cable set

length: 30 m

R&S®DDFNC-1

订单号码 4101.4006.15

描述

N-channel antenna cable set

length: 150 m

R&S®DDFNC-1

订单号码 4101.4006.25

描述

用于 R&S®DDF1GTX 的 N 通道天线电缆组件;

length: 250 m
