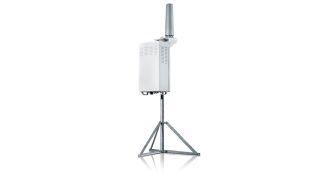

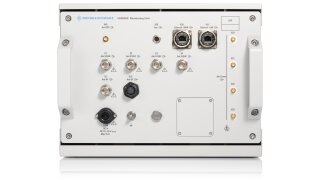

R&S®UMS300 Compact monitoring and location system, Front view
R&S®UMS300 Compact monitoring and location system, Front view
打开灯箱
R&S®UMS300 紧凑型监测和定位系统

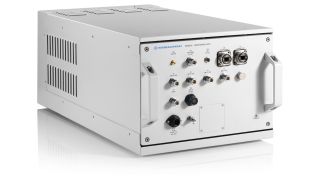

R&S®UMS300 Compact monitoring and location system, Side view
R&S®UMS300 Compact monitoring and location system, Side view
打开灯箱
R&S®UMS300 紧凑型监测和定位系统

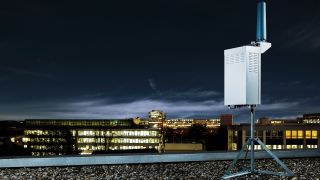

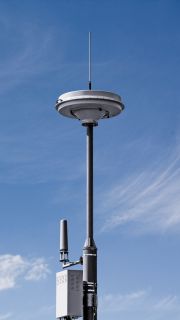

R&S®UMS300 Compact monitoring and location system, Application Image
R&S®UMS300 Compact monitoring and location system, Application Image
打开灯箱
R&S®UMS300 紧凑型监测和定位系统

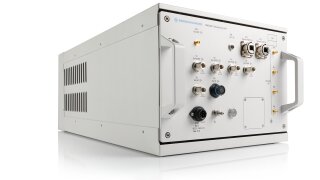

R&S®UMS300 Compact monitoring and location system, 3D
R&S®UMS300 Compact monitoring and location system, 3D
打开灯箱
R&S®UMS300 Compact monitoring and location system, Front view R&S®UMS300 Compact monitoring and location system, Side view R&S®UMS300 Compact monitoring and location system, Application Image R&S®UMS300 Compact monitoring and location system, 3D

主要特点

  • 紧凑小巧的室外外壳中集成完善的监测和无线电定位系统
  • 符合 ITU 标准的监测
  • 基于标准测向 (AoA)、TDOA 和两种混合技术的发射机定位
获取报价

符合 ITU 的监测和无线电定位系统

紧凑，室外，多功能

R&S®UMS300 紧凑型室外解决方案率先整合符合 ITU 的监测、传统的到达角 (AoA) 测向和用于测量到达时间差 (TDOA) 的发射机定位。基础设施要求极低，确保非常灵活地选择站点。

快速链接

特性和优点

高性能接收机

  • 9 kHz 至 6 GHz 宽频率范围（测向频率范围为 300 kHz 至 6 GHz）
  • 涵盖整个频率范围的快速扫描，最高可达 12 GHz/s
  • 中频频谱和解调高达 20 MHz
  • 实时带宽内多通道数字下变频器信号提取
  • 集成式 GPS，提供高精度时间戳以用于 TDOA 应用
  • 一流的测向精度，实现快速、可靠的测向
  • 符合所有适用的 ITU 要求和建议书

AoA、TDOA 和两种混合技术

  • 即使在恶劣环境（如反射率高达 50% 的城区）也能获得可靠的测向结果
  • 使用带有源/无源切换的水平和/或垂直极化测向天线
  • 用于 TDOA 网络中的发射机定位
  • 与任何其他支持 TDOA 的罗德与施瓦茨设备和系统组合使用
  • 结合 AoA 和 TDOA 的优点
  • 针对特定应用灵活选择合适的方法
  • 针对两种方法同时使用相同的硬件

灵活的站点选择

  • 安装在靠近天线的天线杆上；无需利用其他建筑结构
  • 通过 LAN 和移动无线电网络远程控制
  • 灵活的电源（交流电和直流电）
  • 紧凑设计

可用型號

可用型號
型号
描述
R&S®UMS300

R&S®UMS300

订单号码 3051.7701.04

描述
Compact monitoring and radiolocation system (frequency range from 20 MHz to 3.6 GHz and 20 MHz real-time bandwidth)
获取报价

可用选项

硬件选件
产品
描述
R&S®UMS30-HF

订单号码 3051.9885.02

描述

高频频率范围扩展

Extension of frequency range to 8 kHz for monitoring and 300 kHz for direction finding

R&S®UMS30-B1

订单号码 3051.7801.02

描述

开关 1，共 2 个

R&S®UMS30-B2

订单号码 3051.7818.02

描述

开关 1，共 4 个

R&S®UMS30-B3

订单号码 3051.7824.02

描述

开关 1，共 2 个，用于快速切换

R&S®UMS30-B4

订单号码 3051.7830.02

描述

直流馈电，DC 至 8 GHz

R&S®MSD-DCF

订单号码 3046.5004.02

描述

直流馈电，为一个 8 kHz 至 8 GHz 的外部天线供电

需要 R&S®MSD-SM8/26 选件

R&S®UMS30-B5

订单号码 3051.7847.02

描述

无线模块 GSM/3G/4G

软件选件
产品
描述
R&S®UMS30-FE

订单号码 3051.9827.02

描述

超高频频率范围扩展

Extension of frequency range to 6 GHz for monitoring and DF

R&S®UMS30-PS

订单号码 3051.9810.02

描述

全景扫描

Fast spectrum/monitoring scan over the entire frequency range

R&S®UMS30-IM

订单号码 3051.9804.02

描述

ITU 测量

符合 ITU 建议书的信号测量

R&S®UMS30-SL

订单号码 3051.9879.02

描述

选择性呼叫选件

Decoding/demodulation of various selective call methods and pagers

R&S®UMS30-DDC

订单号码 3051.9840.02

描述

数字下变频器

Three additional digital downconverters within the real-time bandwidth

R&S®UMS30-DF

订单号码 3051.9833.02

描述

测向机升级套件

Direction finding for a selected signal in the real-time bandwidth

R&S®UMS30-WDF

订单号码 3051.9862.02

描述

宽带测向

实时带宽内所有信号的并行测向

R&S®UMS30-COR

订单号码 3051.9856.02

描述

测向误差校正

Support of look-up table DF error correction; calibration service not included

测向天线
产品
描述
R&S®ADD075

订单号码 4069.6603.13

描述

UHF/SHF DF antenna

1.3 GHz to 8.2 GHz; vertical polarization; for installation on a vehicle roof, tripod or mast; passive antenna elements

R&S®ADD095

订单号码 4109.0000.02

描述

宽孔径甚高频测向天线

20 MHz 至 450 MHz；垂直极化；用于安装在天线杆上；有源天线单元，带有源-无源开关

R&S®ADD107

订单号码 4090.7005.07

描述

Compact VHF/UHF DF antenna

20 MHz to 1.3 GHz; vertical polarization; for installation on a vehicle roof or tripod; active antenna elements

R&S®ADD119

订单号码 4053.6509.04

描述

Mobile HF DF antenna

300 kHz to 30 MHz; vertical polarization; for installation on a vehicle roof or tripod

R&S®ADD196

订单号码 4077.3000.14

描述

VHF/UHF DF antenna

20 MHz to 1.3 GHz; vertical polarization; for installation on a vehicle roof, tripod or mast

R&S®ADD197

订单号码 4068.1450.12

描述

双极化甚高频/特高频测向天线

20 MHz 至 1.3 GHz；垂直和水平极化（40 MHz 至 1.3 GHz）；用于安装在车顶、三脚架或天线杆上

R&S®ADD207

订单号码 4096.0002.07

描述

Compact UHF/SHF DF antenna

600 MHz to 6 GHz; vertical polarization; for installation on a vehicle roof or tripod; passive antenna elements

R&S®ADD207P

订单号码 4096.0002.17

描述

Compact passive UHF/SHF DF antenna

600 MHz to 6 GHz; vertical polarization; for installation on a vehicle roof or tripod; entirely passive from 600 MHz to 2.9 GHz

R&S®ADD295

订单号码 4070.9002.14

描述

Wideband VHF/UHF DF antenna

20 MHz to 3 GHz; vertical polarization; for installation on a vehicle roof, tripod or mast; active antenna elements with active-passive switch (20 MHz to 1.3 GHz)

R&S®ADD307

订单号码 4098.2002.07

描述

可折叠甚高频/特高频测向天线

20 MHz 至 690 MHz；垂直极化；用于安装在三脚架或便携式天线杆上；有源天线单元

R&S®ADD317

订单号码 4113.5002.08

描述

VHF/UHF DF antenna

20 MHz to 690 MHz; vertical polarization; for installation on a mast

R&S®ADD597

订单号码 4111.4009.02

描述

测向和监测天线

适用于单通道测向机的集成式高性能天线系统，频率范围介于 20 MHz 至 8.5 GHz（垂直极化）

附件
产品
描述
R&S®UMS30-H1

订单号码 3051.7799.02

描述

外部交流电源

外部电源适配器，适用于 R&S®UMS300 和 R&S®UMS400；100 至 240 VAC 输入，24 VDC 输出，最大 320 W

R&S®UMS30-H3

订单号码 3059.7700.02

描述

室外测向控制功分器

工作温度范围为 -30°C 至 +65°C

R&S®UMS30-H4

订单号码 3059.8007.02

描述

室外放大器

频率范围为 20 MHz 至 8 GHz，工作温度范围为 -30°C 至 +65°C

电源
产品
描述
R&S®UMS30-H1

订单号码 3051.7799.02

描述

外部交流电源

外部电源适配器，适用于 R&S®UMS300 和 R&S®UMS400；100 至 240 VAC 输入，24 VDC 输出，最大 320 W

其他
产品
描述
R&S®UMS30-H2

订单号码 3051.7782.05

描述

测向控制电缆，5 m

Length: 5 m

R&S®UMS30-H2

订单号码 3051.7782.10

描述

测向控制电缆

长度：10 m

R&S®UMS30-H3

订单号码 3059.7700.02

描述

室外测向控制功分器

工作温度范围为 -30°C 至 +65°C

R&S®UMS30-H4

订单号码 3059.8007.02

描述

室外放大器

频率范围为 20 MHz 至 8 GHz，工作温度范围为 -30°C 至 +65°C

控制软件
产品
描述
R&S®UMS30-SWB

订单号码 3052.0000.61

描述

R&S®ARGUS 6.1 监测软件（基础包）

Includes basic module, audio recording and replay, and drivers for the receiver and switch

R&S®UMS30-SWE

订单号码 3052.0017.61

描述

R&S®ARGUS 6.1 监测软件（扩展包）

Includes driver for one direction finder
