主要特点

  • 检测、分析和定位 8 kHz 至 8 GHz 范围内的信号,最高可扩展至 33 GHz
  • 125 MHz 实时带宽
  • 超过 500 GHz/s 的超快全景扫描速度
  • 支持四个非连续分段频谱扫描
  • 基于相关干涉仪 (CI) 的单通道测向,精度可达到 1° 以内

高性能宽带高速监测接收机。

R&S®PR300 是一款宽带、高速监测和单通道测向接收机。该接收机能够可靠检测 8 kHz 至 8 GHz 范围内的信号。R&S®HE400DC 和 R&S®HE800-DC30 选件可将接收机的频率范围分别扩展至 20 GHz 和 33 GHz。该接收机配合 R&S®ADDx07 测向天线,可支持单通道测向,测向精度可达到 1° 以内。扫描速度超过 500 GHz/s,可实现超越实时带宽的快速信号检测。精心设计的接收机架构与技术能够应对日益复杂的频谱相关任务,例如监测、检测、干扰查找(包括无意和恶意干扰)、测向以及定位等应用。

特性和优点

性能优越

专家设计

R&S®PR300 增强了数字信号处理性能,可用于实时无缝的信号捕获、测向和处理应用。接收机采用先进的手持式设计,兼具当下频谱监测传感器的特性与功能。

R&S®PR300 的数字信号处理简图
显示更多详细信息

R&S®PR300 的数字信号处理简图

R&S®PR300 采用双通道数字下变频器 (DDC) 设计,可实现同步监测和不间断解调。


提供多种工具

多种工具可用于频谱监测、测向和分析

  • 在零跨度模式下同步进行时域和频域分析
  • 时间门选通频谱可用于时分双工 (TDD) 网络中的干扰捕获
  • 地图测绘功能支持三角测量和电平测绘
  • 提供多种记录和回放模式
  • 手动和自动测向
  • 根据 ITU 建议书分析模拟信号

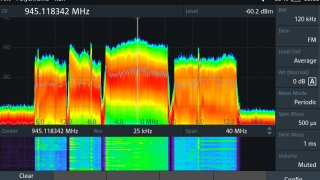

彩色瀑布图显示
显示更多详细信息

彩色瀑布图显示

彩色显示功能可显示在其他情况下不可见的隐藏信号


分段扫描

监测非连续频段

R&S®PR300 最多可提供 4 个频谱分段,可用于监测非连续频段。用户能够持续关注感兴趣的频段。

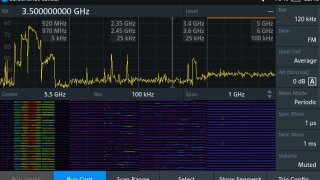

四个频谱分段支持不同的频率范围、跨度和分辨率
显示更多详细信息

四个频谱分段支持不同的频率范围、跨度和分辨率

频谱监视

采用专用扫描架构,实现加速频谱特征分析

R&S®PR300 灵活敏捷,能够成功进行频谱扫描。该接收机支持全景扫描 (PSCAN)、水平扫描 (HSCAN)、频率扫描 (FSCAN) 和内存扫描 (MSCAN) 等多种扫描模式,并配备各种触发选件,可灵活适用于频谱监测应用。

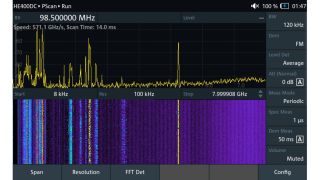

超快速全景扫描涵盖整个工作频率范围
显示更多详细信息

超快速全景扫描涵盖整个工作频率范围

高级时域分析

在频域和时域中同时显示信号

R&S®PR300-ZS 时域测量选件的实时带宽高达 125 MHz,可在频域和时域中同时显示信号。时间门控频谱功能可分离同一频谱中来自不同发射机的频率信号。例如在 TDD 网络中,即使上行链路和下行链路信号共享同一频率,也可以对其进行分离。

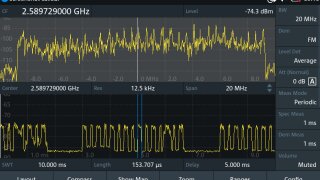

同步显示时域数据和对应的时间门控频谱
显示更多详细信息

同步显示时域数据和对应的时间门控频谱
