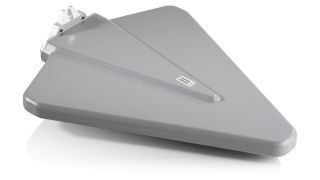

R&S®HL040E 对数周期宽带天线

适用于室内外宽带发射和接收

R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱
R&S®HL040E 对数周期宽带天线
打开灯箱

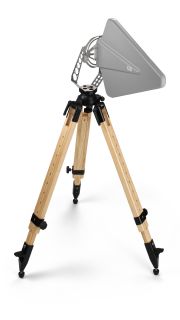

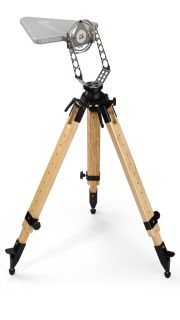

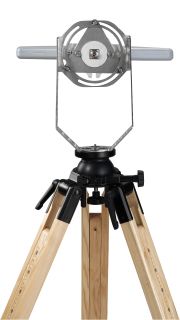

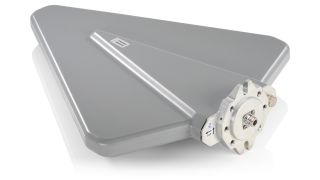

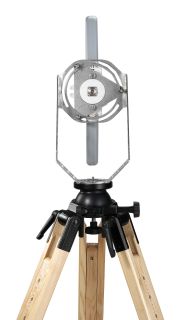

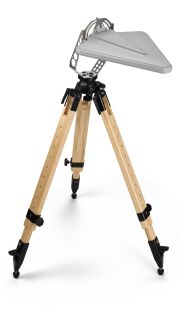

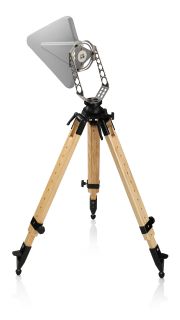

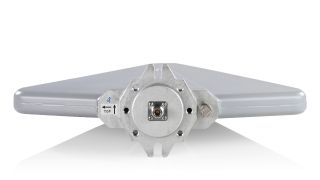

R&S®HL040E 顶视图 R&S®HL040E 后/侧视图 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,垂直极化 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,水平极化 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,水平极化 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,垂直极化 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,垂直极化 R&S®HL040E 安装在 R&S®HZ-1 木制三脚架上,水平极化 R&S®HL040E 后视图

主要特点

  • 宽频率范围
  • 适用于敏感度和发射测量
  • 在频率范围内提供稳定的辐射方向图
  • 低交叉极化
  • 坚固设计

适用于室内外宽带发射和接收

线性极化的 R&S®HL040E 对数周期宽带天线可在 400 MHz 至 6 GHz 的频率范围内进行宽带发射和接收。天线采用精密构造和可选的单独校准,适合场强和 EMI 测量。天线具有良好的额定功率和匹配特性 (VSWR),可用于需要 10 V/m 或更高场强的 EMS 测量。

特性和优点

宽频率范围

只需单个天线即可覆盖整个频率范围

天线覆盖 400 MHz 至 6 GHz 的宽频率范围。只需单个天线即可覆盖整个频率范围,显著减少了测量时间和总测量成本。

宽带发射和接收

适用于 EMI 和 EMS 测量

天线采用精密构造和可选的单独校准,适合场强和 EMI 测量。天线具有良好的额定功率和匹配特性 (VSWR),可用于需要 10 V/m 或更高场强的 EMS 测量。

低交叉极化

提供可靠结果

R&S®HL040E 采用先进设计,确保交叉极化极低。这样能够进行准确的电场矢量空间测量,从而提供更加可靠的结果。

坚固构造

支持固定和移动应用

天线采用坚固的高精度构造设计,能够承受极为恶劣的环境条件。因此,天线非常适用于多种固定和移动应用。

可用型号

可用型号
型号
频率范围
应用

R&S®HL040E

频率范围
400 MHz - 6 GHz
应用
用于测量应用(含校准)

R&S®HL040E

频率范围
400 MHz - 6 GHz
应用
用于监测应用(无校准)

可用选项

通用附件
产品
描述
描述

木制三脚架

R&S®HL025Z1
描述

适用于 R&S®HZ-1 的适配器
