R&S®HL050 对数周期天线


R&S®HL050 对数周期天线

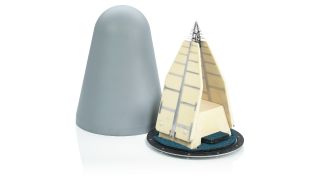

移除天线罩的 R&S®HL050 视图


  • 极宽的频率范围
  • 呈旋转对称的辐射方向图
  • 因天线元件使用 V 形结构,所以具有高增益
  • 可用作 R&S®AC008 微波定向天线的馈源
  • 根据 ANSI C63.5 和 CISPR 16-1-6 进行独立校准


R&S®HL050 对数周期定向天线的频率范围介于 850 MHz 至 26.5 GHz,非常适合无线电监测和测量任务。天线可用作独立天线,或用作 R&S®AC008 微波定向天线的馈源。由于辐射方向图几乎呈旋转对称,因此用作反射器天线的馈源时,天线具有一流的二次辐射特性。




天线覆盖 850 MHz 至 26.5 GHz 的宽频率范围,非常适合无线电监测和测量任务。



天线设计精密,天线元件使用 V 形结构,可在整个频率范围内实现恒定的高增益,支持测量微弱信号。



天线采用优化设计,辐射方向图几乎呈旋转对称。因此,R&S®HL050 用作反射器天线的馈源时,具有一流的二次辐射特性。

可用作 R&S®AC008 的馈电天线


天线可用作独立天线,或用作 R&S®AC008 微波定向天线的馈源。R&S®HL050 对数周期天线采用堆叠式设计,确保辐照均匀,非常适合用作抛物面反射器的馈源。



微波电缆,长度:5 m

微波电缆,5 m,1 GHz 至 26.5 GHz,2 x SMA 插头连接器


微波电缆,长度:10 m

微波电缆,10 m,1 GHz 至 26.5 GHz,2 x SMA 插头连接器


适用于 R&S®HZ-1 的适配器
