主要特点

  • Trigger and decode of 100BASE-T1/BroadR-Reach® and 1000BASE-T1 automotive Ethernet buses
  • Colour coded bus display with details down to ternary symbols
  • Full decode table with all details
  • Powerful trigger and search capability
  • 波形捕获率高达 600,000 波形/秒,可快速进行眼图模板测试
  • R&S oscilloscopes | Engineered for multi-domain challenges

示波器软件选件

The R&S®RTP and R&S®RTO oscilloscope supports serial triggering and decoding of 100BASE-T1 or BroadR-Reach and 1000BASE-T1 Automotive Ethernet standards. Efficiently trigger on frame start, Idle frames, MAC frames including destination & source address, frame types and on various error conditions.

特性和优点

快速总线设置

通过应用面板在数秒内完成总线设置

通过应用面板,只需几个步骤即可配置任意特定协议。选择需要解码的总线和连接的通道,并设置正确的电平之后,就会自动开始解码。

打开灯箱

使用应用面板选择总线解码

Simultaneous decoding of both Ethernet data streams

Best fixture: R&S®RT-ZF5

The R&S®RT-ZF5 fixture allows you to decode both the forward and reverse data streams of either 100BASE-T1 or 1000BASE-T1 at the same time. You can compensate the directivity of the fixture to obtain accurate decoding results.

示波器软件选件 RTx-K57
打开灯箱

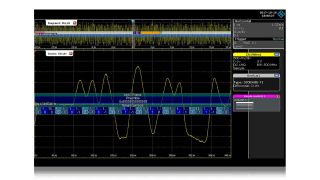

解码帧采用颜色编码

支持所有重要的解码层

解码三进制信号以及加扰、解扰或反转位

用户可以分析不同解码层上的解码总线。必须确保三进制信号直接将解码与电信号关联。用户还可以显示加扰和解扰位以进行进一步分析。

示波器软件选件 RTx-K57
打开灯箱

解码帧采用颜色编码

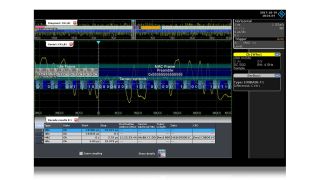

使用颜色编码的报文显示

报文以颜色编码的总线信号显示,或者在解码表中显示

用户可以将信号与颜色编码数据叠加,以便分析解码总线帧。地址和数据内容可以十六进制、二进制或 ASCII 格式显示。用户始终可以通过灵活的屏幕设置获得理想的浏览效果。协议细节也可以显示在简明表格中。根据分析需求选择合适的数据格式和解码层。

示波器软件选件 RTx-K57
打开灯箱

解码帧采用颜色编码

强大的触发功能

Strong trigger capability on frame start, idle frame, MAC frame and addresses, frame type and data and various error conditions.

The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.



示波器软件选件 RTx-K57
打开灯箱

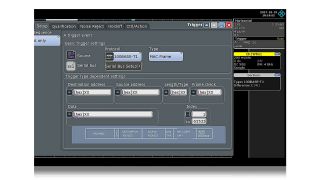

协议触发设置对话框

在采集记录中搜索和导航

强大的搜索和导航功能

全面的搜索功能让长信号序列的分析更加简单。用户可以根据不同的标准搜索波形,例如信号故障或协议内容。所有检测到的事件均显示在表格中,并带有时间戳。用户可以在缩放窗口中查看单个事件,并轻松浏览不同事件。

示波器软件选件 RTx-K57
打开灯箱

强大的搜索功能,支持长记录

可用的型号


  • 选件名称

    R&S®RTE-K57

    订单号码 1333.0615.02

    串行标准
    100Base-T1
    解码表
    触发
    标签支持
    基本单元
  • 选件名称

    R&S®RTO-K57

    订单号码 1333.0596.02

    串行标准
    100Base-T1
    解码表
    触发
    标签支持
    基本单元
  • 选件名称

    R&S®RTP-K57

    订单号码 1800.6548.02

    串行标准
    100Base-T1
    解码表
    触发
    标签支持
    基本单元
  • 选件名称

    R&S®RTO-K58

    订单号码 1801.4503.02

    串行标准
    1000Base-T1
    解码表
    触发
    标签支持
    基本单元
  • 选件名称

    R&S®RTP-K58

    订单号码 1800.6702.02

    串行标准
    1000Base-T1
    解码表
    触发
    标签支持
    基本单元

可用选项

测试夹具
产品 描述
RT-ZF5 Ethernet Probing Fixture

R&S®RT-ZF5

订单号码 1333.0896.02

描述

以太网探测夹具

(定向、链路伙伴、负载)

R&S®RT-ZF7 Automotive T&D Fixture

R&S®RT-ZF7

订单号码 1801.3688.02

描述

汽车电子触发和解码夹具

包含 2 个 SMA 适配器 RT-ZF7A 的汽车电子以太网探测夹具

了解更多

Triggering & decoding 100Base-T1 BroadR-Reach Ethernet

Triggering & decoding 100Base-T1 BroadR-Reach Ethernet

Triggering & decoding real-world OABR automotive Ethernet with an oscilloscope.

Triggering and decoding fast channel and slow channel of the SENT bus

Triggering and decoding fast channel and slow channel of the SENT bus

Discover how to decode SENT, including enhanced serial messages, displayed on an R&S®RTO.

More information

Debug CAN flexible data CAN-FD interfaces with an oscilloscope

Debug CAN flexible data CAN-FD interfaces with an oscilloscope

Discover how to debug CAN-FD, as displayed on an R&S®RTO.

More information

Symbolic decoding of a SENT bus

Symbolic decoding of a SENT bus

Discover how to set up symbolic decoding of a SENT bus, as displayed on an R&S®RTO.

More information

Decoding SENT bus with a handheld oscilloscope

Decoding SENT bus with a handheld oscilloscope

Discover how to easily deocde SENT using an R&S®RTH handheld oscilloscope.

More information

Decoding over three minutes of bus data using deep memory and ultrasegmentation

Decoding over three minutes of bus data using deep memory and ultrasegmentation

Discover how to decode bus data using deep memory and ultrasegmentation, as displayed on an R&S®RTA.

More information

Decoding CAN Flexible Data CAN-FD bus with a handheld oscilloscope

Decoding CAN Flexible Data CAN-FD bus with a handheld oscilloscope

Discover how to easily deocde CAN-FD using an R&S®RTH handheld oscilloscope.

More information

Decoding SENT bus signal

Decoding SENT bus signal

Discover how to easily deocde SENT using Rohde & Schwarz oscilloscopes, as displayed on an R&S®RTO.

More information

Serial bus decoding capability with an Oscilloscope

Serial bus decoding capability with an Oscilloscope

Discover the powerful decoding capability of Rohde & Schwarz oscilloscopes, as displayed on an R&S®RTO.

More information

Safe debugging of embedded power supplies

Debug embedded power supplies faster by triggering and decoding their I²C-based control interfaces.

More information
